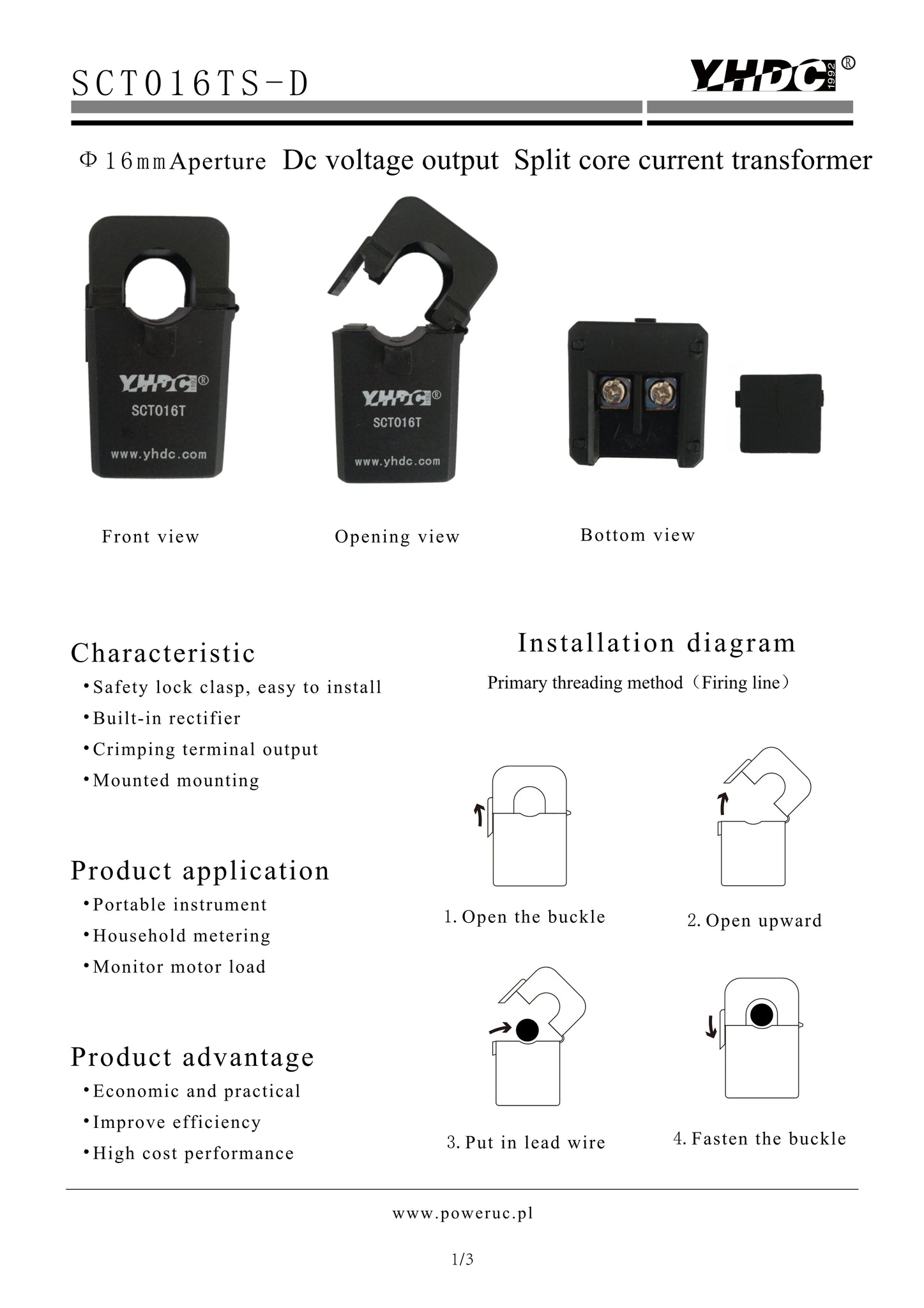

Split Core Current Transformer SCT016TS-D rated input 20A 30A 50A 80A 100A 120A 150A rated output 1V/3V/5V

Split Core Current Transformer SCT016TS-D rated input 20A 30A 50A 80A 100A 120A 150A rated output 1V/3V/5V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristic:
Hanging installation, crimping terminal output.

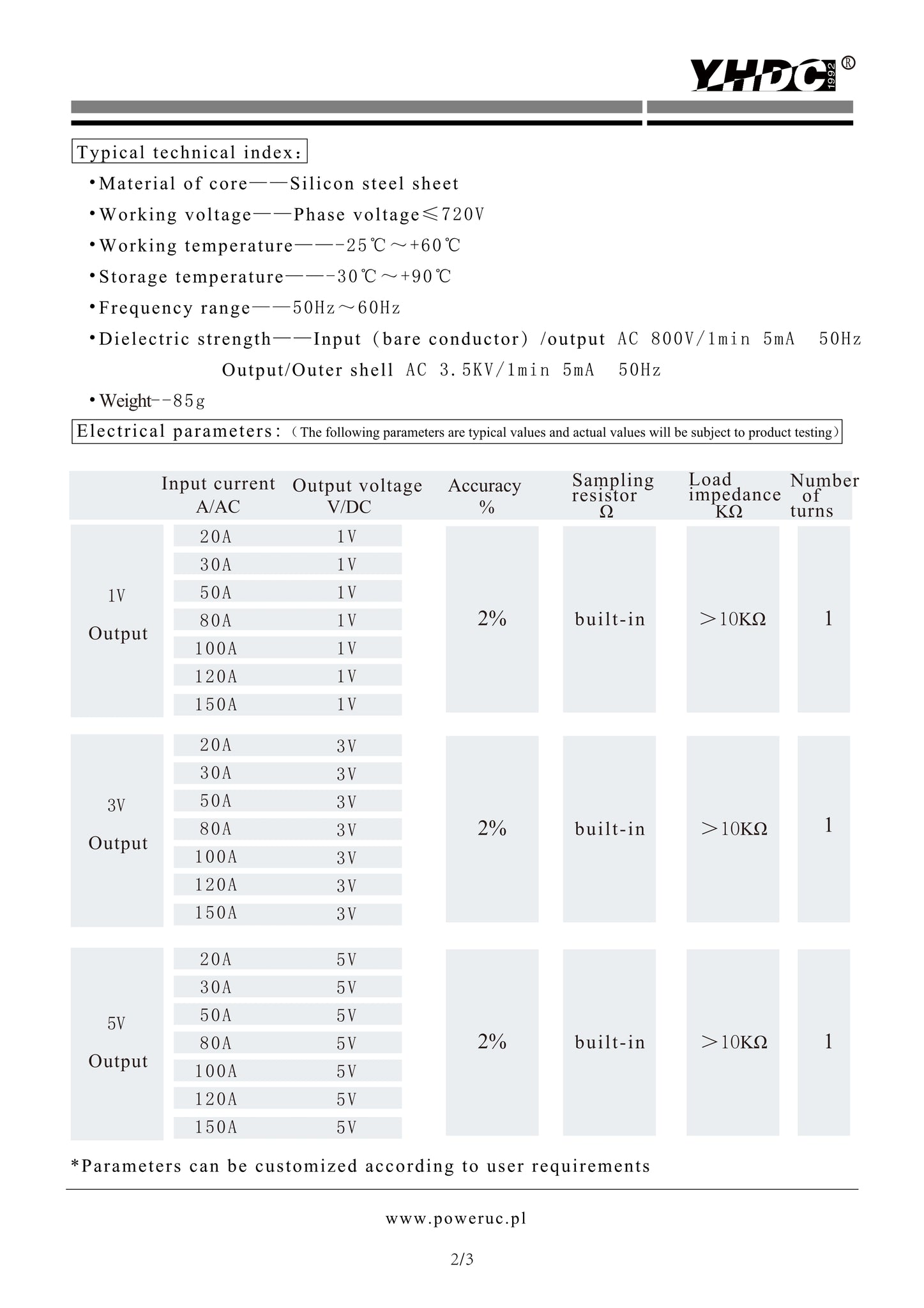

Technical Indicators:
Hanging installation, crimping terminal output
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: 720V
Work temperature: -25°C ~ +60°C
Storage temperature: -30°C ~ +90°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: 3.5KV 50Hz 1min

Electric Parameter:

DOWNLOAD
