Split Core Current Transformer SCT016T rated input 10A 30A 50A 80A 100A 120A rated output 10mA 50mA 25mA 100mA 33mA 20mA 60mA 40mA 0.333V 1V 3V 5V

PowerUC

Shipping calculated at checkout.

Quantity

Only 4 left!

Characteristic:

Safety lock buckle, easy installation, screw terminal output.

Technical Indicators:

Mounting type: Free hanging (In-Line)

Material of core: Ferrite

Applicable standards: GB20840-2014

Operating temperature: -25℃ ~ +60℃

Storage temperature: -30℃ ~ +90℃

Frequency range: 50Hz-1KHz

Dielectric strength: Input (bare conductor)/Output AC 800V/1min 50Hz

Output/housing AC 3.5KV/1min 50Hz

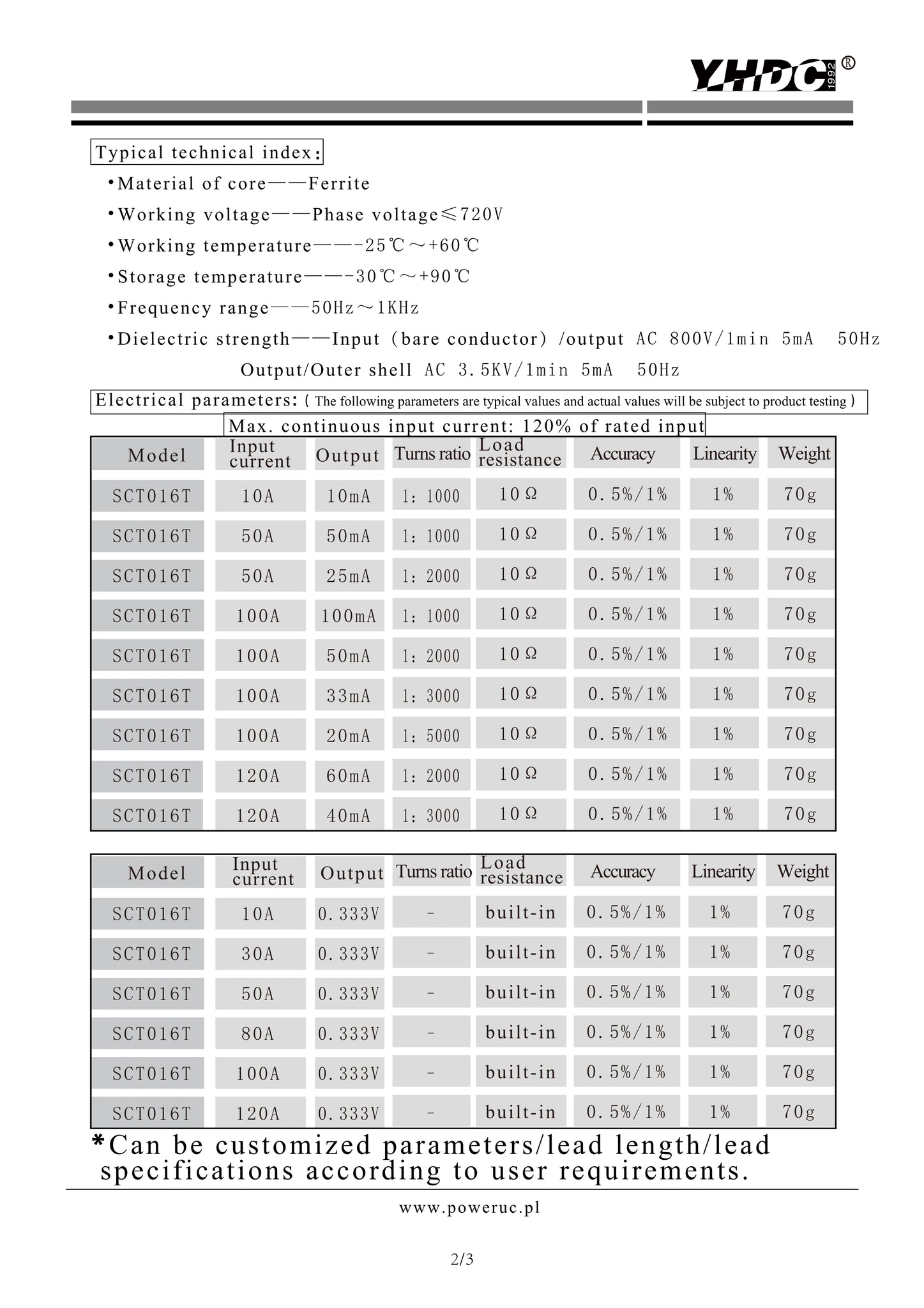

Electric Parameter:

DOWNLOAD-Current type output
