Split Core Current Transformer SCT016S rated input 50A 60A 80A 100A 120A 150A 160A 200A rated output 40mA 50mA 100mA 1A 0.333V - PowerUC

Split Core Current Transformer SCT016S rated input 50A 60A 80A 100A 120A 150A 160A 200A rated output 40mA 50mA 100mA 1A 0.333V

PowerUC

  • €5,18
    Unit price per
Shipping calculated at checkout.

Only 59 left!

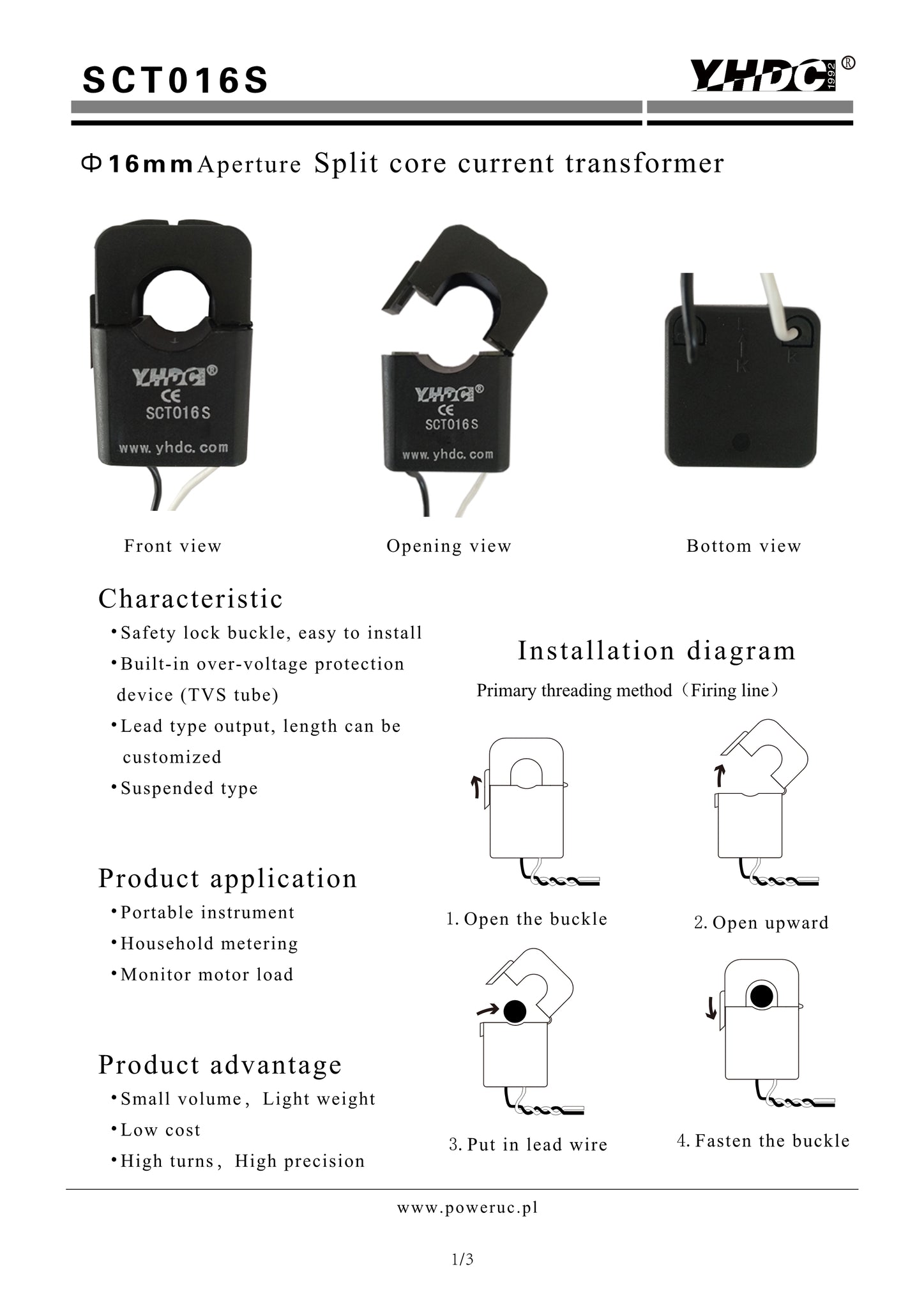

Characteristic:
Compatible to foreign products completely, built-in TVS.  Purpose: Applicable for the current measuring monitoring and protection of AC motor, lighting equipment and air compressor.

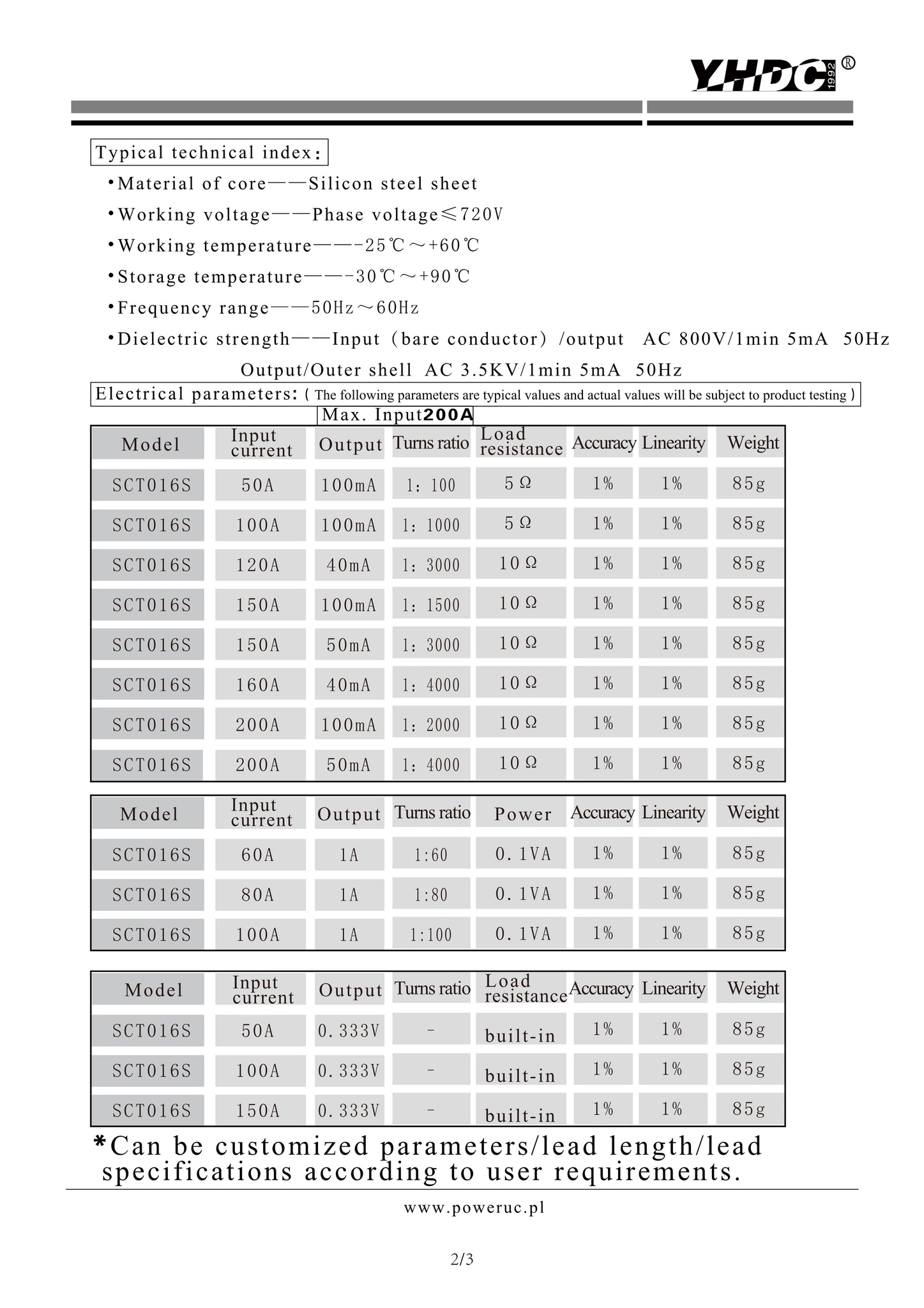

Technical Indicators:
Hanging installation, crimping terminal output
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: ≤720V
Work temperature: -25°C ~ +60°C
Storage temperature: -30°C ~ +90°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: 3.5KV 50Hz 1min

Electric Parameter:
