Split Core Current Transformer SCT016 rated input 10A 30A 50A 80A 100A 120A rated output 10mA 20mA 25mA 33mA 40mA 50mA 60mA 100mA 0.333V
Split Core Current Transformer SCT016 rated input 10A 30A 50A 80A 100A 120A rated output 10mA 20mA 25mA 33mA 40mA 50mA 60mA 100mA 0.333V - PowerUC

Split Core Current Transformer SCT016 rated input 10A 30A 50A 80A 100A 120A rated output 10mA 20mA 25mA 33mA 40mA 50mA 60mA 100mA 0.333V

PowerUC

Shipping calculated at checkout.
Only 157 left!

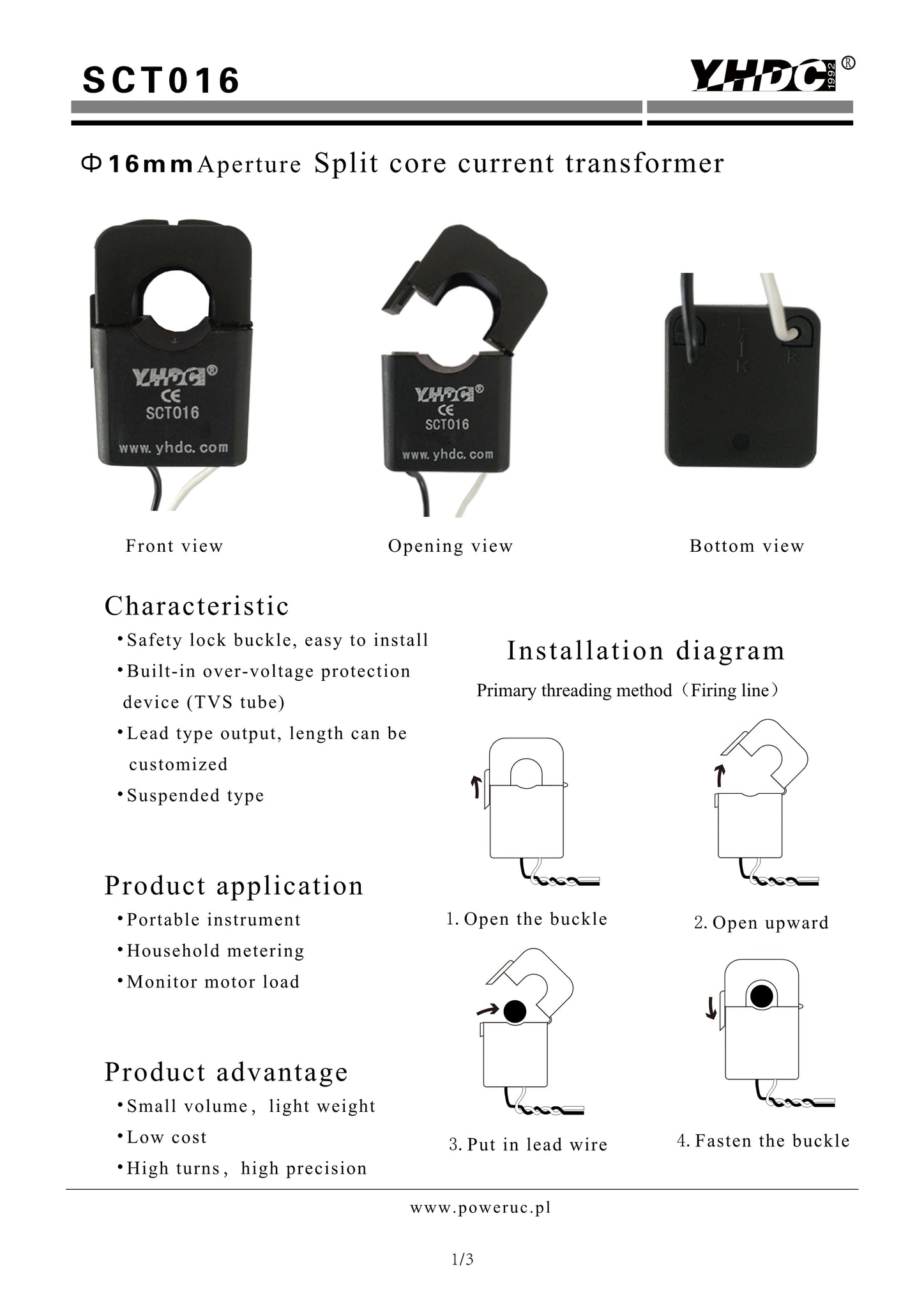

Characteristic:
Compatible to foreign products completely, built-in TVS.  Purpose: Applicable for the current measuring monitoring and protection of AC motor, lighting equipment and air compressor.

Technical Indicators:

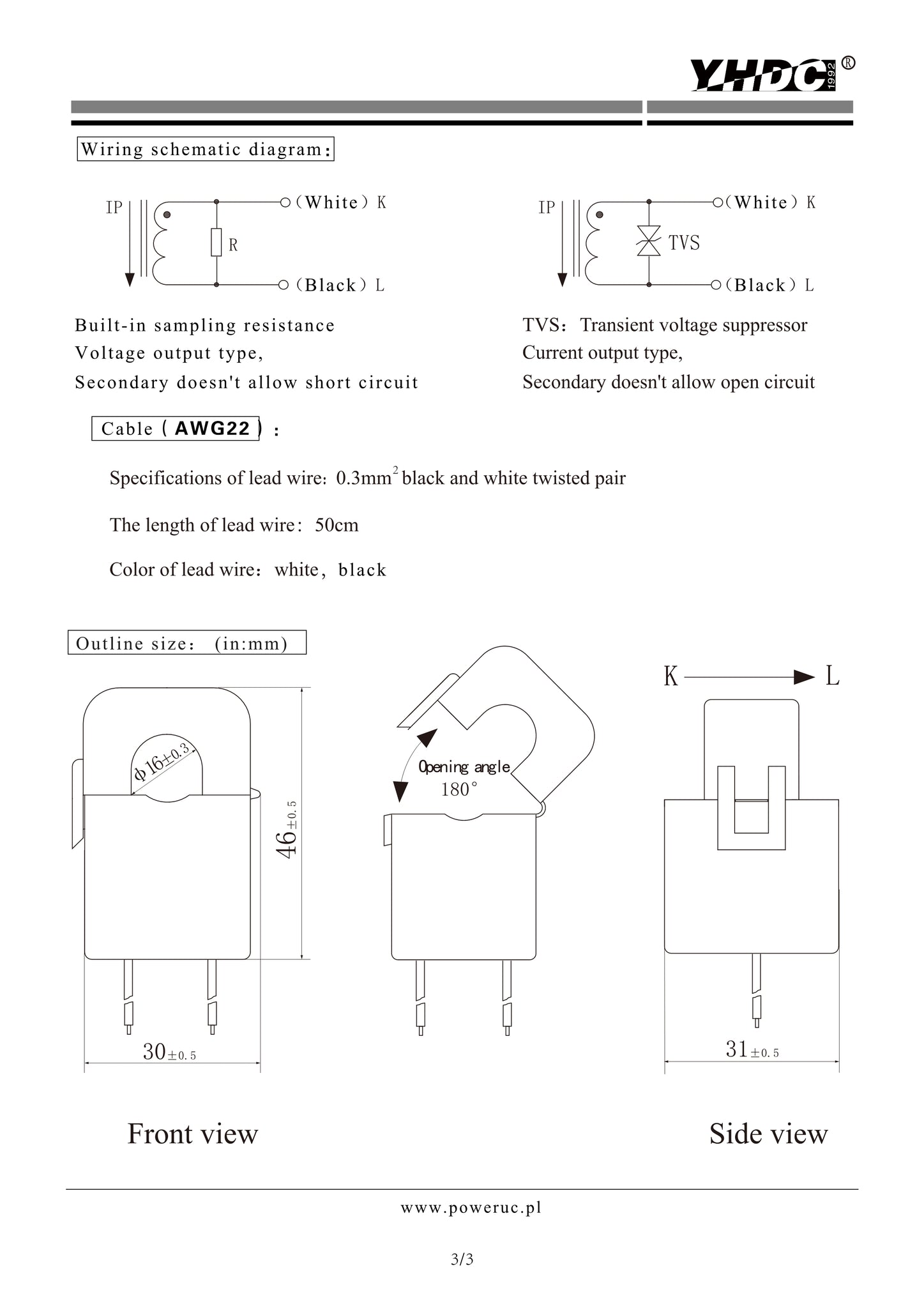

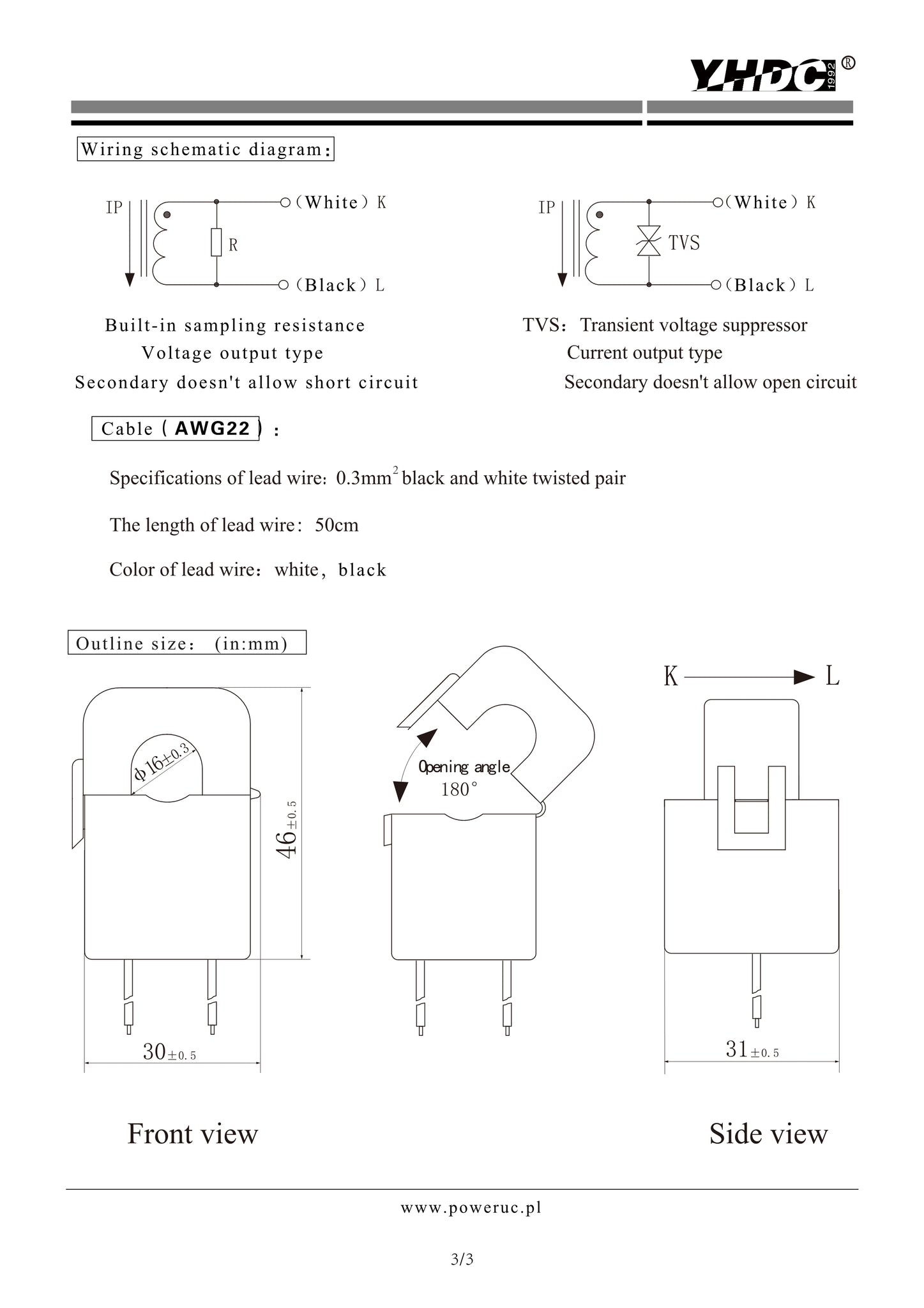

Hanging installation, leading wire 50cm
Material of core: Ferrite
Fire resistance property: UL94-V0
Work voltage: ≤720V
Work temperature: -25°C ~ +60°C
Storage temperature: -30°C ~ +90°C
Frequency range: 50Hz ~ 1KHz
Dielectric strength: 3.5KV 50Hz 1min

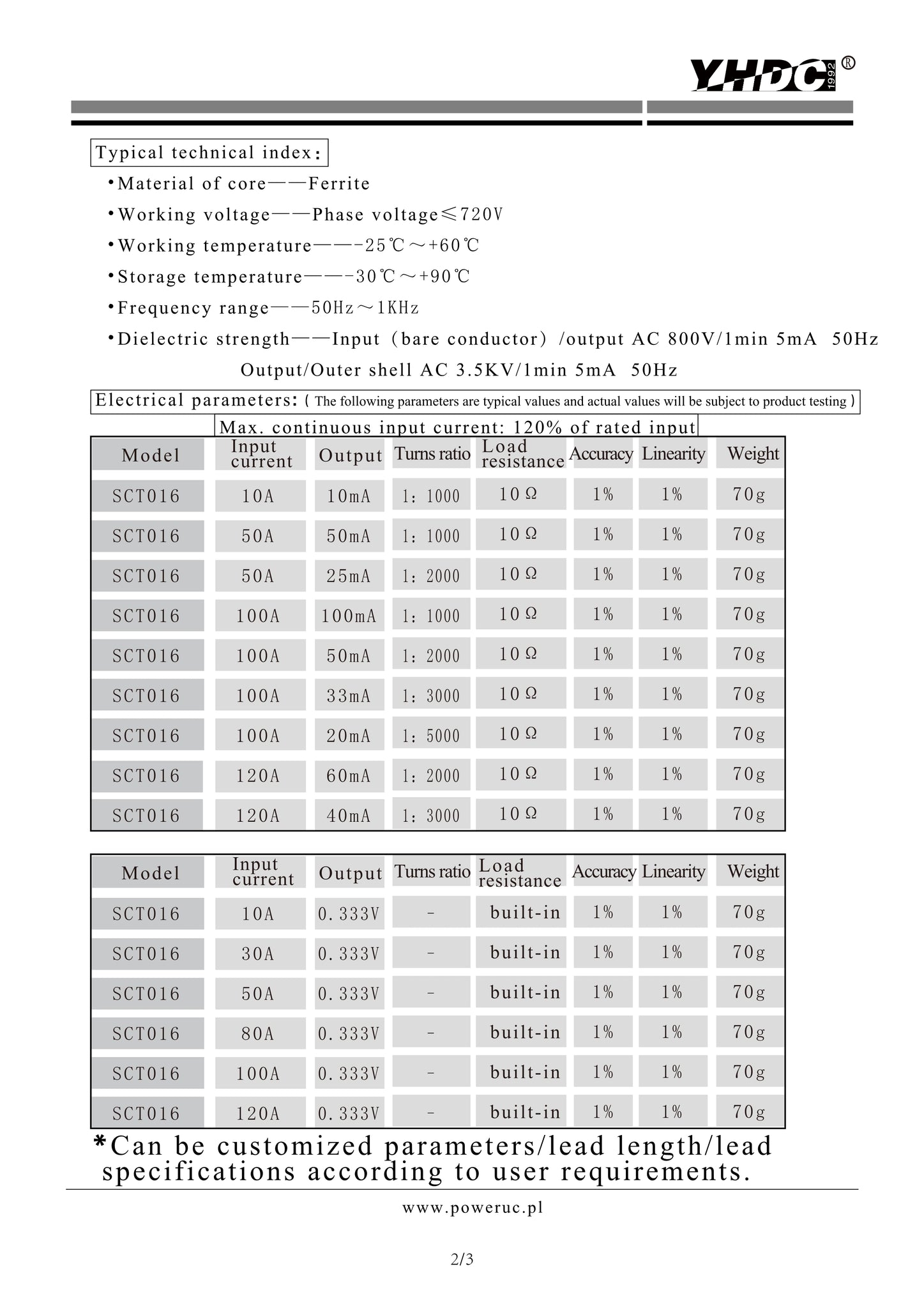

Electric Parameter:

DOWNLOAD
