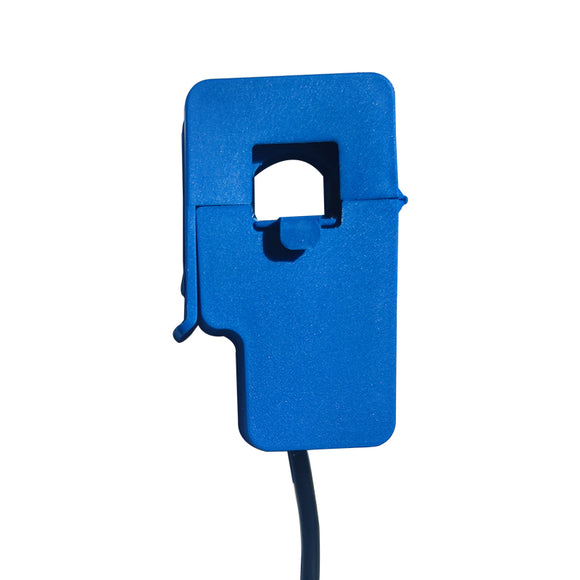

Split core current transformer SCT013G rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA/1V/0.333V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：SCT013G



Characteristics：
Split core，Built-in with sampling resistance， leading wire 1 metre, standardΦ3.5 three core plug output, (Patent No. ZL 2015 3 0060067.X）

Technical index:

Suspended mounting,output with cable

Operating temperature:-25℃～+60℃

Storage temperature:-30℃～+90℃

Work voltage:≤720V

Work Frequency :50Hz-1KHz

Dielectric strength:3.5KV 50Hz 1min

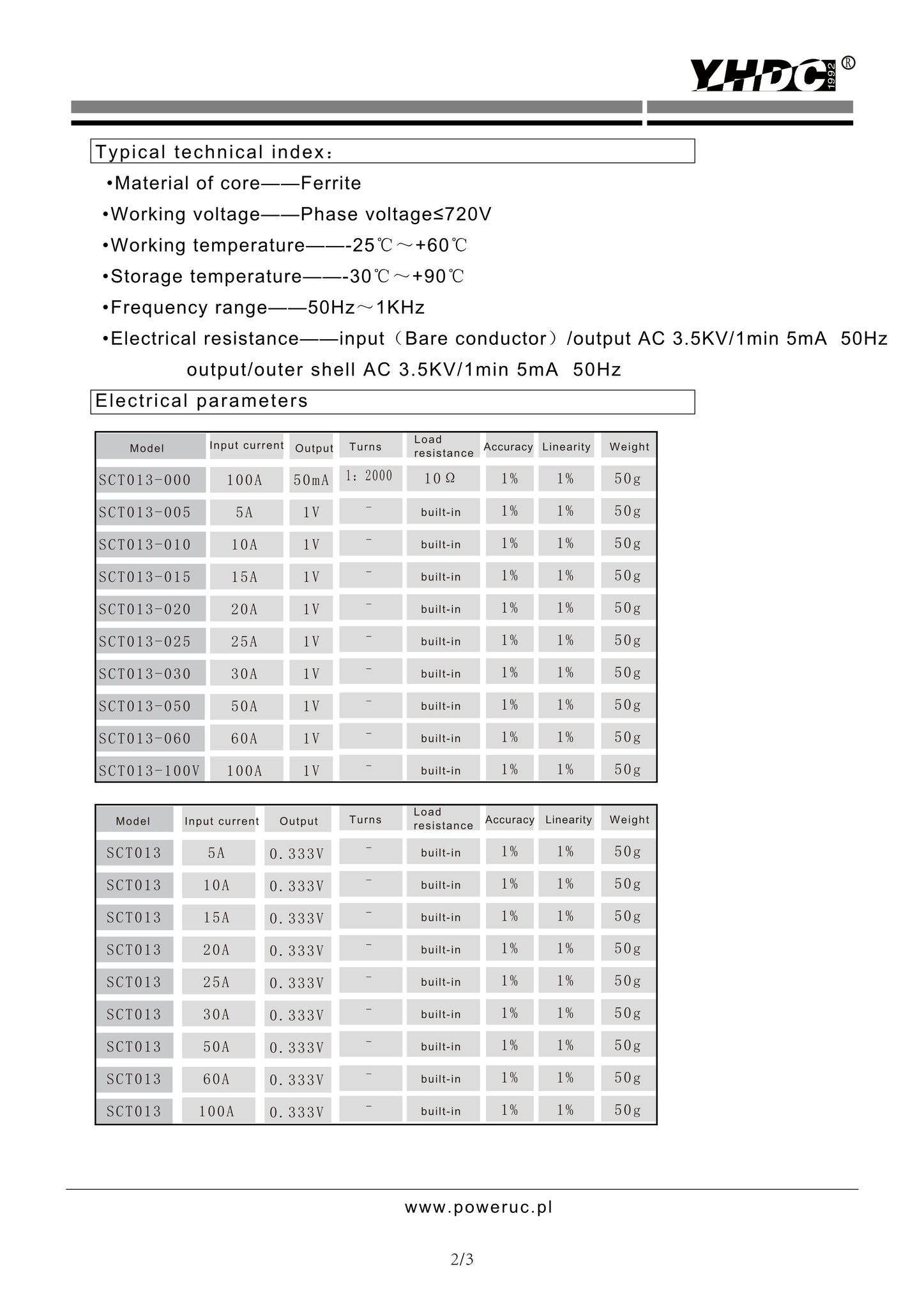

Technical Parameters table：

DOWNLOAD
