Split core current transformer SCT013-D rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 1V

Split core current transformer SCT013-D rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 1V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：SCT013-D

Characteristics：

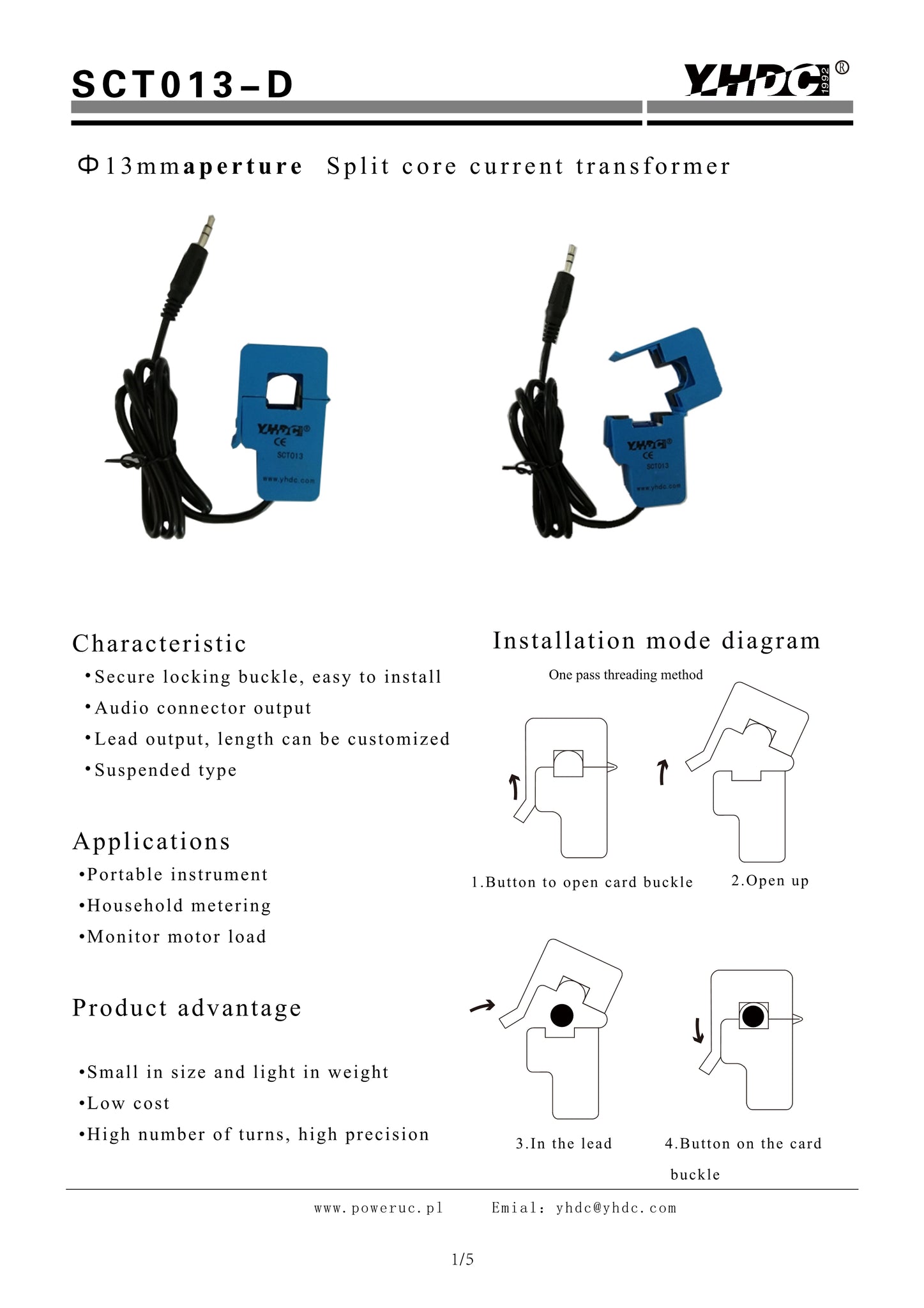

Secure locking buckle, easy to install, Audio connector output, Lead output, length can be customized, Suspended type.

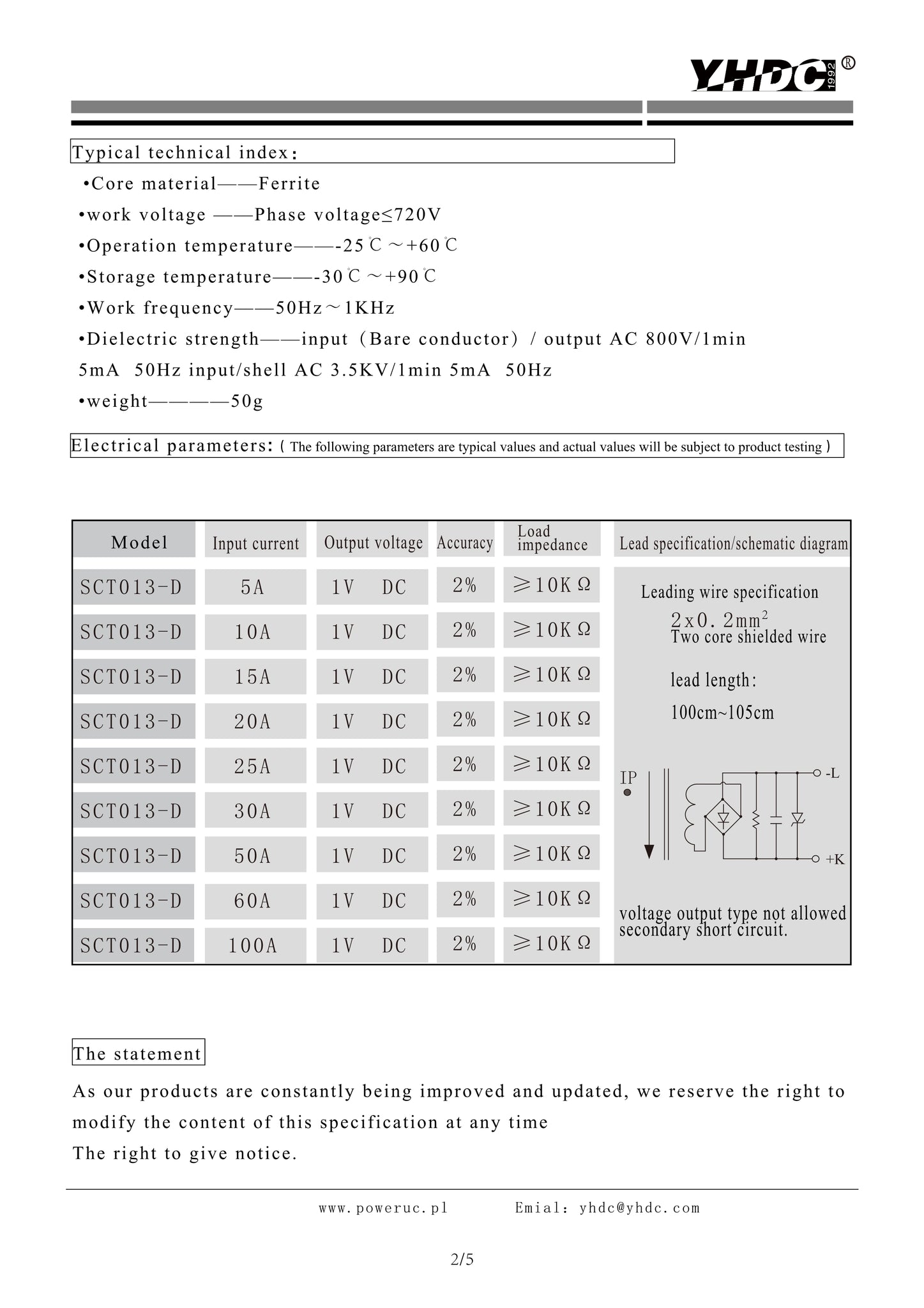

Technical index:

Suspended mounting

Operating temperature :-25℃～+60℃

Storage temperature :-30℃～+90℃

Work voltage : ≤720V

Work Frequency : 50Hz-1KHz

Dielectric strength : 3.5KV 50Hz 1min

Weight : 50g

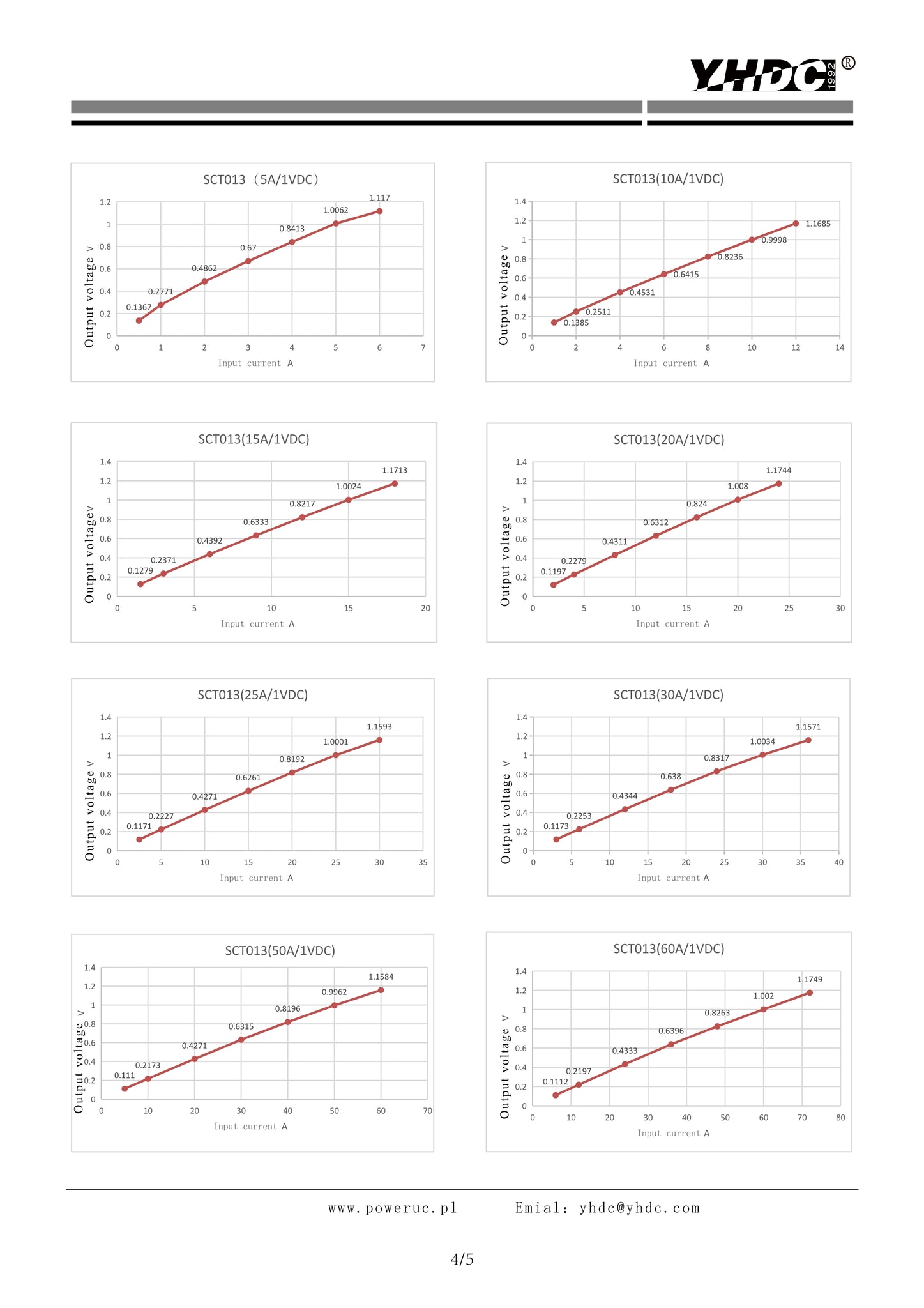

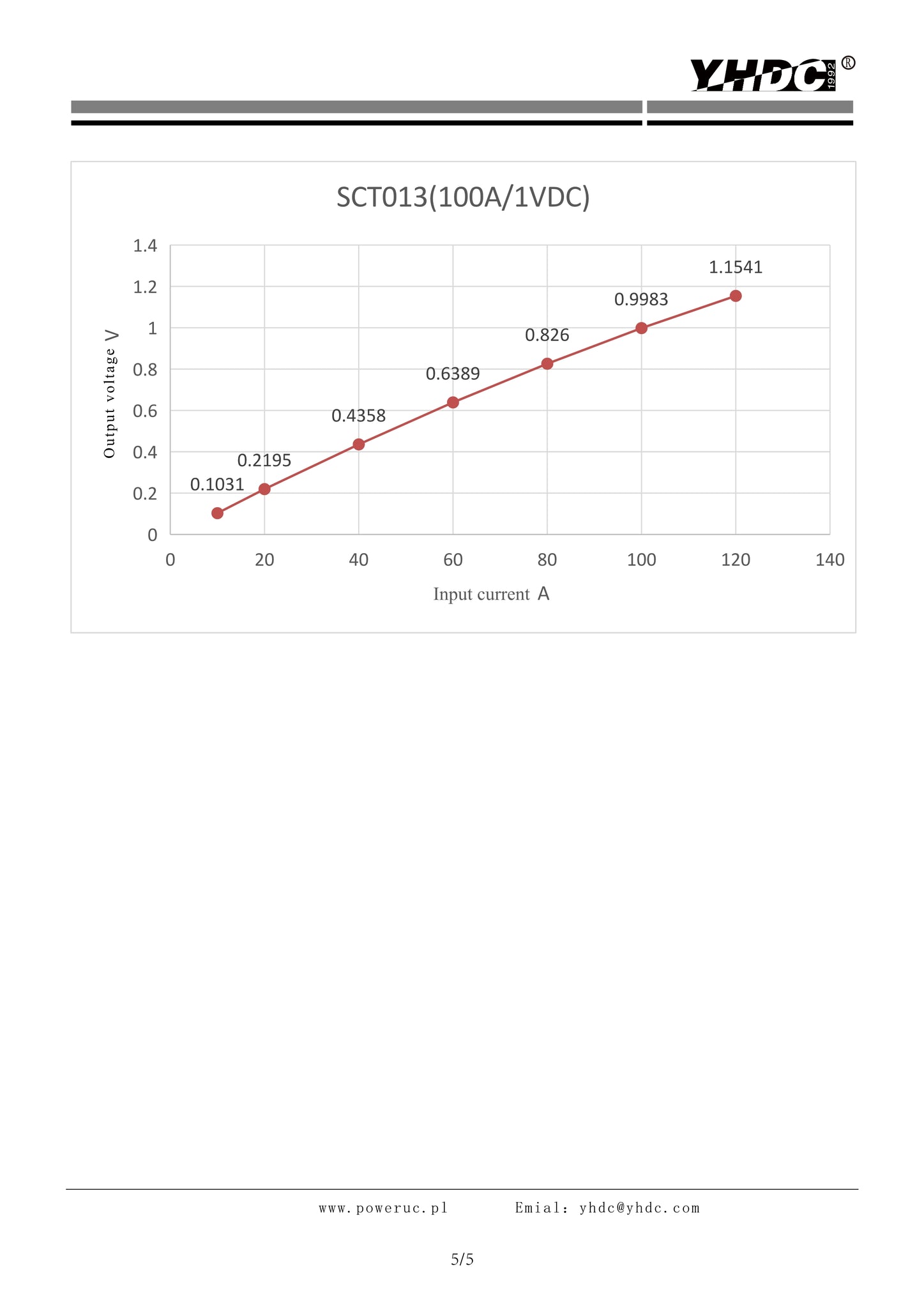

Technical Parameters table：

DOWNLOAD
