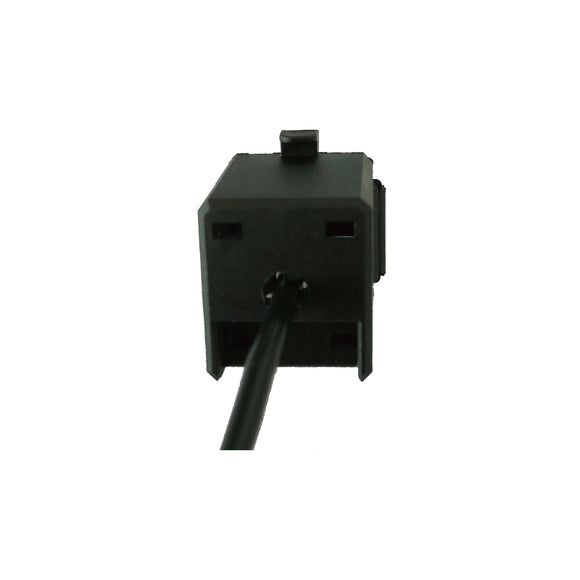

Split Core Current Transformer SCT010L rated input 10A/20A/30A/50A/60A/80A rated output 20mA/10mA/50mA/25mA/16.6mA/20mA/80mA/40mA/26.6mA/0.333V/1V/3V/5V

PowerUC

Shipping calculated at checkout.

Quantity

Only 0 left!

Will be in stock after

Model: SCT010L

Characteristics:

Safety lock buckle, easy installation, cable output.

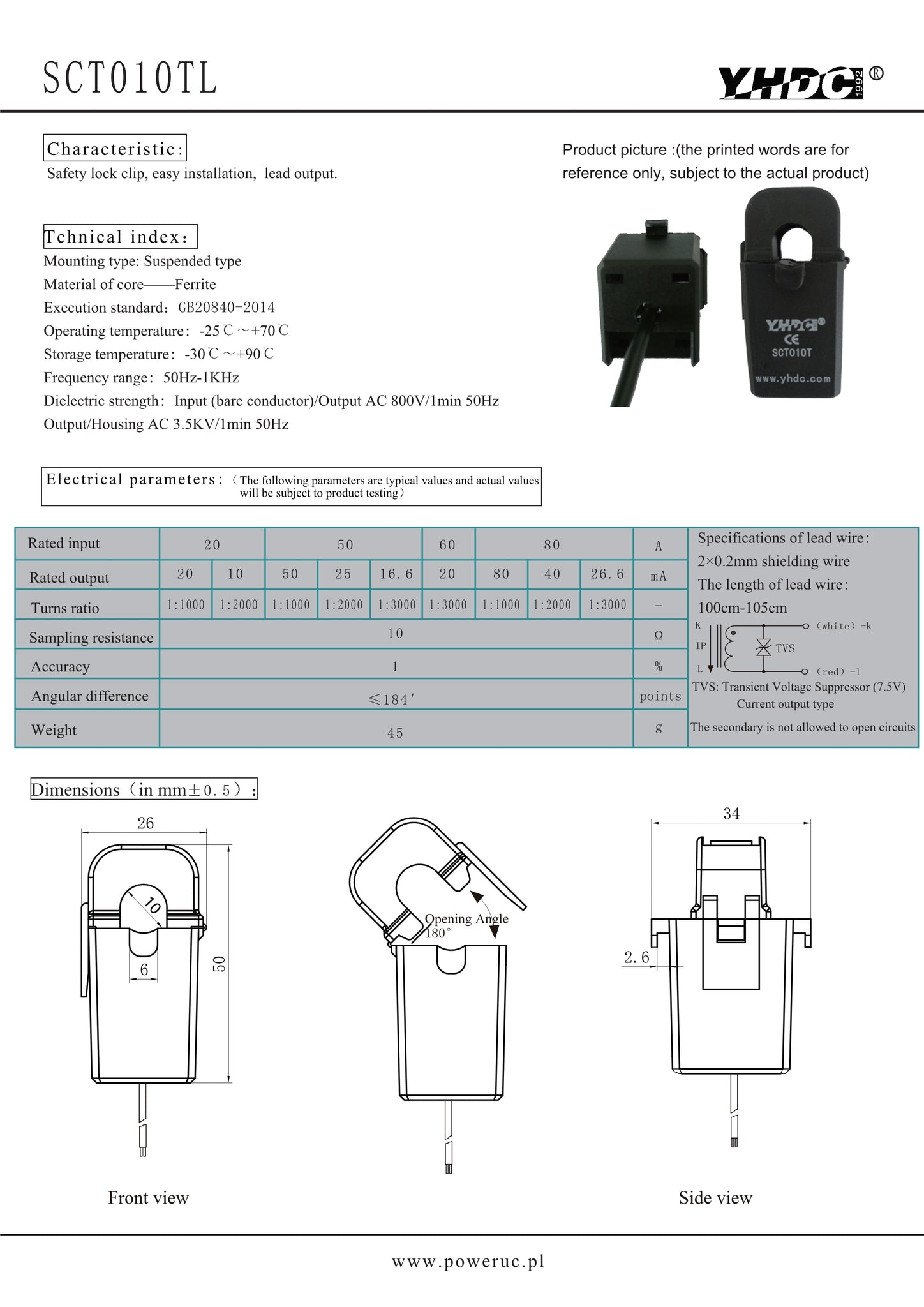

Technical indicators:

Mounting type: Free hanging (In-Line)

Material of core：Ferrite

Applicable standards：GB20840-2014

Operating temperature：-25℃～+60℃

Storage temperature：-30℃～+90℃

Frequency range：50Hz-1KHz

Waterproof grade: IP00

Dielectric strength：Input (bare conductor)/Output AC 800V/1min 50Hz

Output/HousingAC 3.5KV/1min 50Hz
