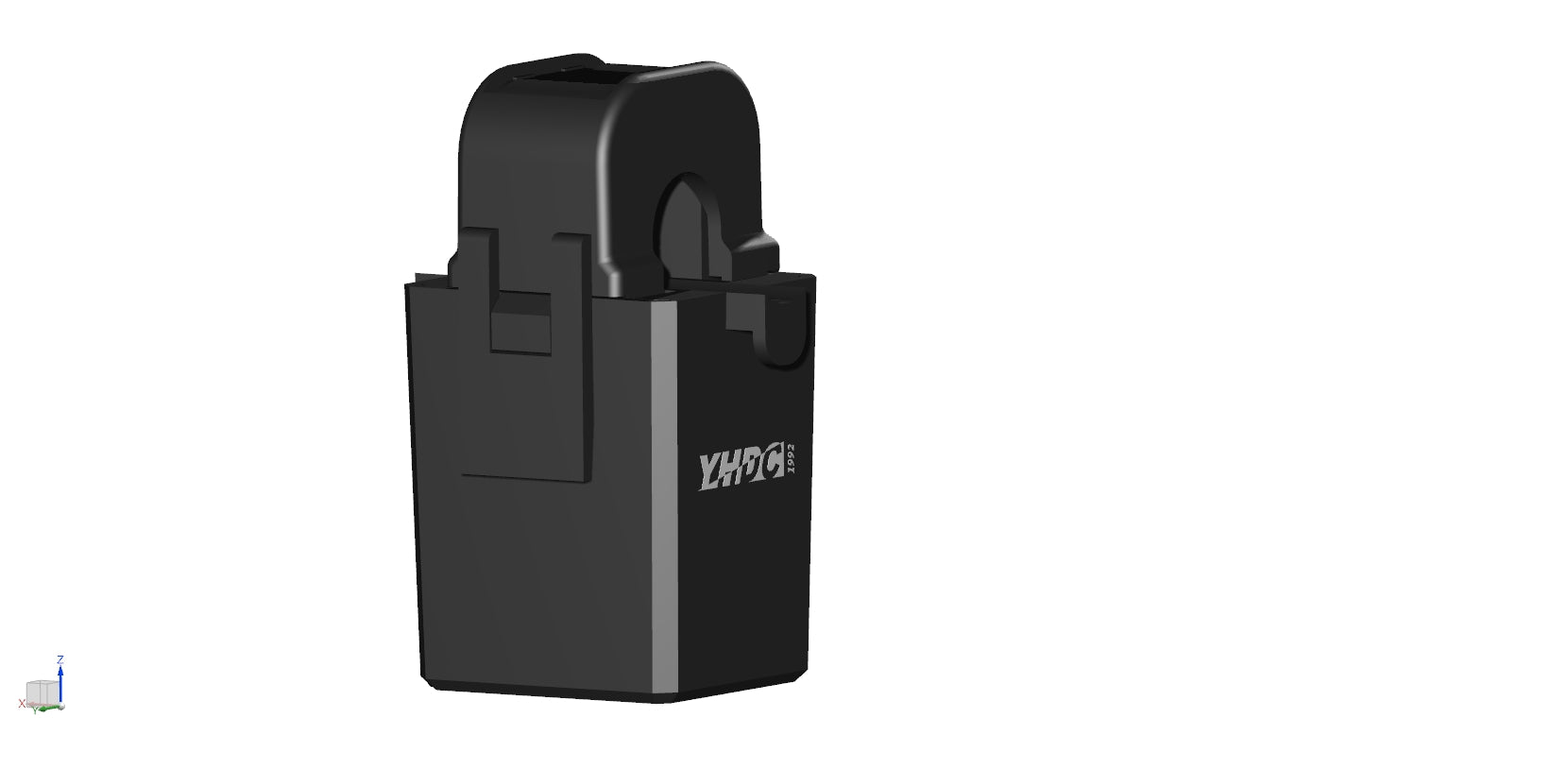

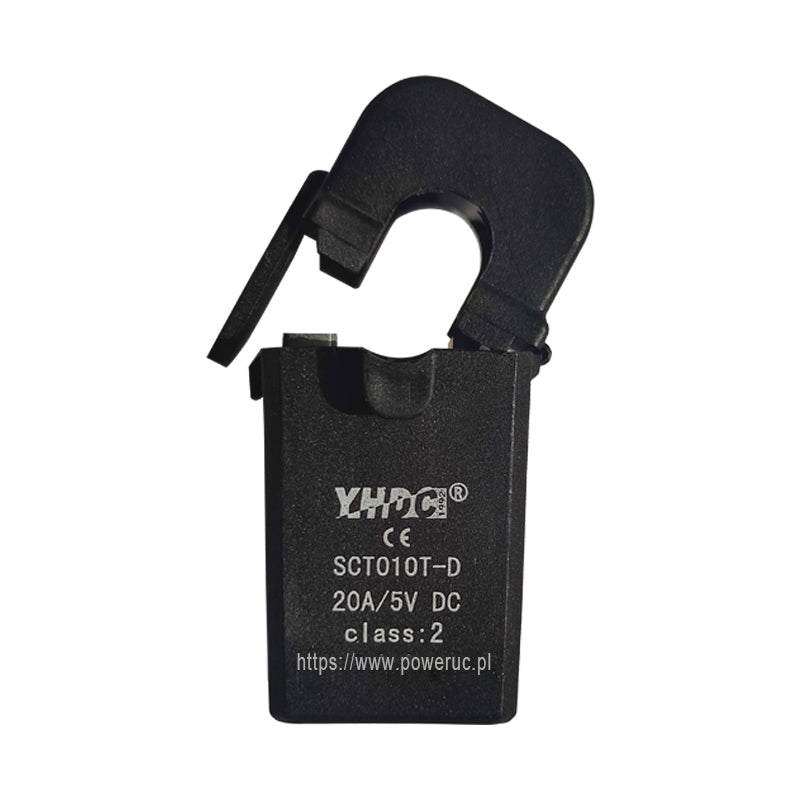

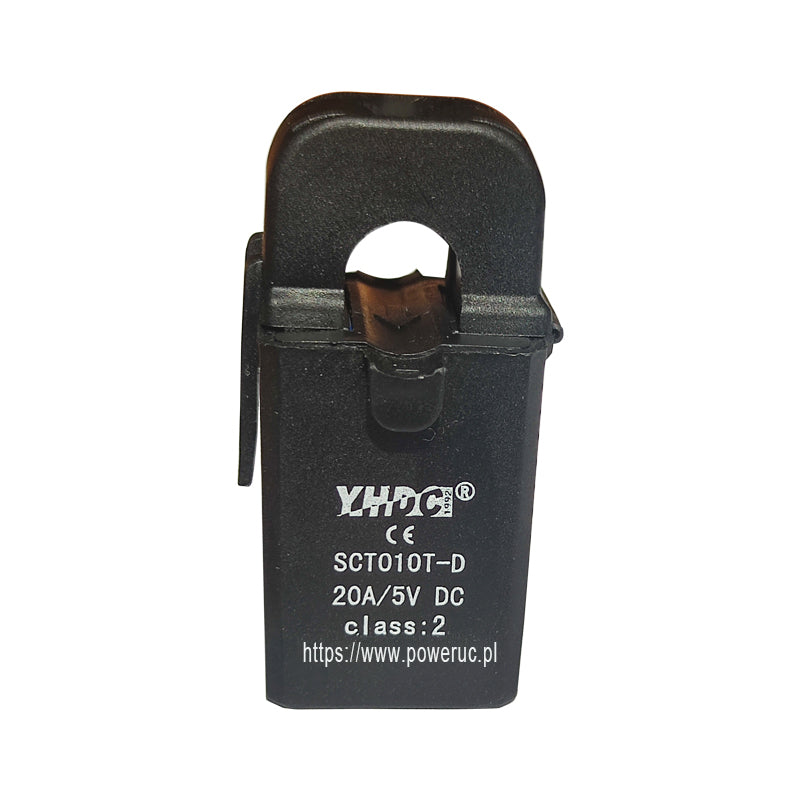

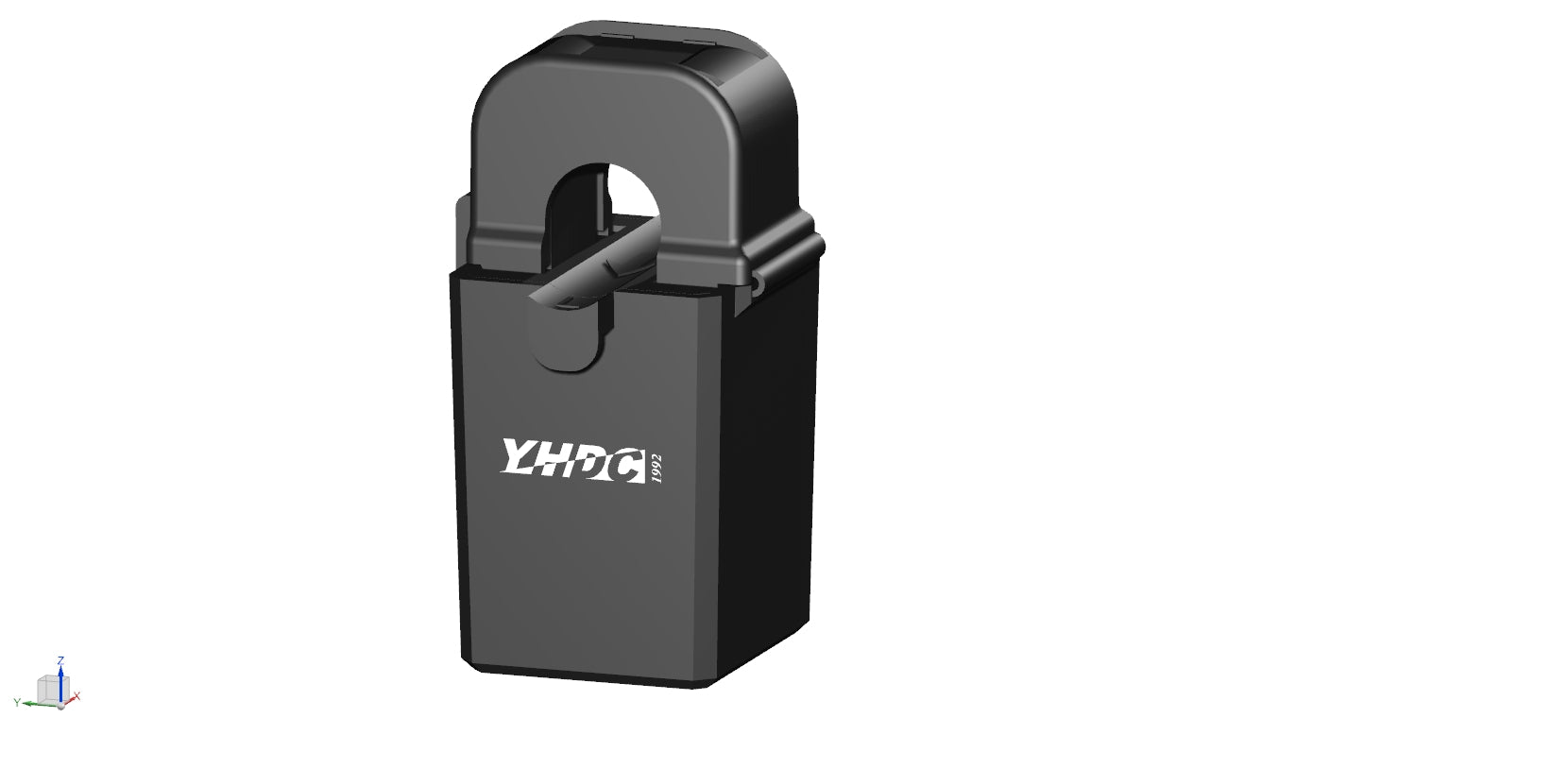

Split Core Current Transformer SCT010T-D rated input 5A 10A 20A 30A 50A rated output 1V 3V 5V - PowerUC

Split Core Current Transformer SCT010T-D rated input 5A 10A 20A 30A 50A rated output 1V 3V 5V

PowerUC

Shipping calculated at checkout.
Only 109 left!

Model：SCT010T-D

Characteristic:

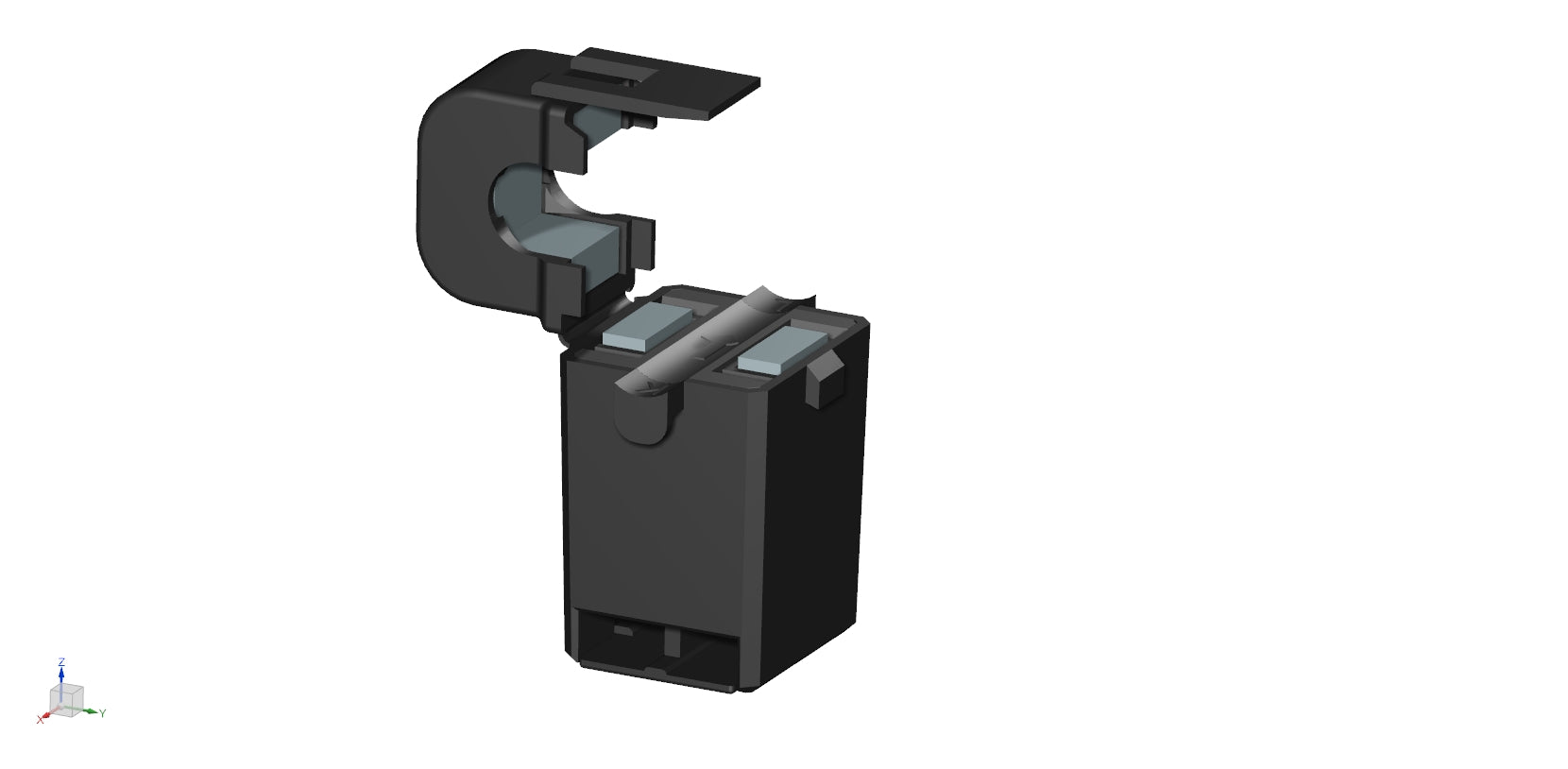

Ф10mmAperture Dc voltage output Split core current transformer; Safety lock clasp, easy to install; Built-in rectifier; Crimping terminal output; Mounted mounting

Typical technical index：

Material of core——Ferrite

Working voltage——Phase voltage≤720V

Working temperature——-25℃～+60℃

Storage temperature——-30℃～+90℃

Frequency range——50Hz～1KHz

Dielectric strength——Input（bare conductor）/output AC 800V/1min 5mA 50Hz Output/Outer shell AC 3.5KV/1min 5mA 50Hz

Weight--45g

Electrical parameters:

DOWNLOAD
