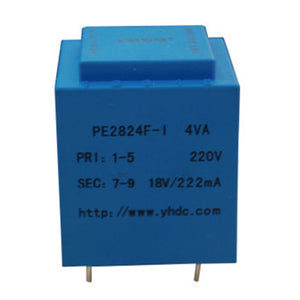

PE series PCB safety isolation transformer PE2824F-I 110V/220V/230V/380V 4VA
Characteristics:
1.Vacuum epoxy sealing, 100℃/6 hours high temperature aging, life span of 20 years, high electrical strength
2.High quality H18 silicon steel sheet, low temperature rise, high efficiency
3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees no deformation
4.Reasonable structure, convenient installation, low noise, strong seismic, sealed waterproof, moisture-proof
Technical Index:Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B grade
Operation temperature: -30°C ~ +70°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength: 3.75KV 50Hz 1min
Electrical parameters:
