PE series PCB safety isolation transformer PE2012-M 110V/220V/230V 0.6VA

Custom Quote Free Sample

Vacuum epoxy encapsulated, small size, compatible with foreign transformers, PCB mounting, open loop circuit can be allowed in the secondary.  Primary voltage: 110V/220V/230V or producing as customized.

Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B grade
Operation temperature: -30°C ~ +70°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength: 3.5KV 50Hz 1min

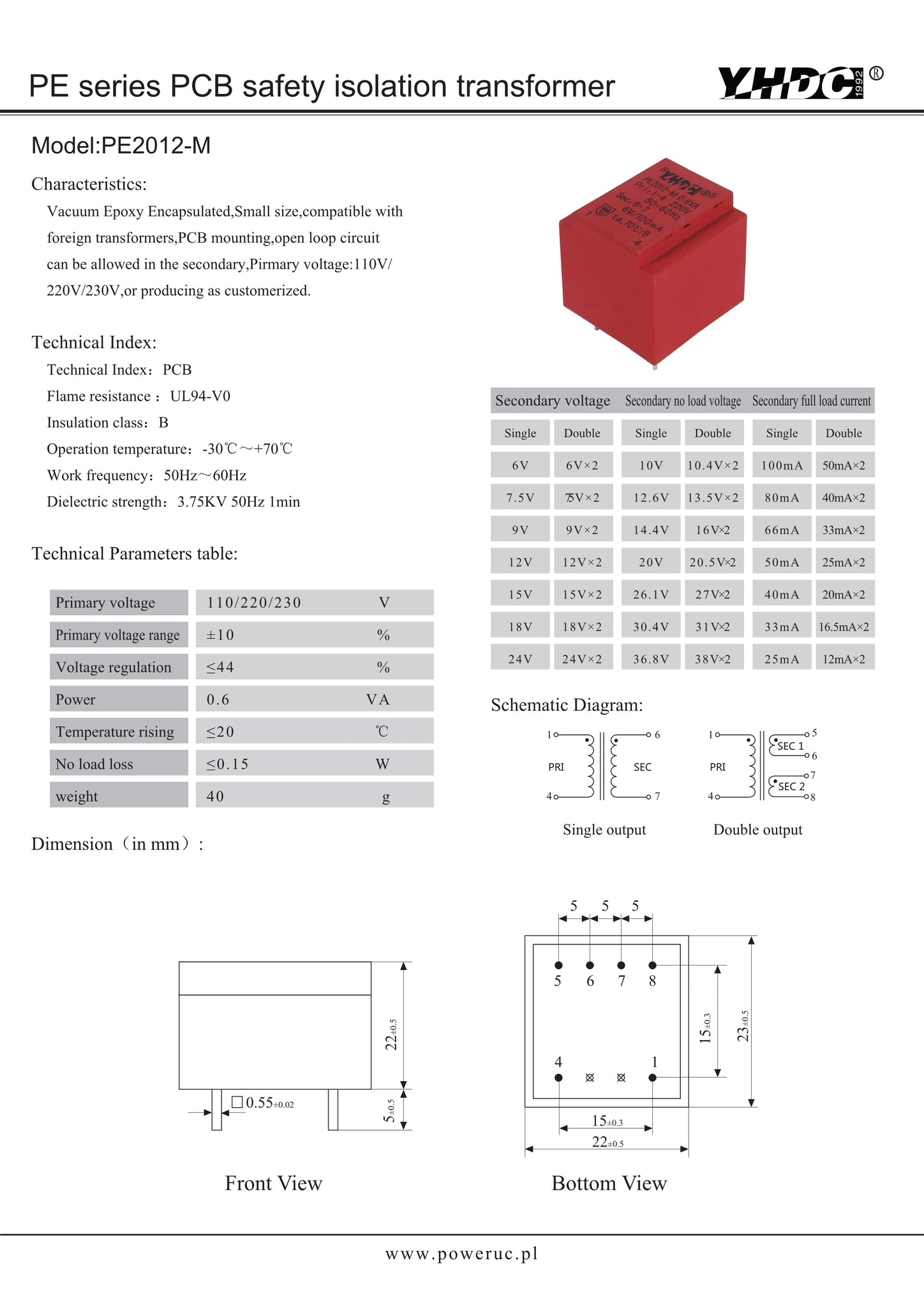

Download Spec Sheet
