PCB toroidal transformer PTC25 110Vx2/115Vx2  25VA - PowerUC

PCB toroidal transformer PTC25 110Vx2/115Vx2 25VA

PowerUC

  • €14,50
    Unit price per
Shipping calculated at checkout.

Only 10 left!

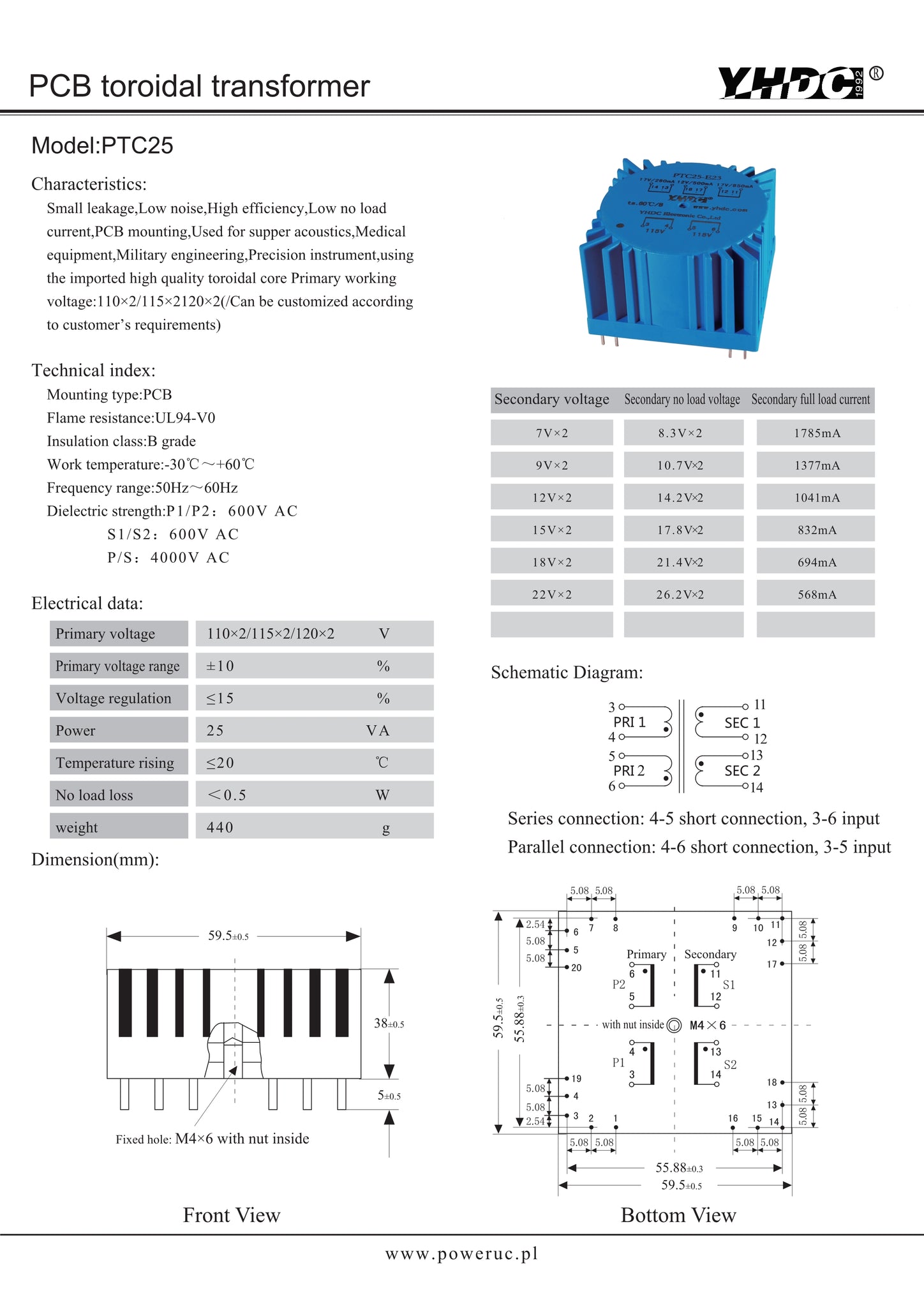

Characteristics:
Small leakage, low noise, high efficiency, low no load current, PCB mounting, used for supper acoustics, medical equipment, military engineering, precision instrument, using the imported high quality toroidal core.  Primary working voltage: 110x2/115x2/120x2 (can be customized according to customer's requirements).

Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B grade
Work temperature: -30°C ~ +60°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: PRI/SEC:4KV 50Hz 1min 5mA

                                SEC/SEC 500V 50Hz 1min 5mA



DOWNLAOD
