PCB toroidal transformer PTC15 110Vx2/115Vx2  15VA - PowerUC

PCB toroidal transformer PTC15 110Vx2/115Vx2/120Vx2 15VA


  • €12,50
    Unit price per
Shipping calculated at checkout.

Only 18 left!

Small leakage, low noise, high efficiency, low no load current, PCB mounting, used for supper acoustics, medical equipment, military engineering, precision instrument, using the imported high quality toroidal core.  Primary working voltage: 110x2/115x2/120x2 (can be customized according to customer's requirements).

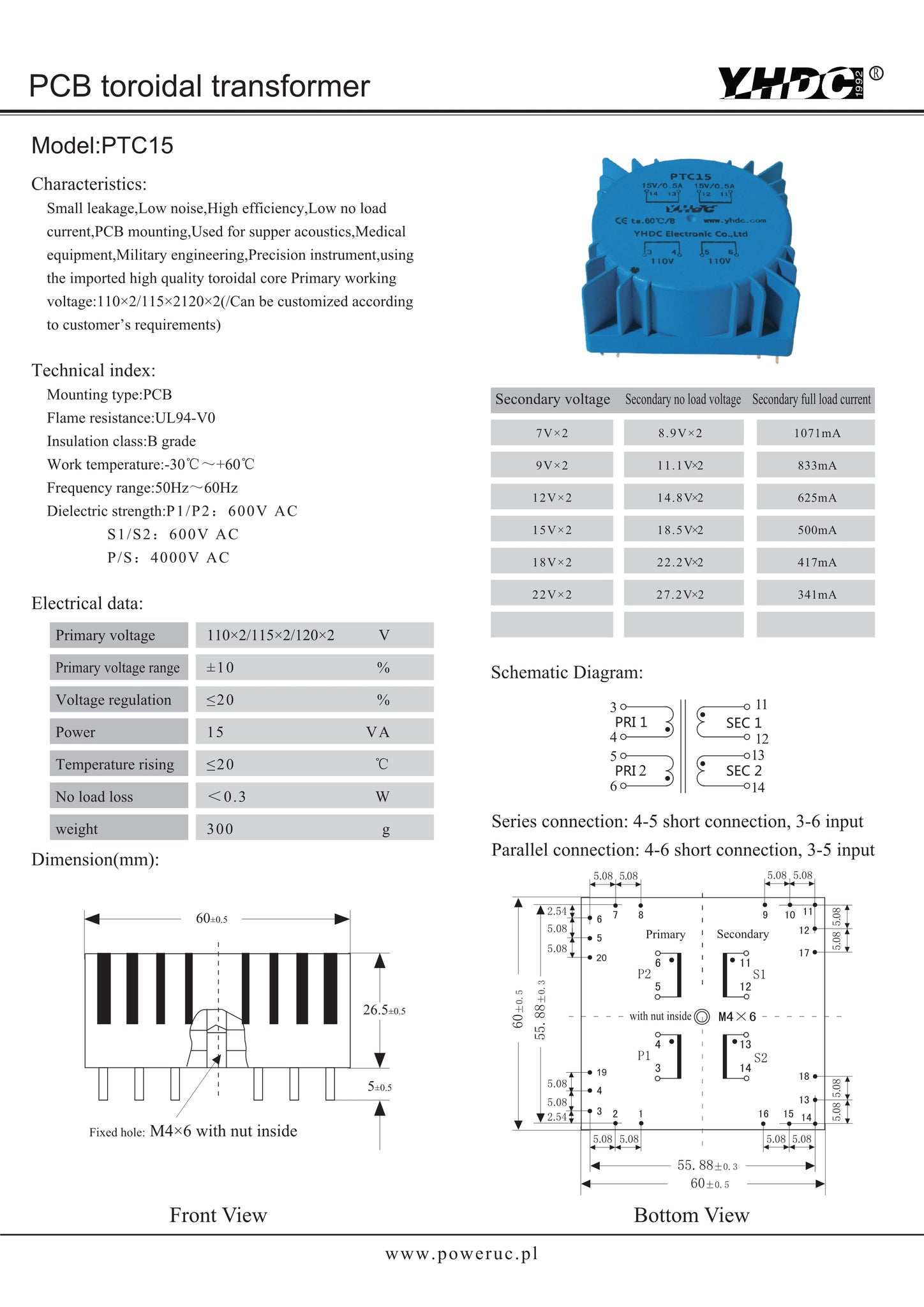

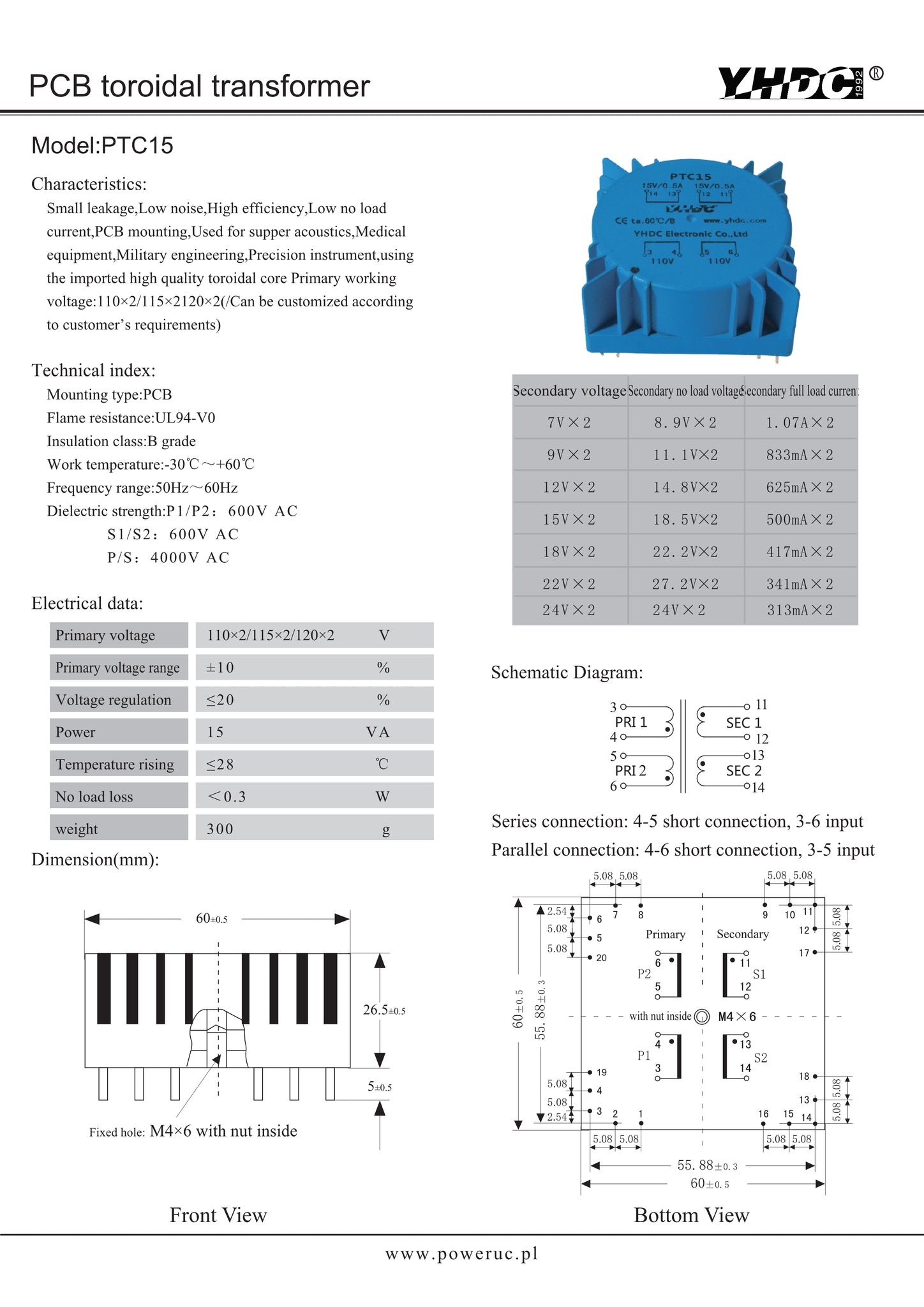

Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B grade
Work temperature: -30°C ~ +60°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength:  P1/P2: 500V AC
S1/S2: 500V AC
P/S: 4000V AC
