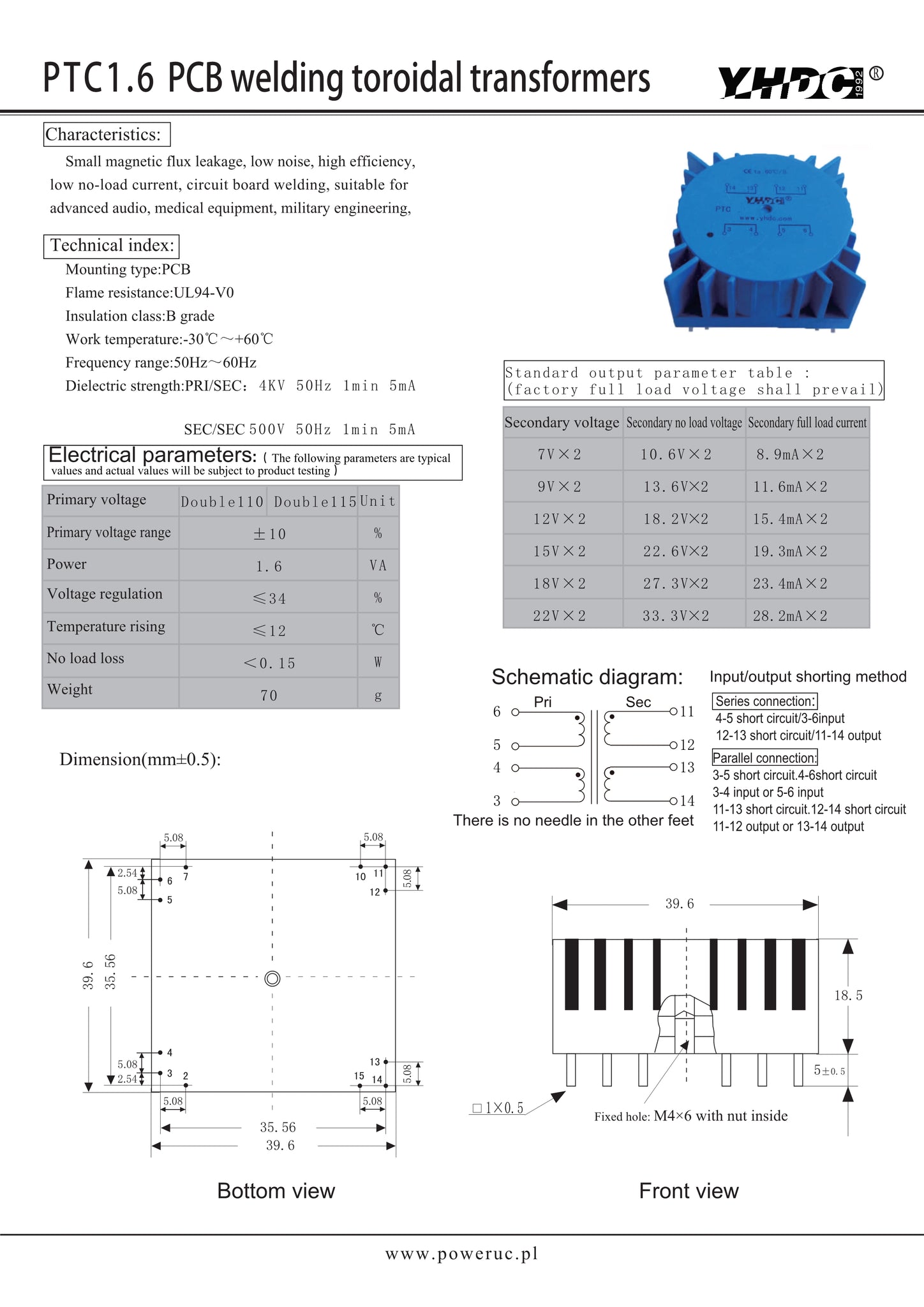

PCB toroidal transformer PTC1.6 110Vx2/115Vx2 1.6VA

PCB toroidal transformer PTC1.6 110Vx2/115Vx2 1.6VA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:

Small magnetic flux leakage, low noise, high efficiency, low no-load current, circuit board welding, suitable for advanced audio, medical equipment, military engineering,

Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B grade
Work temperature: -30°C ~ +60°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: PRI/SEC：4KV 50Hz 1min 5mA

                               SEC/SEC 500V 50Hz 1min 5mA

Electrical parameters:（The following parameters are typicalvalues and actual values will be subject to product testing）

DOWNLOAD
