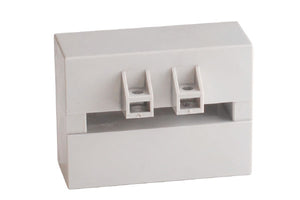

DC current transmitter THA6209D Rated input 50A 200A 300A 400A 500A 600A 800A Rated output 0-20mA;4-20mA ;0-5V ;1-5V ;0-10V
Square plug terminal output, sub-plate mounting type; The faulty wiring can lead to product damage,Please according to direction of arrow to thread when testing DC current,reverse threading will lead to inaccurate output, The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.
Technical index:
Flame resistance: UL94-V0
Operating temperature: -10℃~+70℃
Storage temperature: -25℃~+70℃
Dielectric strength: 2.5KV 50Hz 1min
Overload capacity: 8times 0.1S
Waterproof level: IP00(IP44Terminal need to dispose)
Electric parameters:
