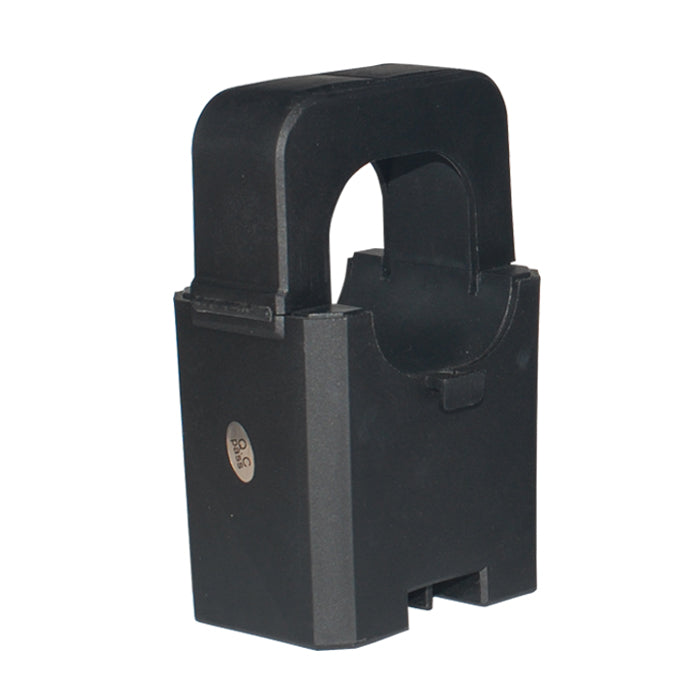

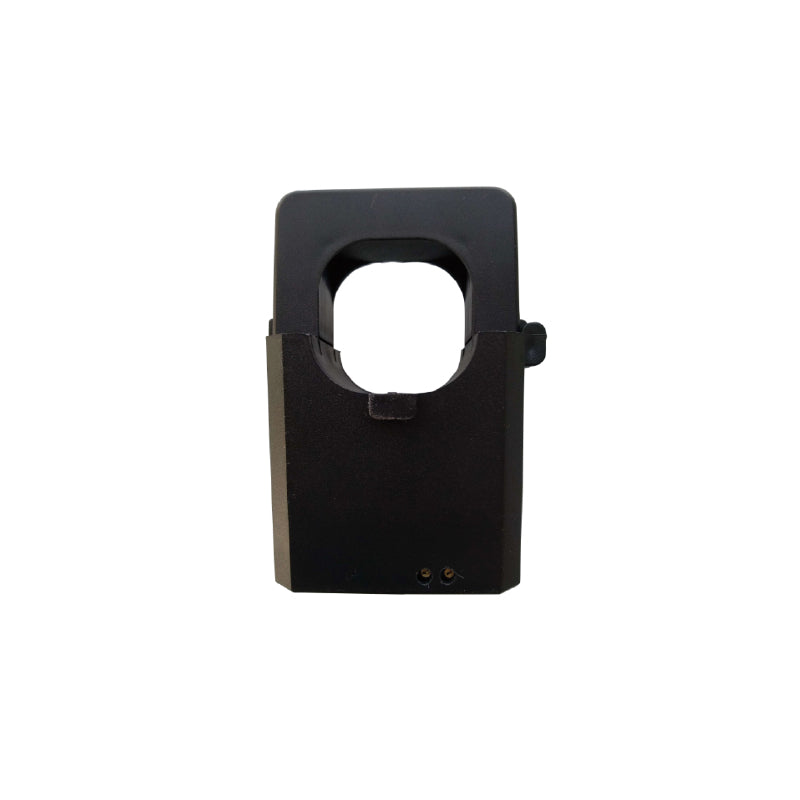

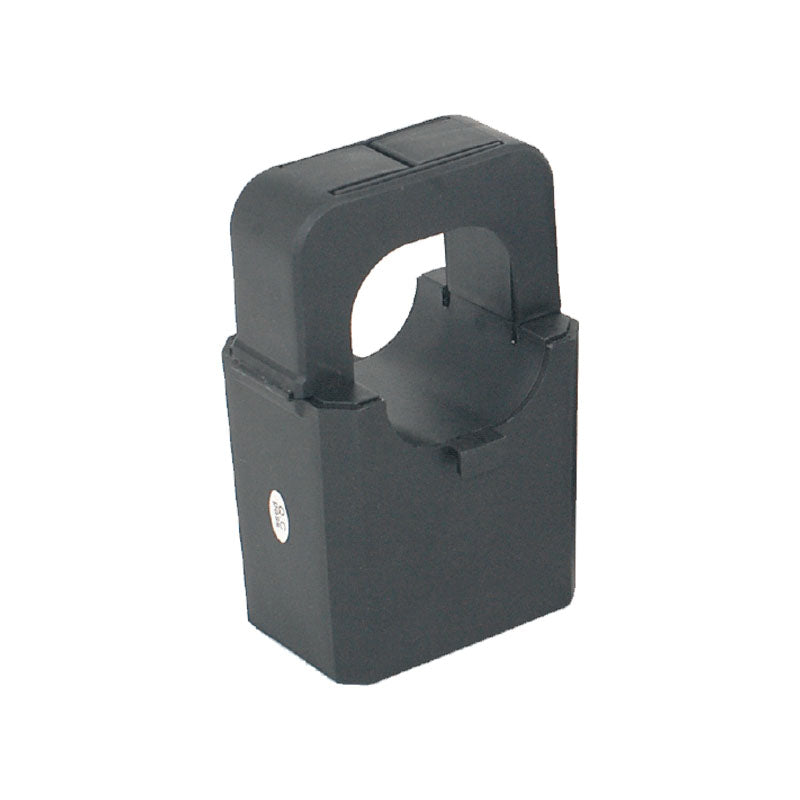

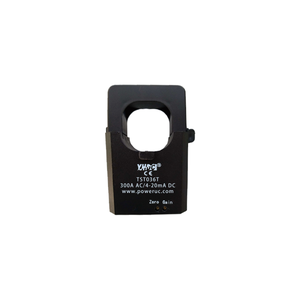

Split core AC current transducer TST036T Rated input 300A/400A/500A/600A Rated output 4-20mA
Locked type,terminal output,suspension installation;The faulty wiring can lead to product damage;The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.
Technical index：
Flame resistance： UL94-V0
Operating temperature： -20℃～+70℃
Storage temperature： -25℃～+70℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity： 8times 0.1S
Waterproof level： IP00
Electric parameters：
