Split core current transformer SCT013-RJ45 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 1V/0.333V - PowerUC

Split core current transformer SCT013-RJ45 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 1V/0.333V/50mA

PowerUC

Shipping calculated at checkout.
Only 12 left!

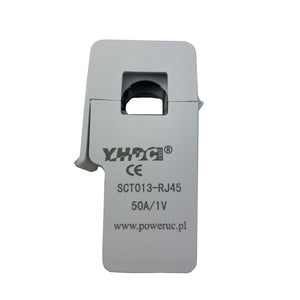

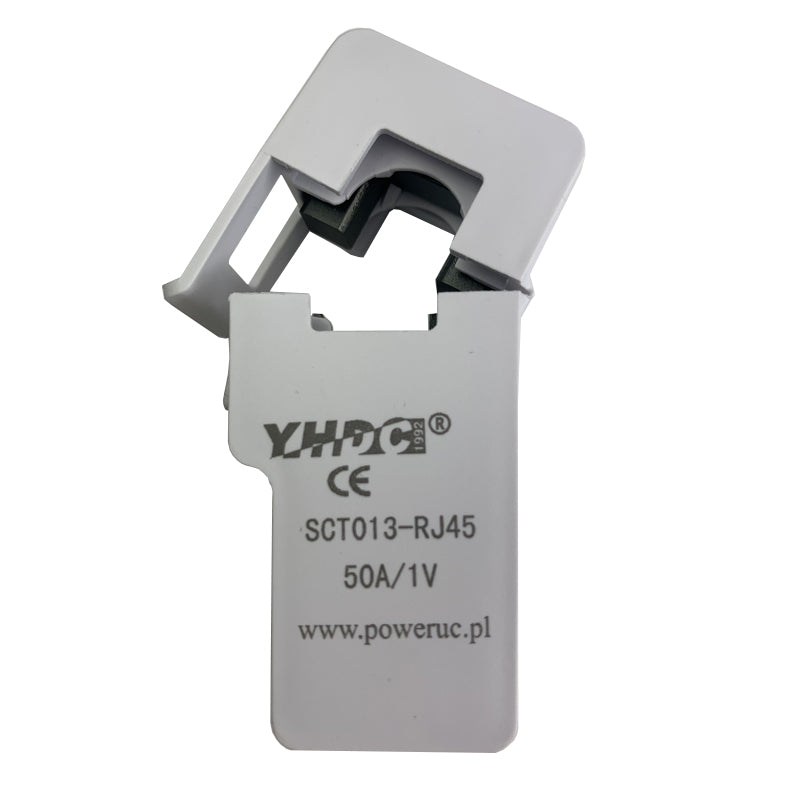

Model：SCT013-RJ45

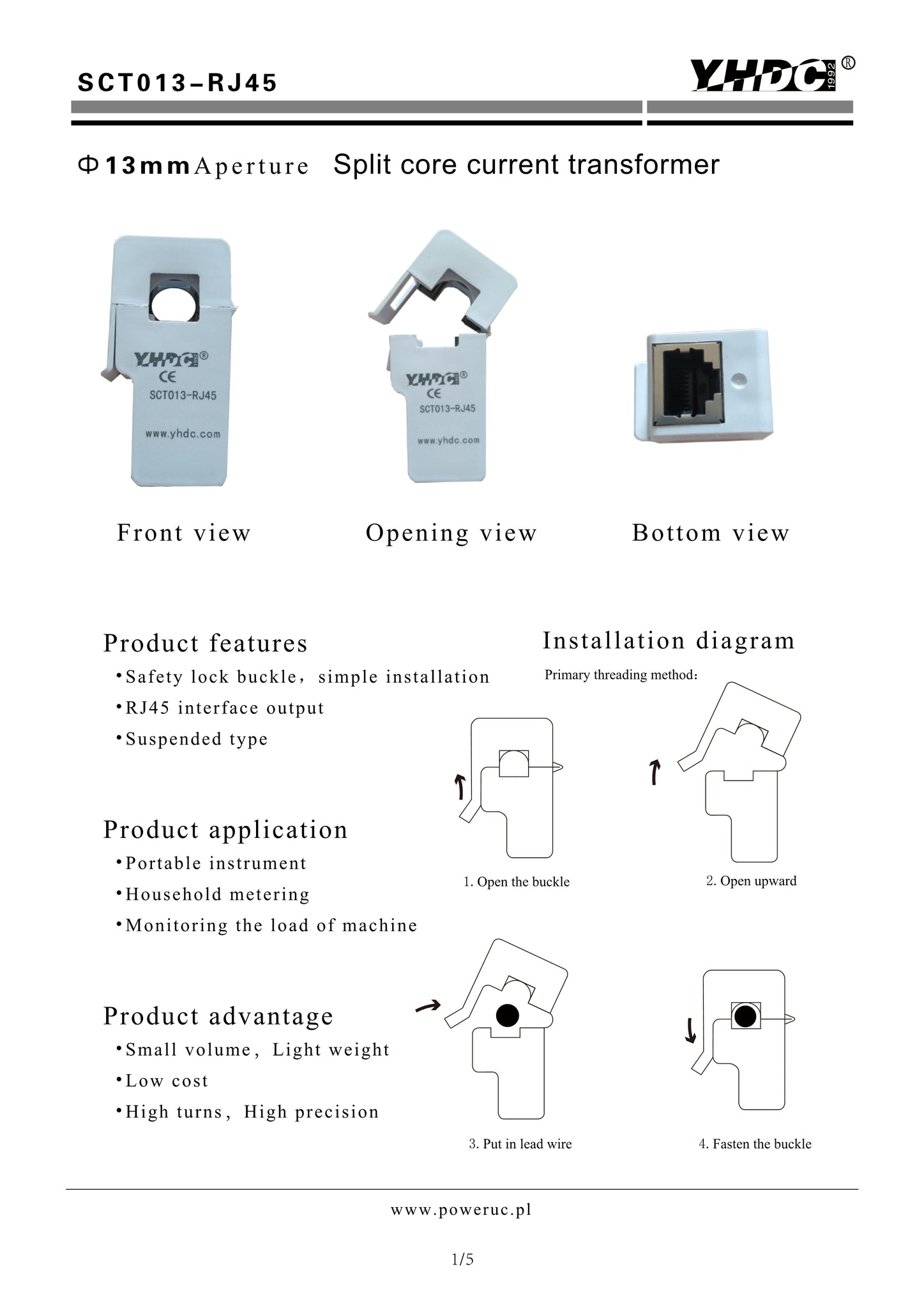

Characteristics:
Opening size 13mmx13mm, RJ45 output
, current &voltage two types of output. (Patent No. ZL 2015 3 0060067.X）

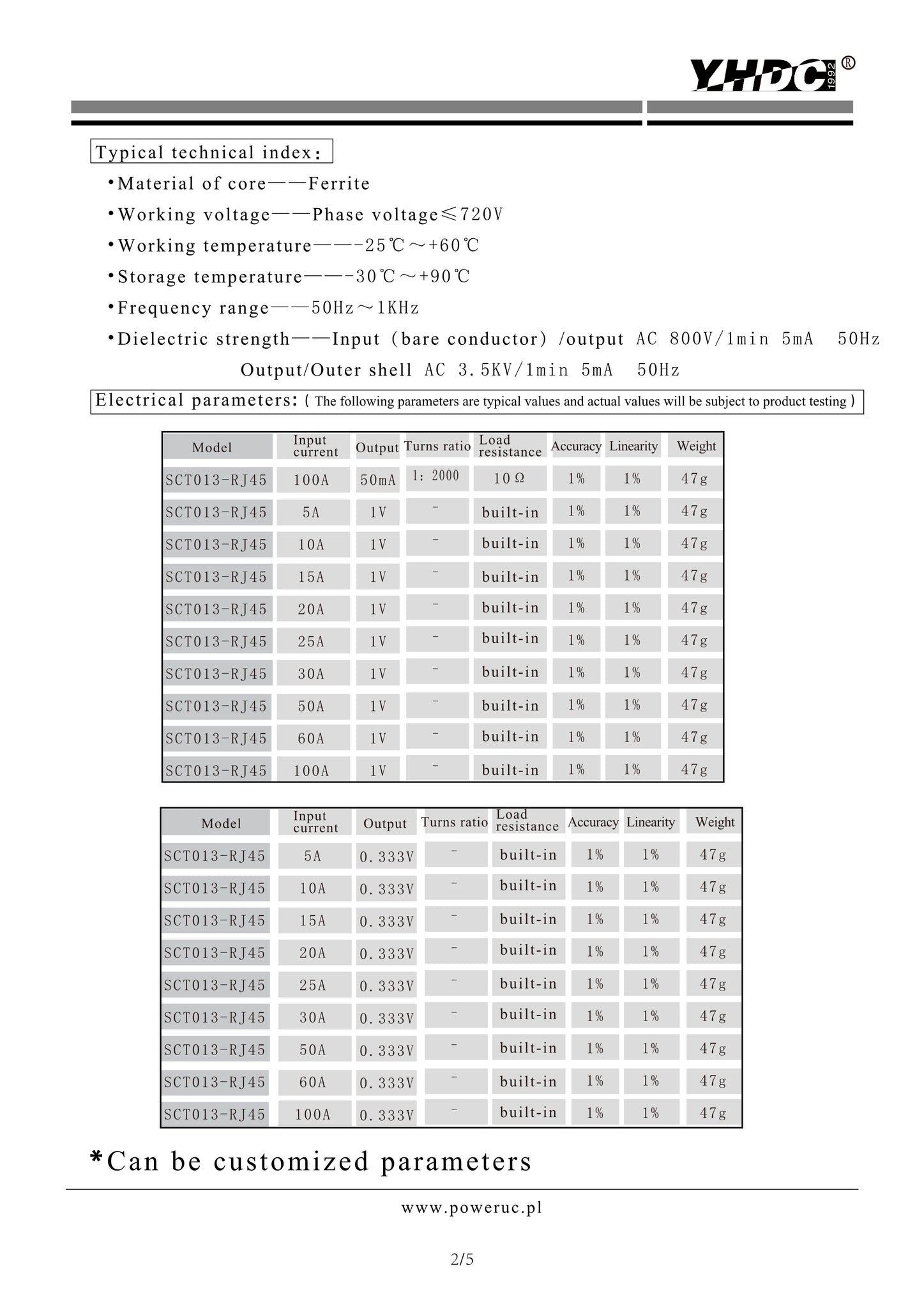

Technical index:
Suspended mounting,leading wire output
Standard:GB1208-2006
Operating temperature:-25℃～+60℃
Storage temperature:-30℃～+90℃
Work voltage:720V
Frequency range:50Hz-1KHz
Dielectric strength:3.5KV 50Hz 1min

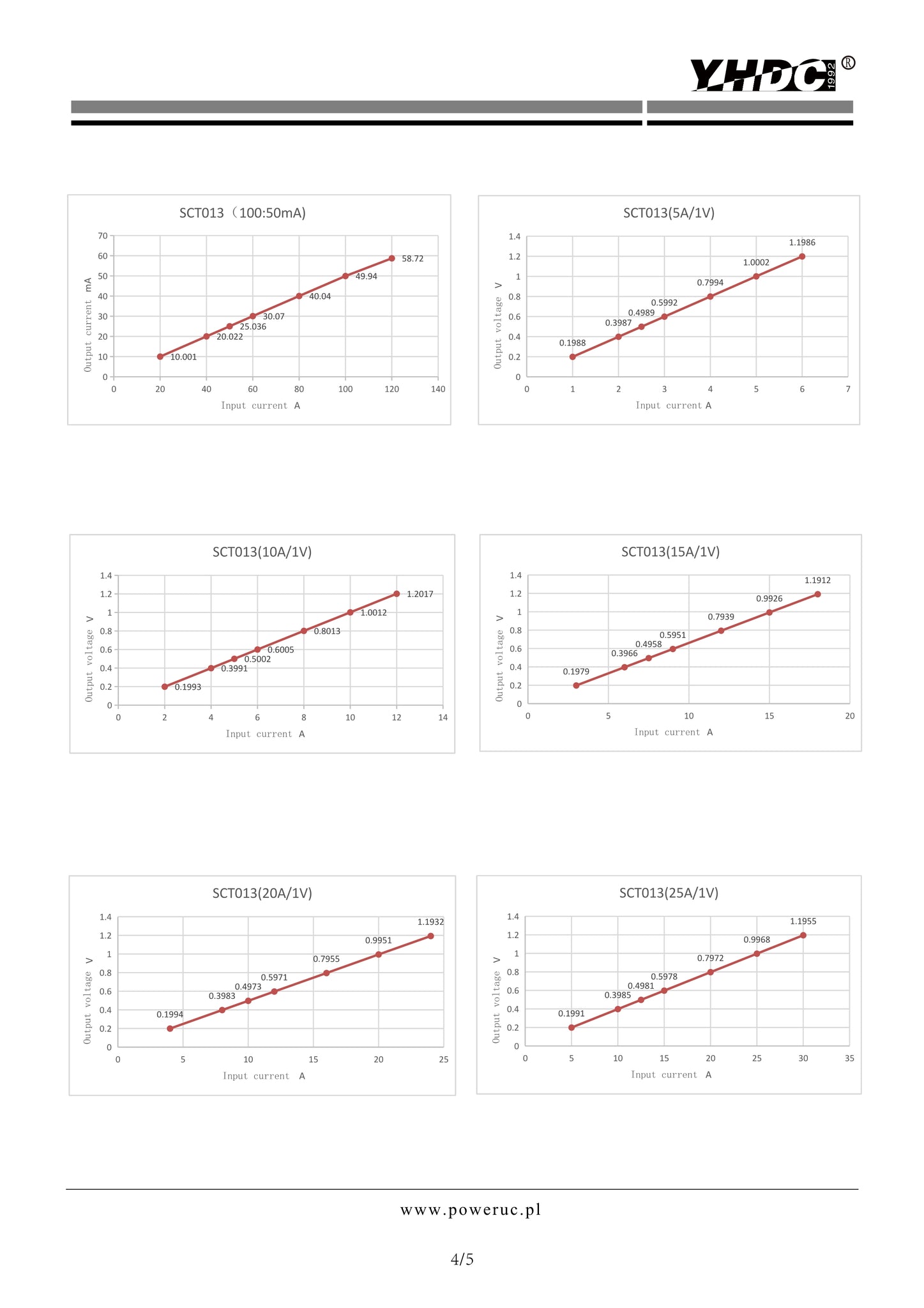

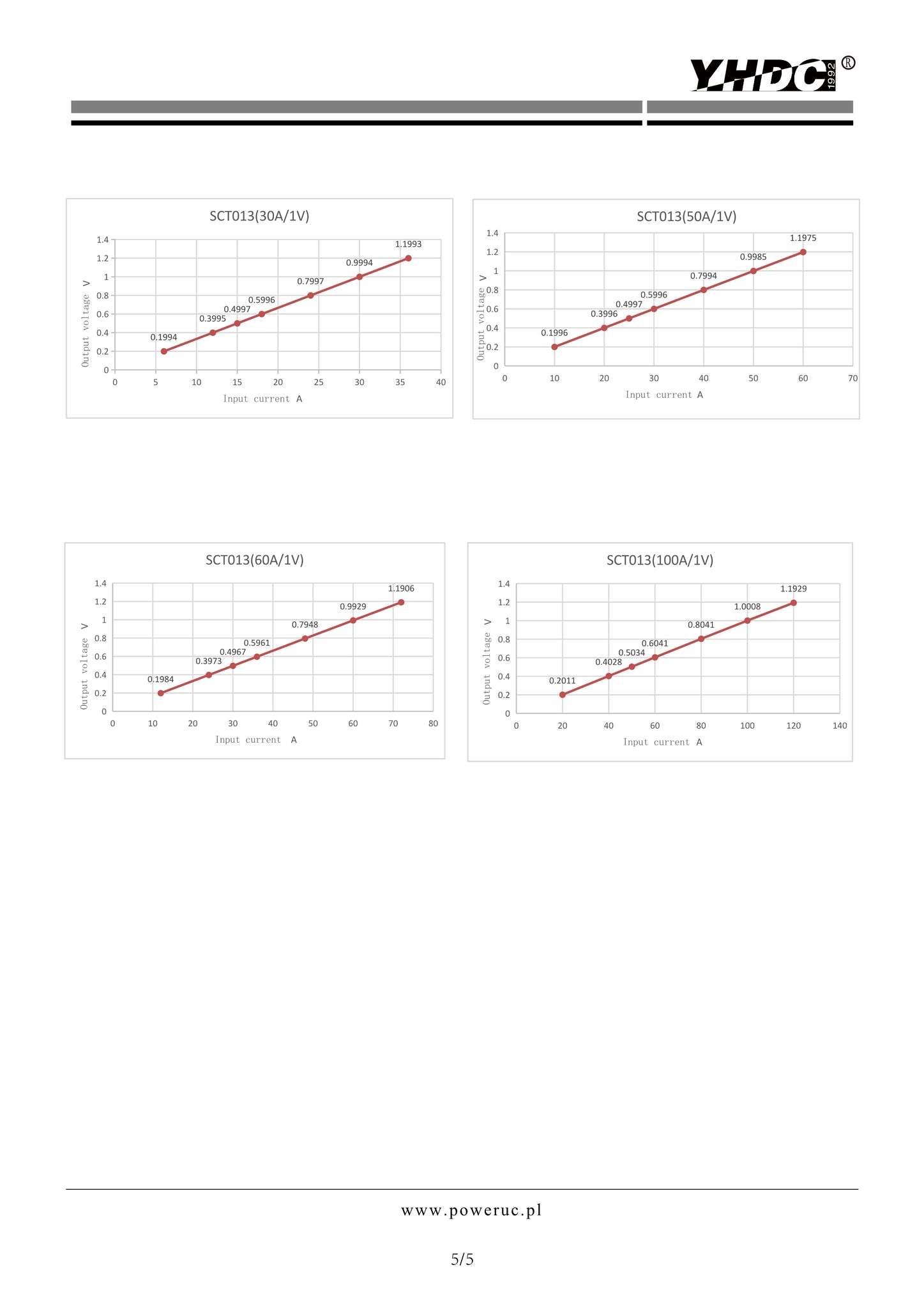

Electric parameters:

DOWNLOAD
