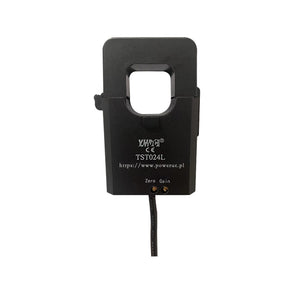

Split core AC current transducer TST024L Rated input 100A/200A/300A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V
AC current transducer TST024L Rated input 100A/200A/300A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V - PowerUC

Split core AC current transducer TST024L Rated input 100A/200A/300A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V

PowerUC

Shipping calculated at checkout.
Only 10 left!

Locked type, lead wire output,suspension installation;The faulty wiring can lead to product damage.The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.


Technical index：
Flame resistance： UL94-V0
Operating temperature： -10℃～+70℃
Storage temperature： -25℃～+70℃
Dielectric strength： 2.5KV 50Hz 1min
Overload capacity： 8times 0.1S
Waterproof level： IP00

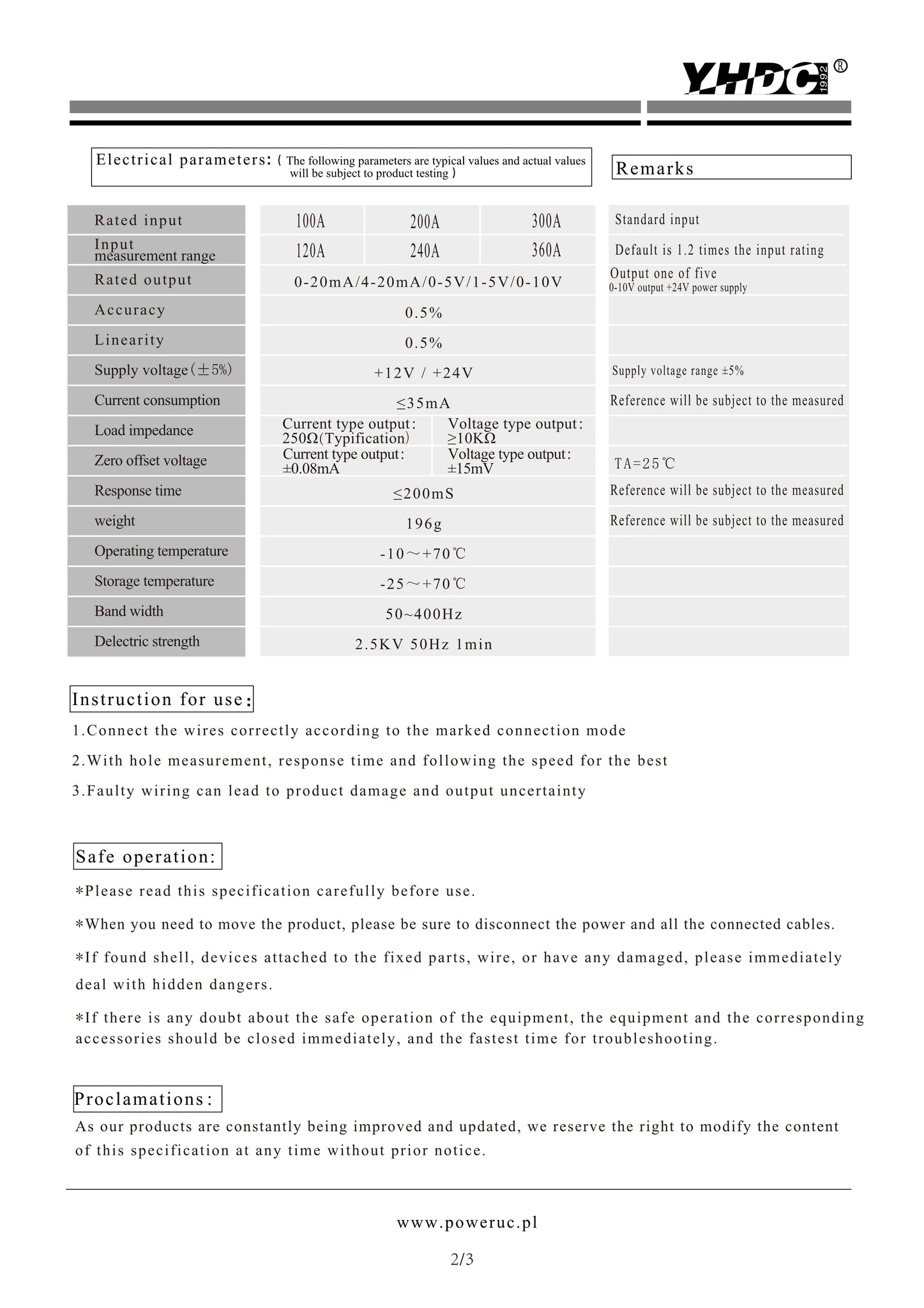

Electric parameters：

DOWNLOAD
