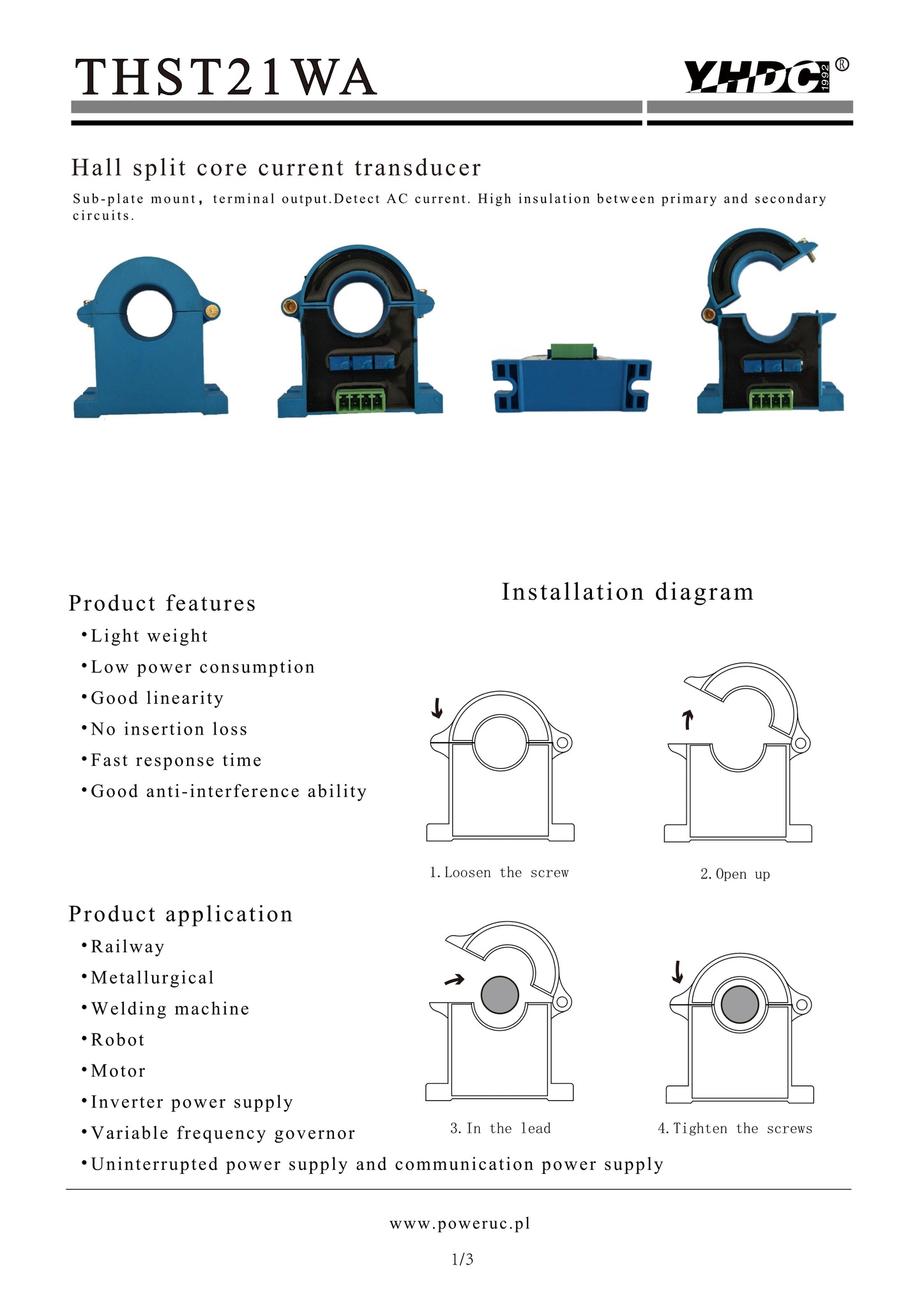

AC current transducer THST21WA Rated input 50A 100A 200A 300A 400A 500A Rated output 0-20mA;4-20mA ;0-5V;1-5V;0-10V

PowerUC

  • €21,04
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Circle plug terminal output,sub-plate mounting type;The faulty wiring can lead to product damage:The output is linear with primary test current,and the output signal can be directly enter automatic control equipment or PLC port.


Technical index
Flame resistanceUL94-V0
Operating temperature
-10℃~+70
Storage temperature-25℃~+70
Dielectric strength2.5KV 50Hz 1min
Overload capacity
8 times 0.1S
Waterproof level
:IP00(Terminal needs to be sealing treatment of IP44)

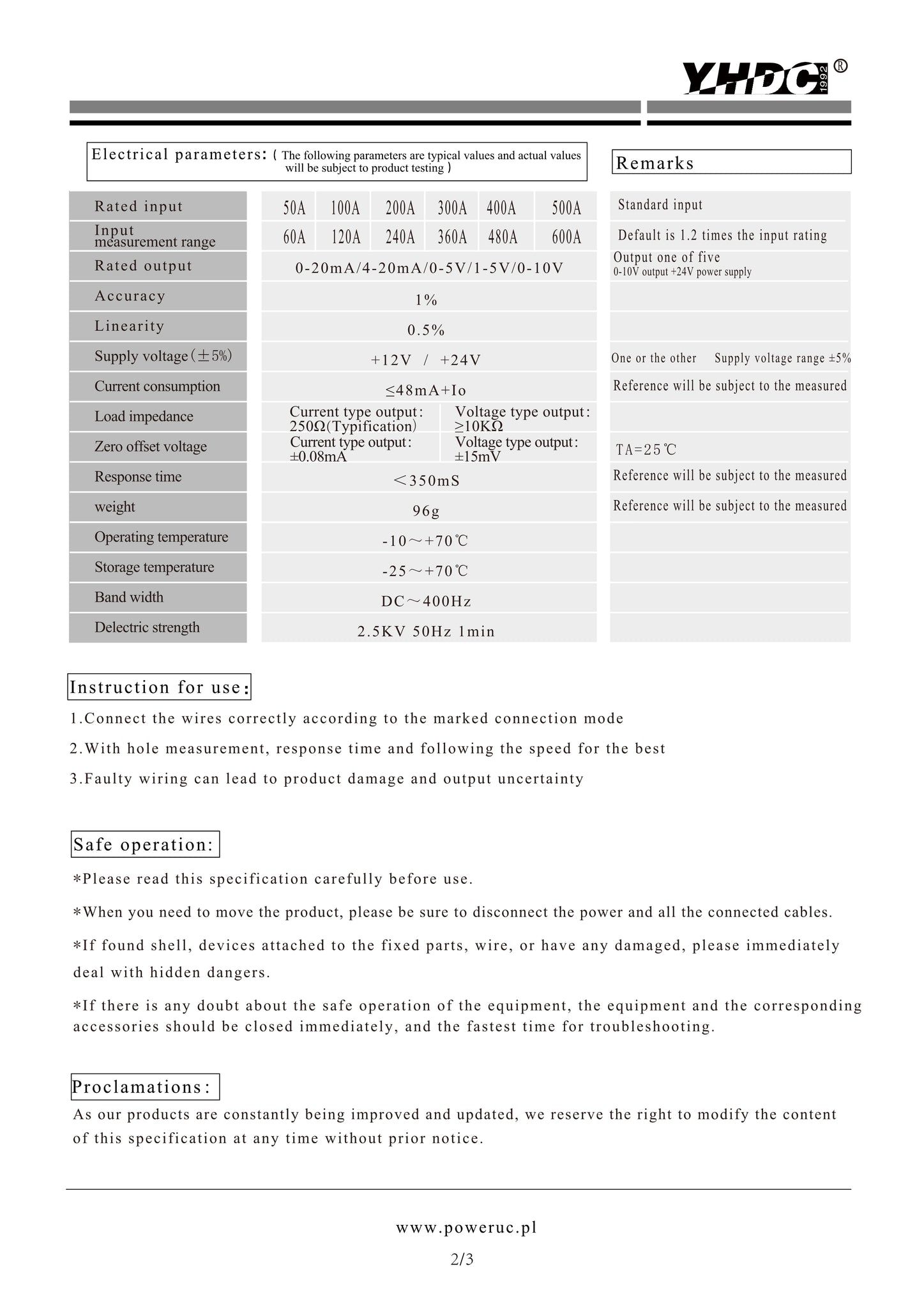

Electric parameters

DOWNLOAD
