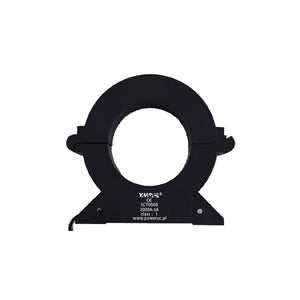

Split core current transformer SCT080B rated input 100A 500A 600A 800A 1000A 1200A 1500A 2000A rated output 1A/5A/0.333V
Characteristic:
Split core ,1A/5A/0.333V output , Built - in with sampling resistance , Purpose : Applicable for the current measuring monitoring and protection of AC motor , lighting equipment and air compressor
Technical Indicators:
Plate mounting :output with cable
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: ≤720V
Work temperature: -20°C ~ +60°C
Storage temperature: -25°C ~ +65°C
Frequency range: 50Hz ~ 60KHz
Dielectric strength: 3.5KV 50Hz 1min
Weight: 778g
Electric Parameter:
