![Split core current transformer SCT045B rated input 50A 100A 200A 250A 300A 400A 500A 600A 800A 1000A rated output 1A/5A/0.333V](http://www.poweruc.pl/cdn/shop/files/sct045b-5a-pl_{width}x.jpg?v=1721801643)

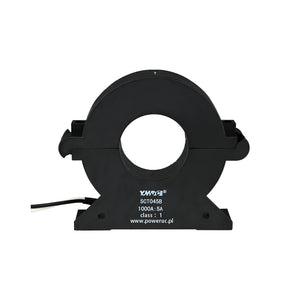

Split core current transformer SCT045B rated input 50A 100A 200A 250A 300A 400A 500A 600A 800A 1000A rated output 1A/5A/0.333V
Characteristic:
Split core , 0.333V/1A/5A output , Built - in with sampling resistance , Purpose : Applicable for the current measuring monitoring and protection of AC motor , lighting equipment and air compressor
Technical Indicators:
Plate mounting :output with cable
Material of core: Ferrite
Fire resistance property: UL94-V0
Work voltage: ≤720V
Work temperature: -20°C ~ +60°C
Storage temperature: -25°C ~ +65°C
Frequency range: 50Hz ~ 60KHz
Dielectric strength: 3.5KV 50Hz 1min
![](https://cdn.shopifycdn.net/s/files/1/2723/6858/files/SCT045B_1_2048x2048.jpg?v=1596527173)
![](https://cdn.shopifycdn.net/s/files/1/2723/6858/files/SCT045B_2_2048x2048.jpg?v=1596526569)
![](https://cdn.shopifycdn.net/s/files/1/2723/6858/files/SCT045B_3_2048x2048.jpg?v=1596526504)
DOWNLOAD
