Split core current transformer SCT025B rated input 50A 100A 150A 200A 250A 300A 400A rated output 1A/5A - PowerUC

Split core current transformer SCT025B rated input 50A 100A 200A 300A 400A rated output 1A/5A/0.333V

PowerUC

Shipping calculated at checkout.
Only 4 left!

Characteristic:

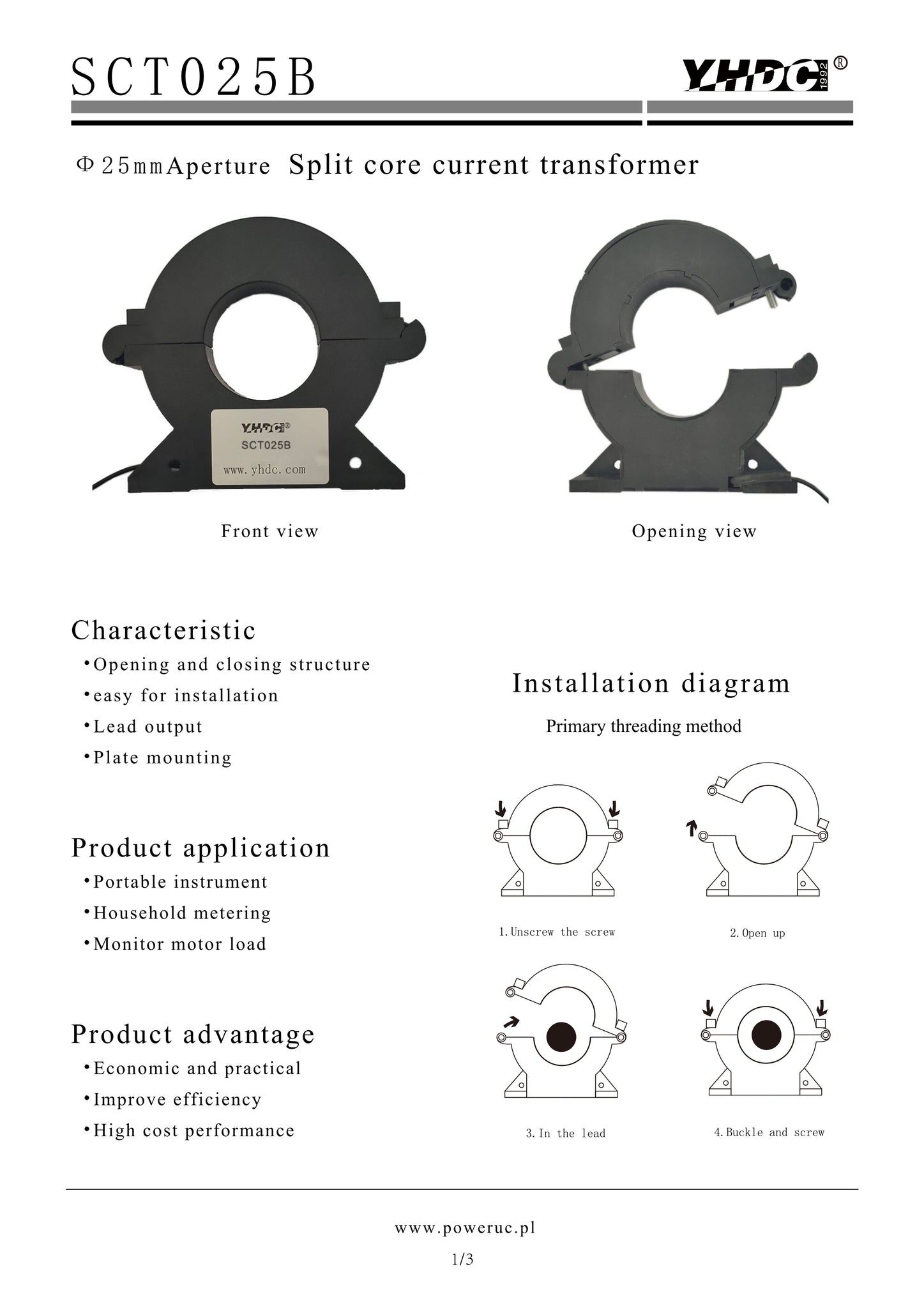

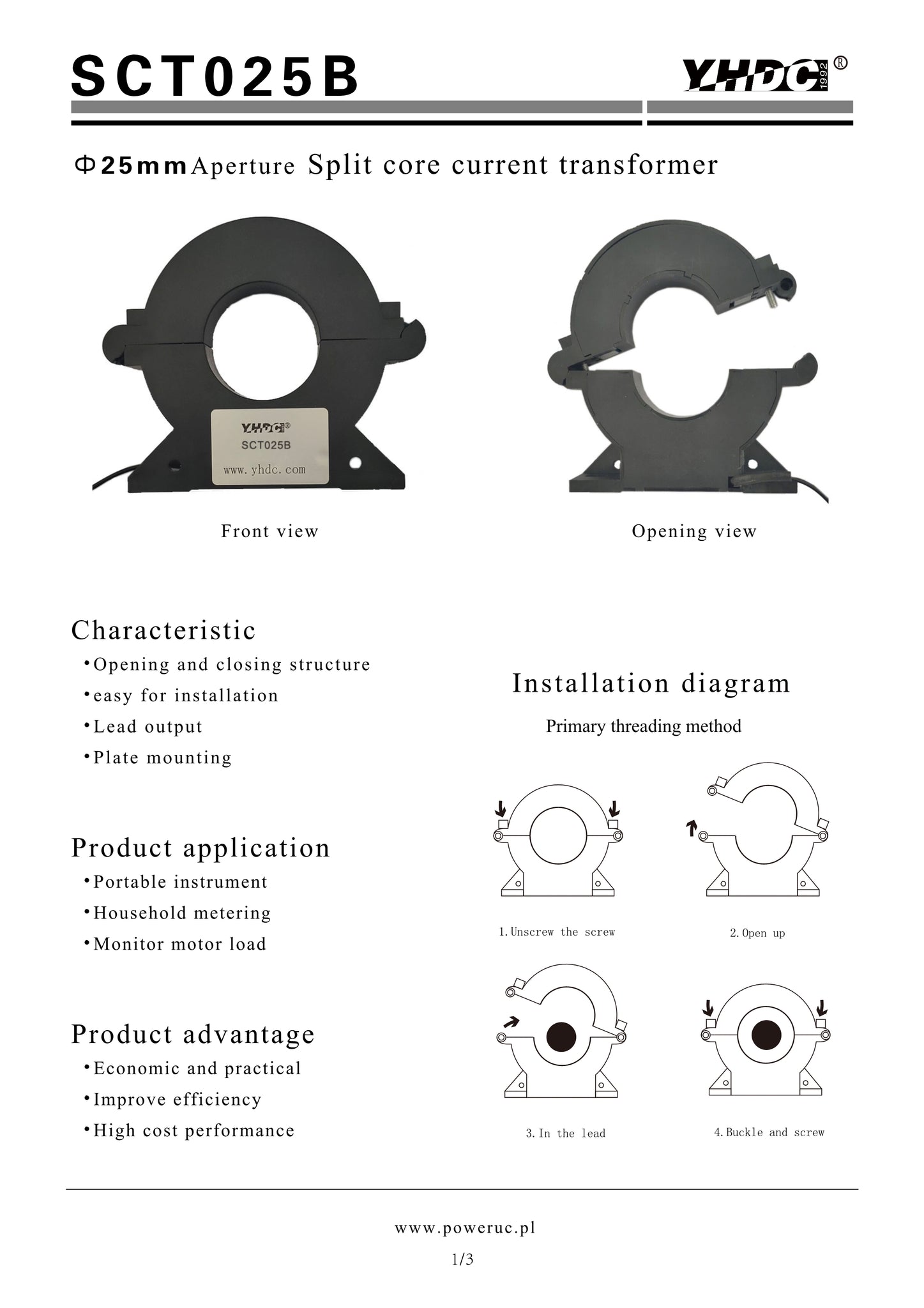

Split core structure, round window, sub-plate mount, leading wire output.

Technical Indicators:
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: 720V
Work temperature: -20°C ~ +60°C
Dielectric strength: 3.5KV 50Hz 1min
Storage temperature: -25°C ~ +65°C
Frequency range: 50Hz ~ 60Hz

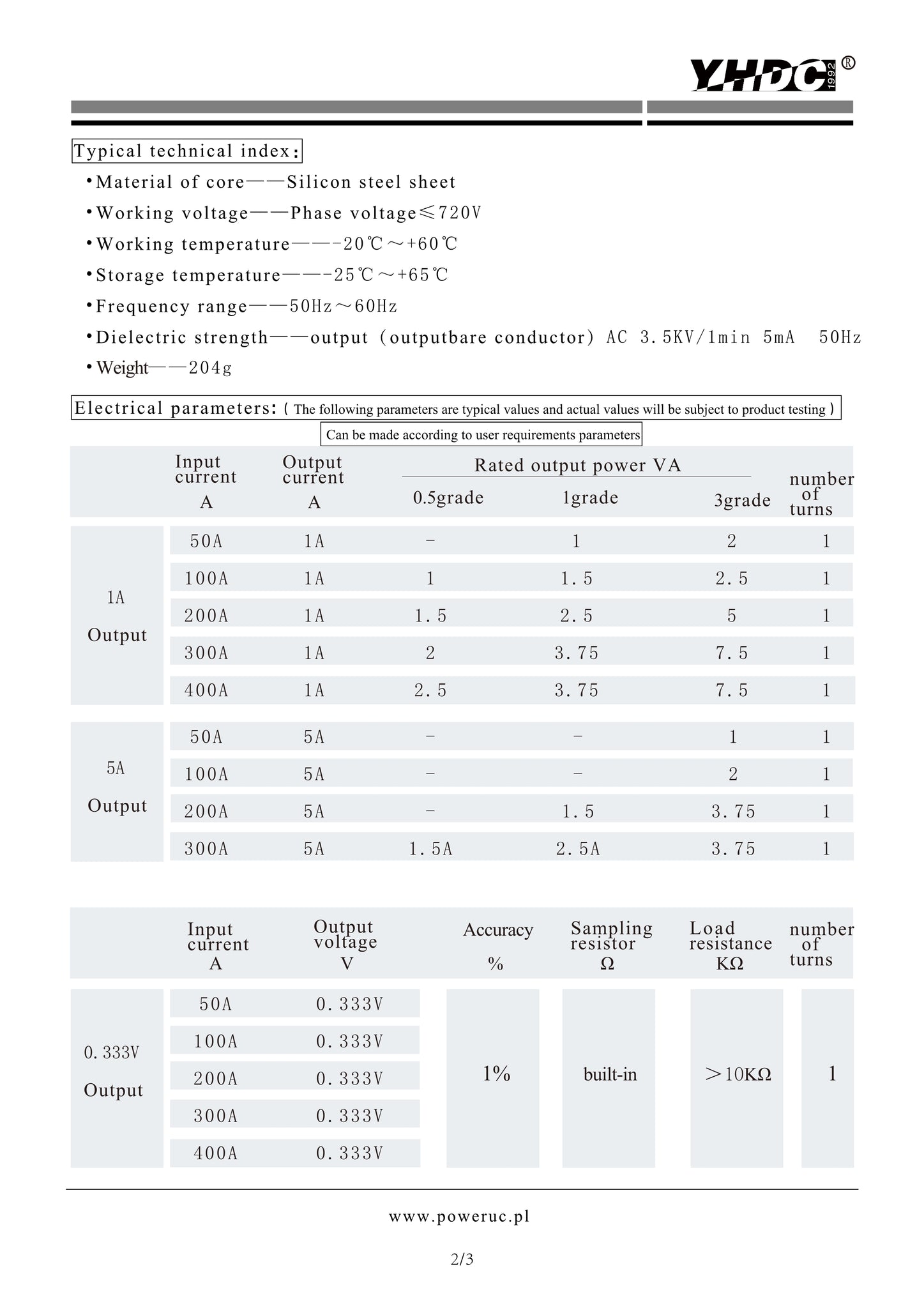

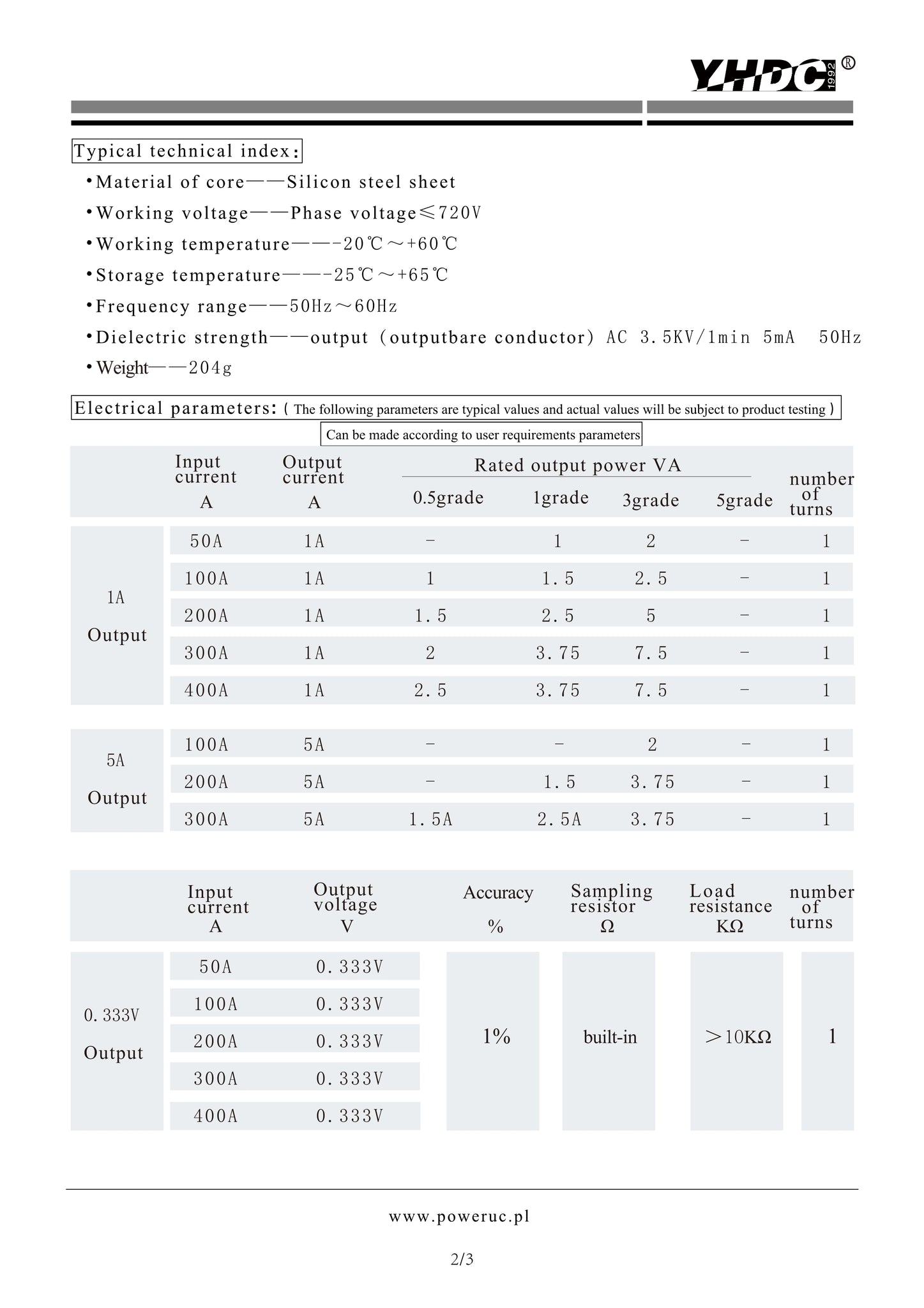

Electric Parameter:

DOWNLOAD
