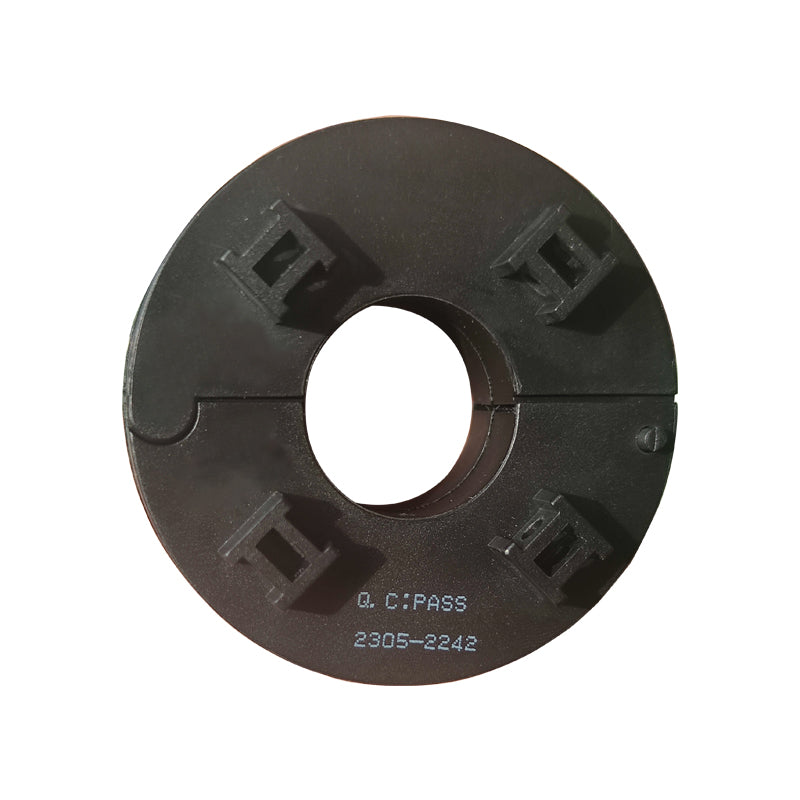

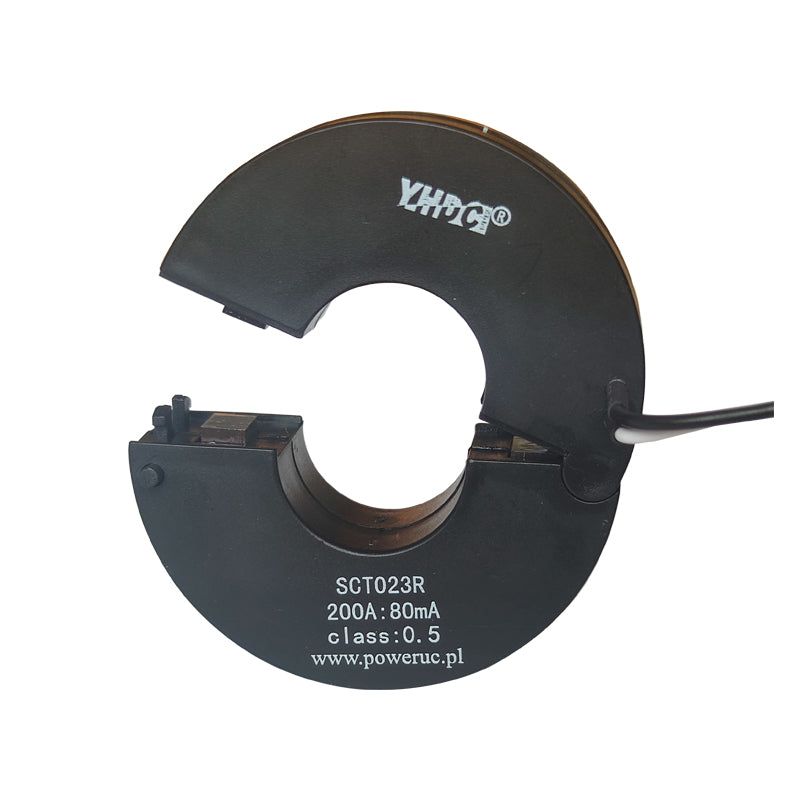

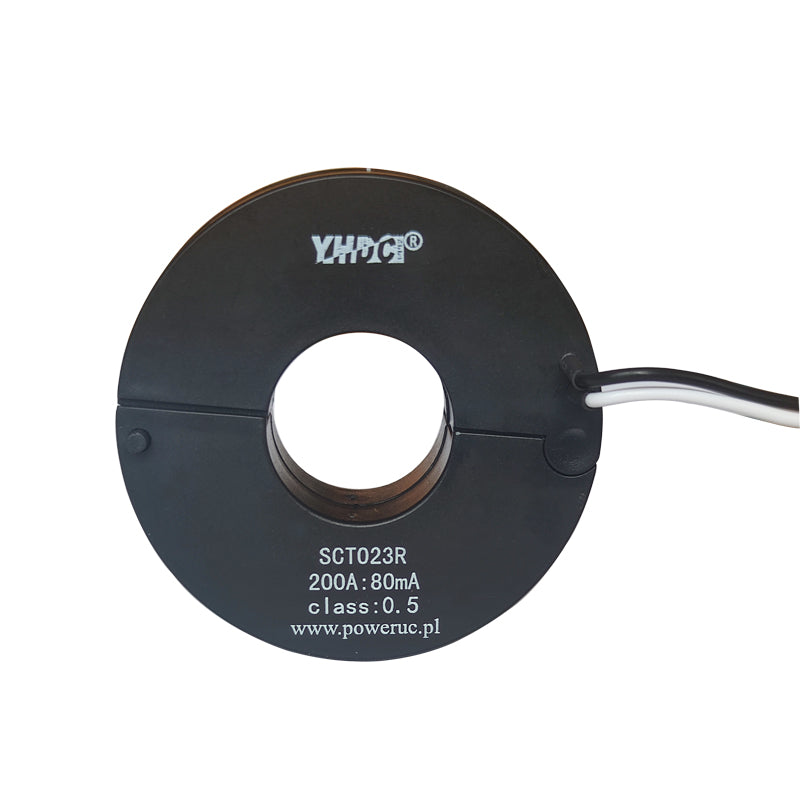

Split core current transformer SCT023R rated input 50A 100A 200A 300A 400A 600A rated output 50mA/80mA/100mA/0.333V

Split core current transformer SCT023R rated input 50A 100A 200A 300A 400A 600A rated output 50mA/80mA/100mA/0.333V

PowerUC

Shipping calculated at checkout.
Only 48 left!

Characteristic:

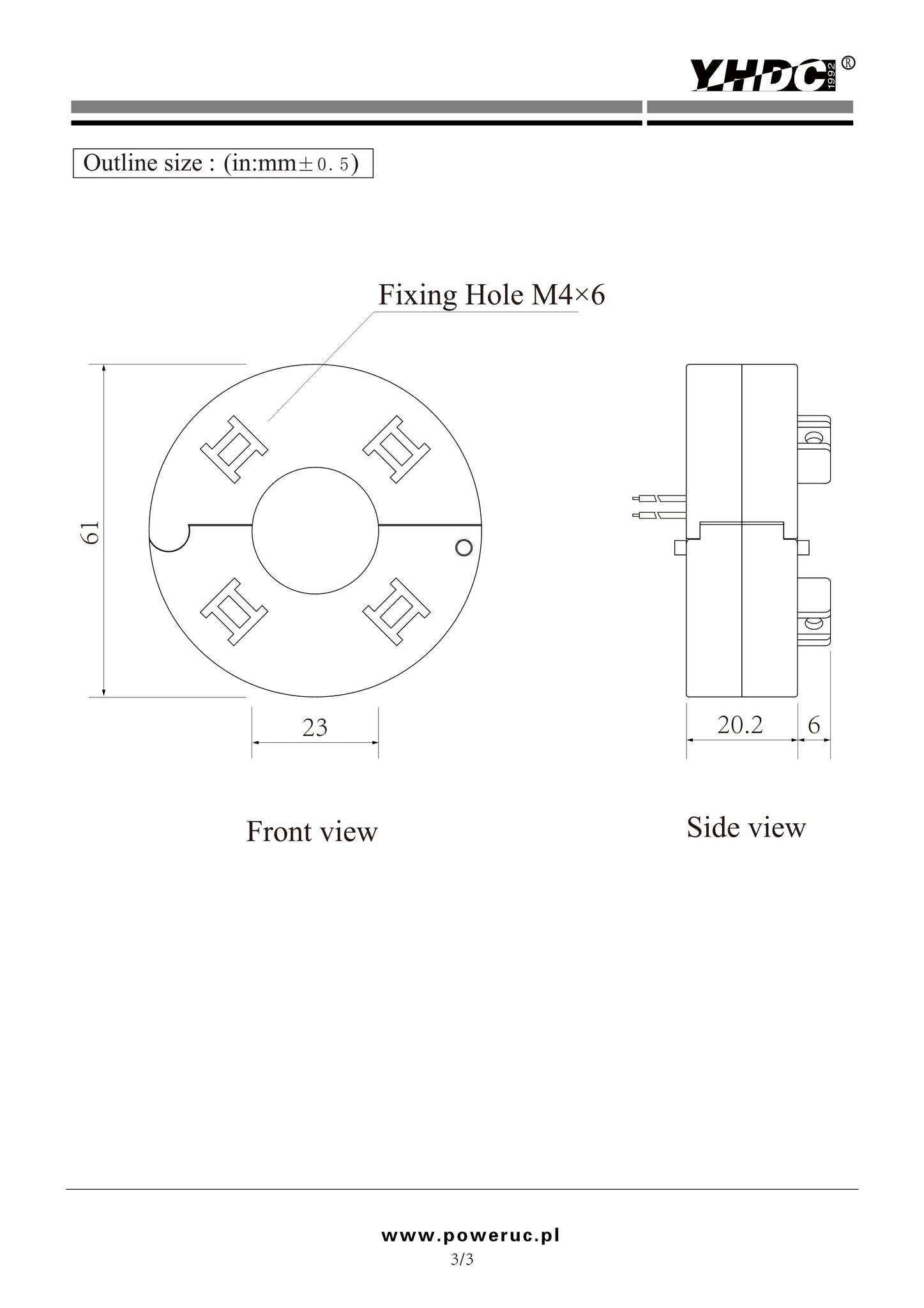

Split core structure, suspended installation, Round window shape: round, diameter: 23mm.  Secondary leading wire output, leads length: 1.5m.

Technical Indicators:
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: 720V
Work temperature: -30°C ~ +65°C
Storage temperature: -40°C ~ +85°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: AC 3.5KV/1min

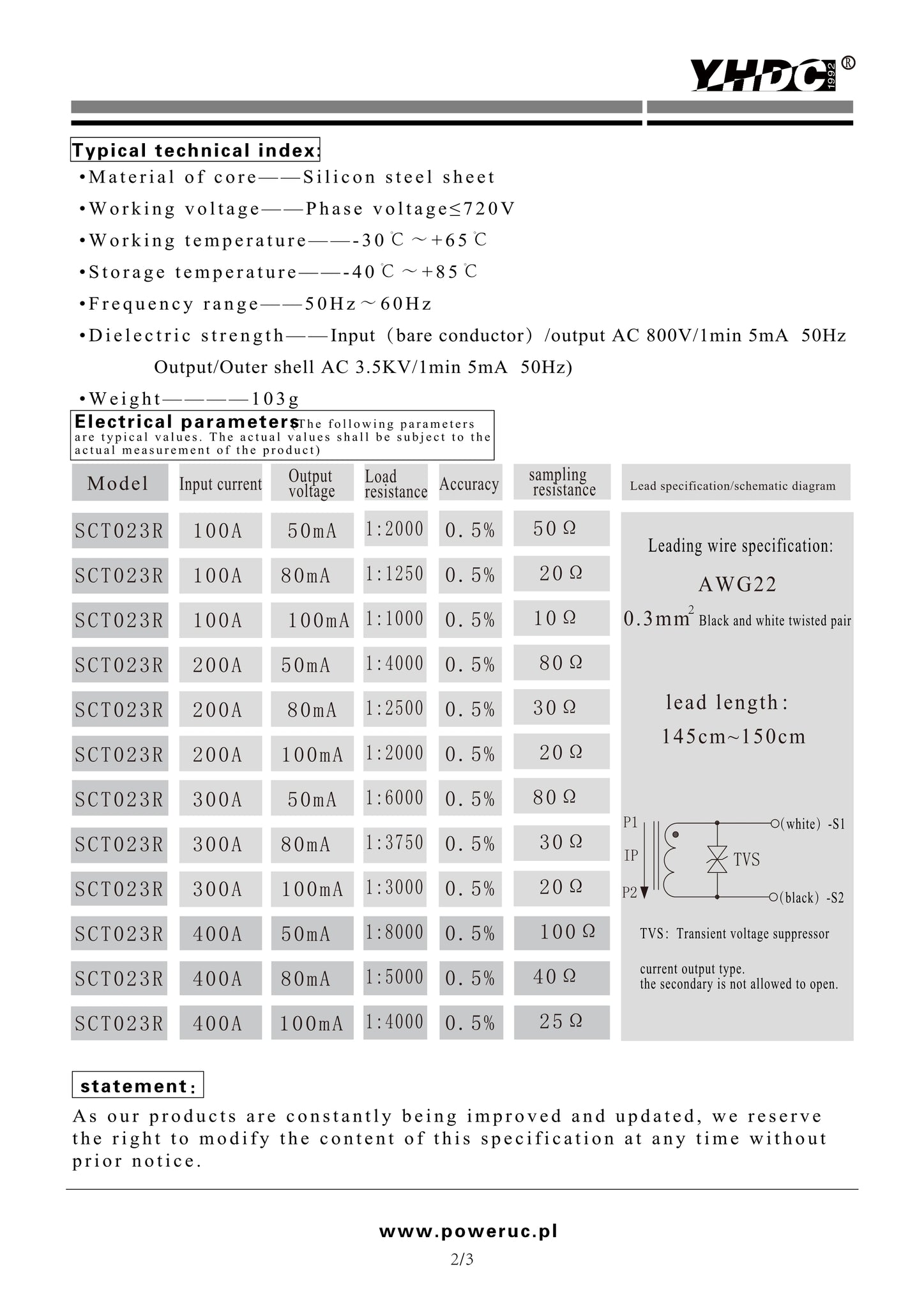

Electric Parameter:
