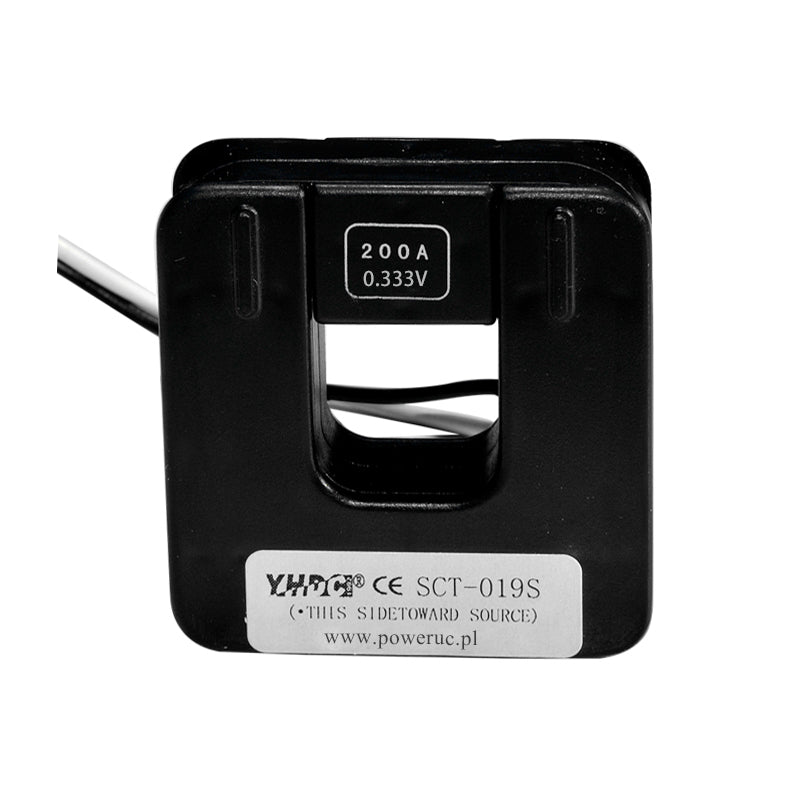

Split Core Current Transformer SCT019S rated input 300A rated output 0.333V - PowerUC

Split Core Current Transformer SCT019S rated input 50A 100A 150A 200A 250A 300A rated output 33mA/0.333V

PowerUC

Shipping calculated at checkout.
Only 5 left!

Model：SCT019S

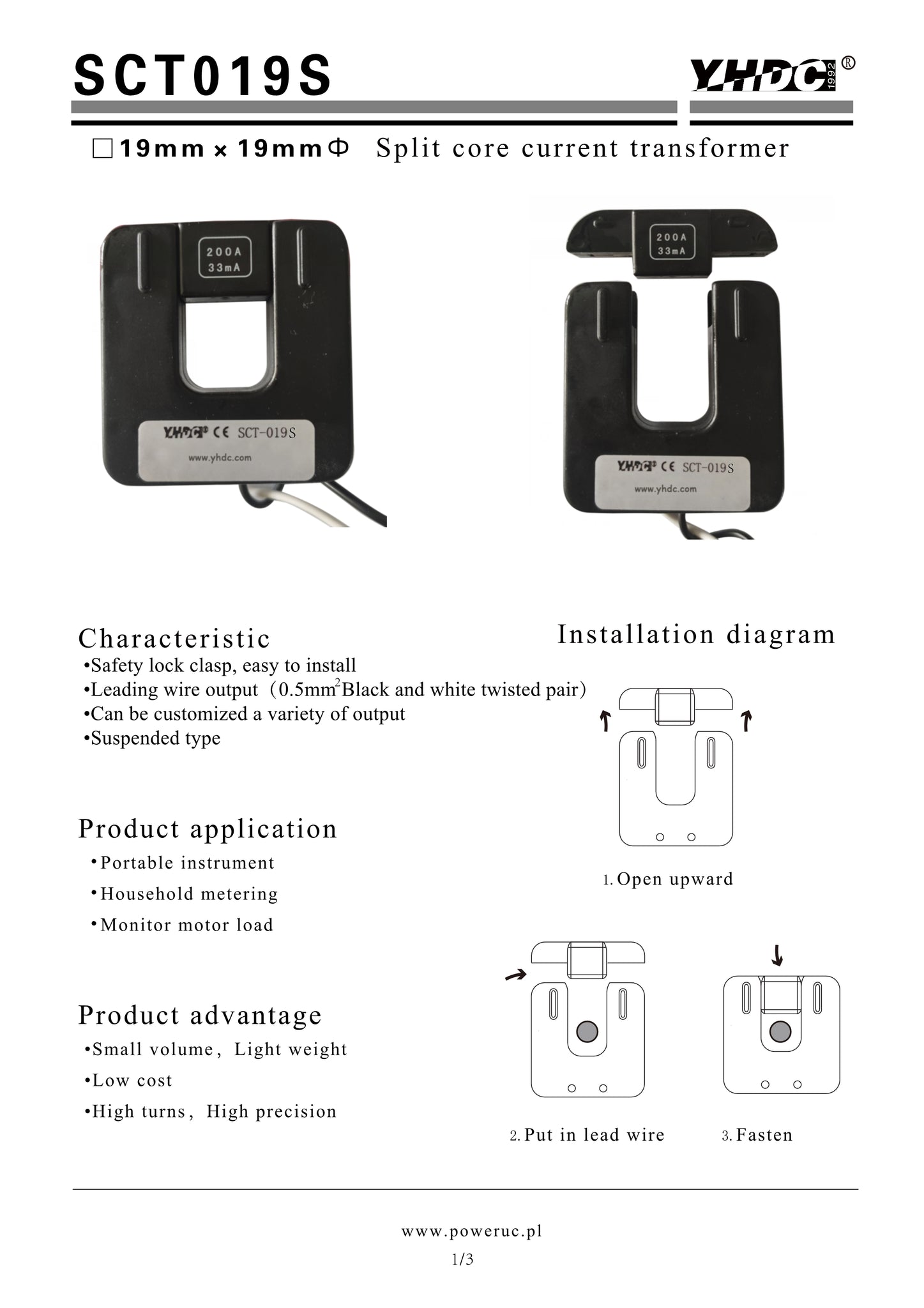

Characteristics:

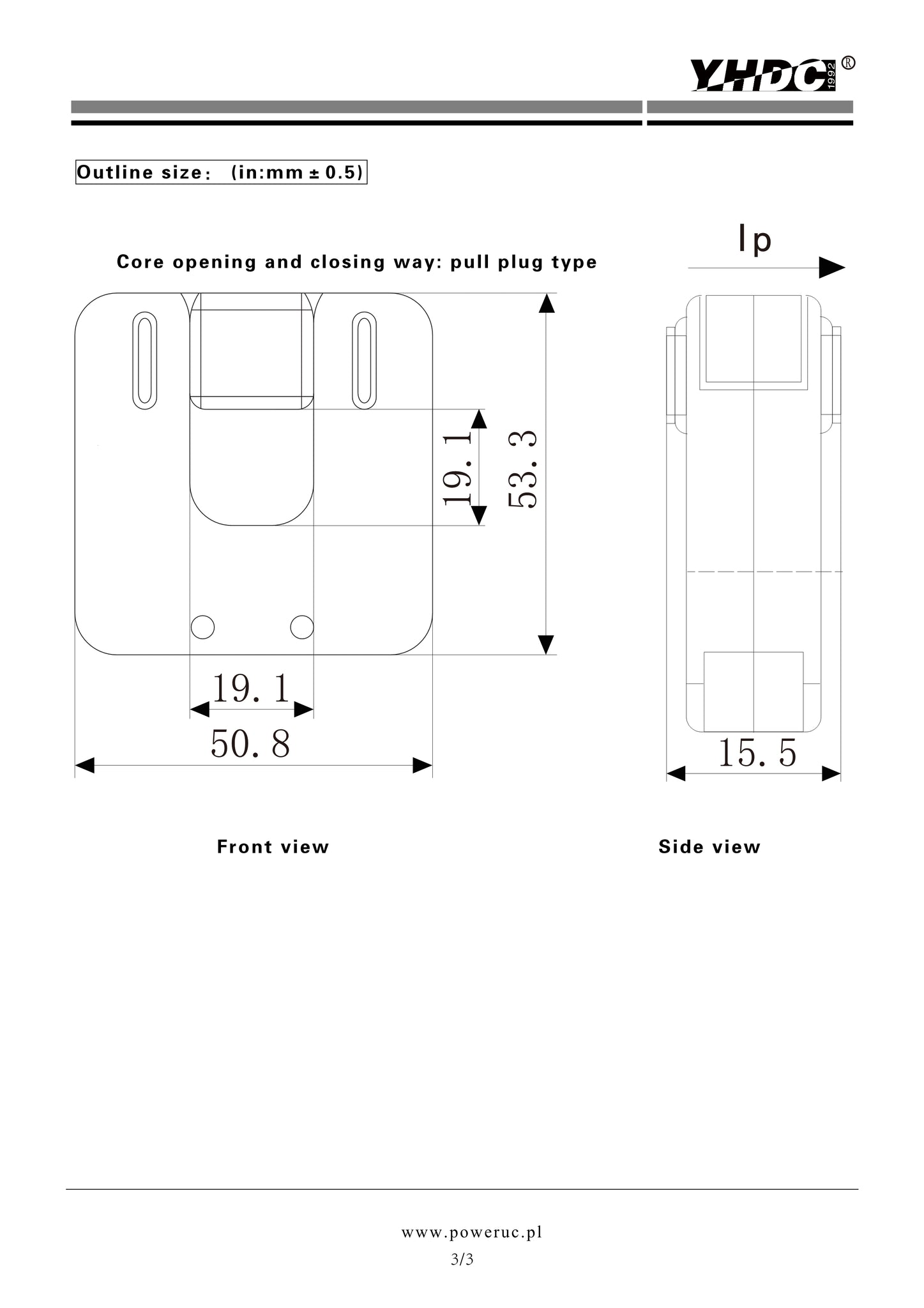

Opening size 19mmx19mm, compatible to foreign products. Epoxy encapsulated, leading wire output(2m).

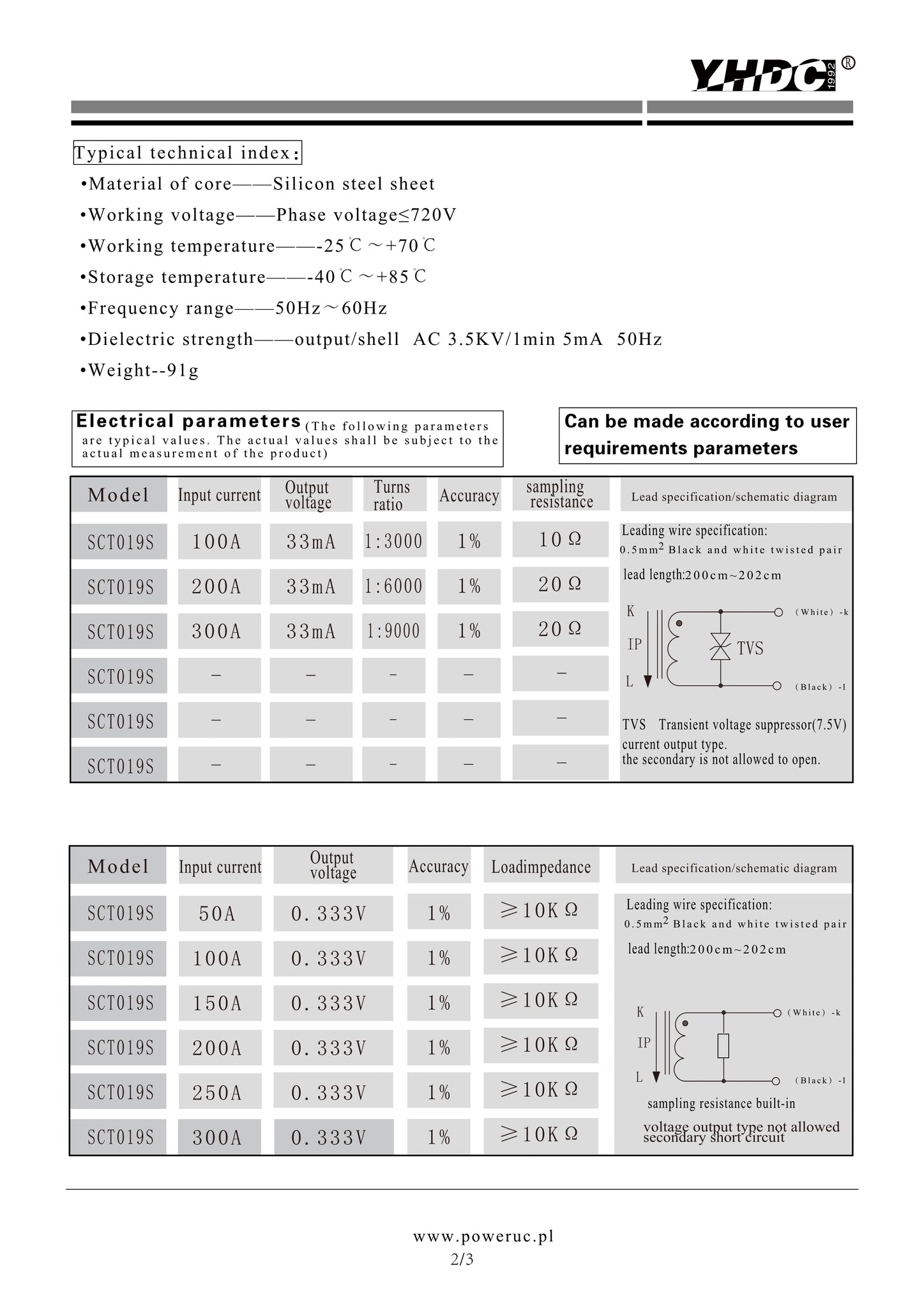

Technical index :

Material of core:Silicon steel sheet

Flame resistance:UL94-V0

Work voltage:720V

Operating temperature:-25℃～+70℃

Storage temperature:-40℃～+85℃

Frequency range:50Hz～60Hz

Dielectric strength:：3.5KV 50Hz 1min


Electric parameters:

DOWNLOAD

We Also Recommend

Split core current transformer SCT013 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA / 1V / 0.333V - PowerUC

Split core current transformer SCT013 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA / 1V / 0.333V
Split Core Current Transformer SCT010T-D rated input 5A 10A 20A 30A 50A rated output 1V 3V 5V - PowerUC

Split Core Current Transformer SCT010T-D rated input 5A 10A 20A 30A 50A rated output 1V 3V 5V
Split Core Current Transformer SCT024TS rated input 50A 100A 150A 200A 250A 300A 400A rated output 0.1A/1A/5A/0.333V

Split Core Current Transformer SCT024TS rated input 50A 100A 150A 200A 250A 300A 400A rated output 0.1A/1A/5A/0.333V
Split Core Current Transformer SCT006 rated input 1A 5A 10A 20A rated output 1mA 2.5mA 5mA 10mA 20mA 25mA - PowerUC

Split Core Current Transformer SCT006 rated input 1A 5A 10A 20A rated output 1mA 2.5mA 5mA 10mA 20mA 25mA

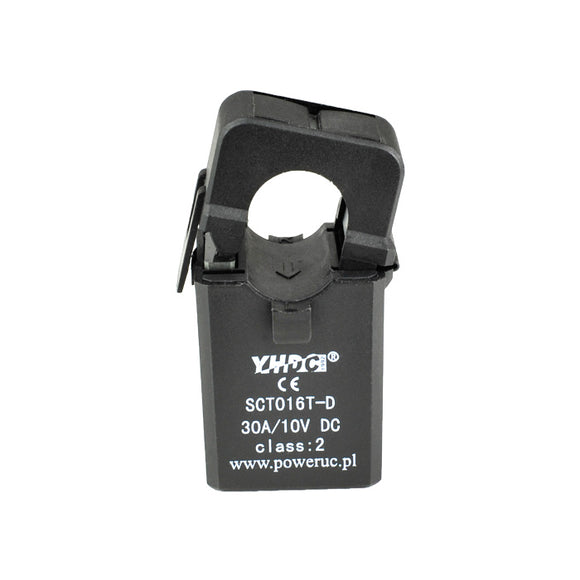

Split Core Current Transformer SCT016T-D rated input 10A 20A 30A 50A 80A 100A rated output 1V 3V 5V - PowerUC
