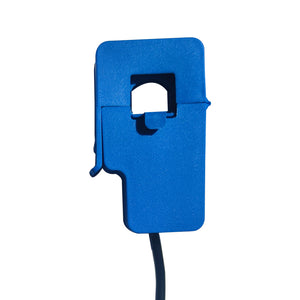

Split core current transformer SCT013G-D rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 1V

Split core current transformer SCT013G-D rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 1V

PowerUC

Shipping calculated at checkout.
Only 50 left!

Model：SCT013G-D

Characteristics：



Safety lock clasp, easy to install, Audio connector output, Lead output，Length can be customized, Mounted mounting.



Technical index:

Material of core : Ferrite

Operating temperature:-25℃～+60℃

Storage temperature:-30℃～+90℃

Work voltage:≤720V

Work Frequency :50Hz-1KHz

Dielectric strength:3.5KV 50Hz 1min

Technical Parameters table：

DOWNLOAD
