Split core current transformer SCT013-RJ11 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA/0.333V/1V

Split core current transformer SCT013-RJ11 rated input 5A 10A 15A 20A 25A 30A 50A 60A 100A rated output 50mA/0.333V/1V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

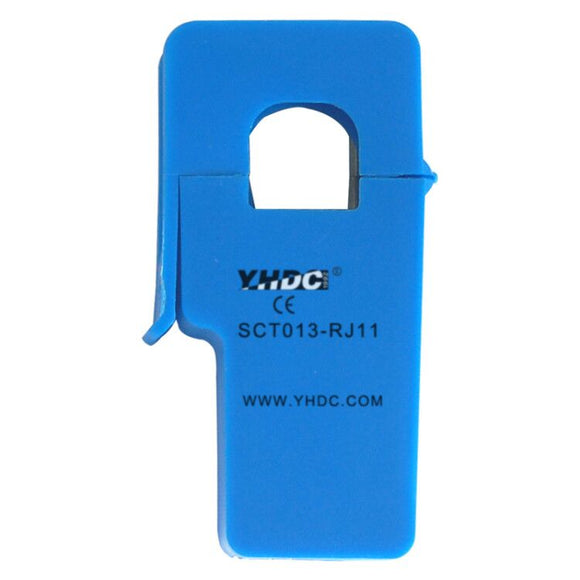

Model: SCT013-RJ11

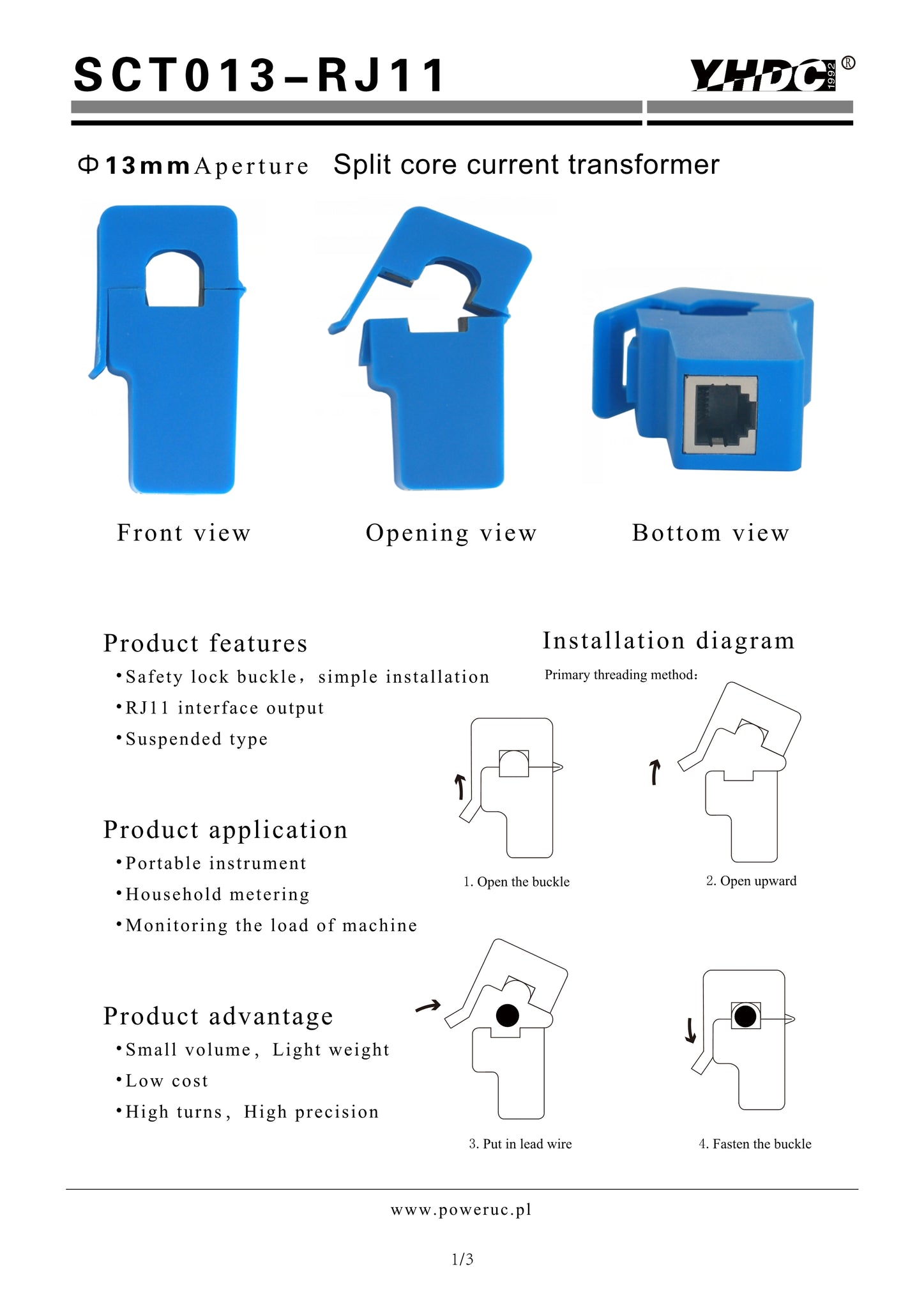

Opening size 13mm * 13mm, leading wire 1 metre, standard Φ3.5 three core plug output, current & voltage two types of output. (Patent No. ZL 2015 3 0060067.X）

To see RJ45 output series, please click here

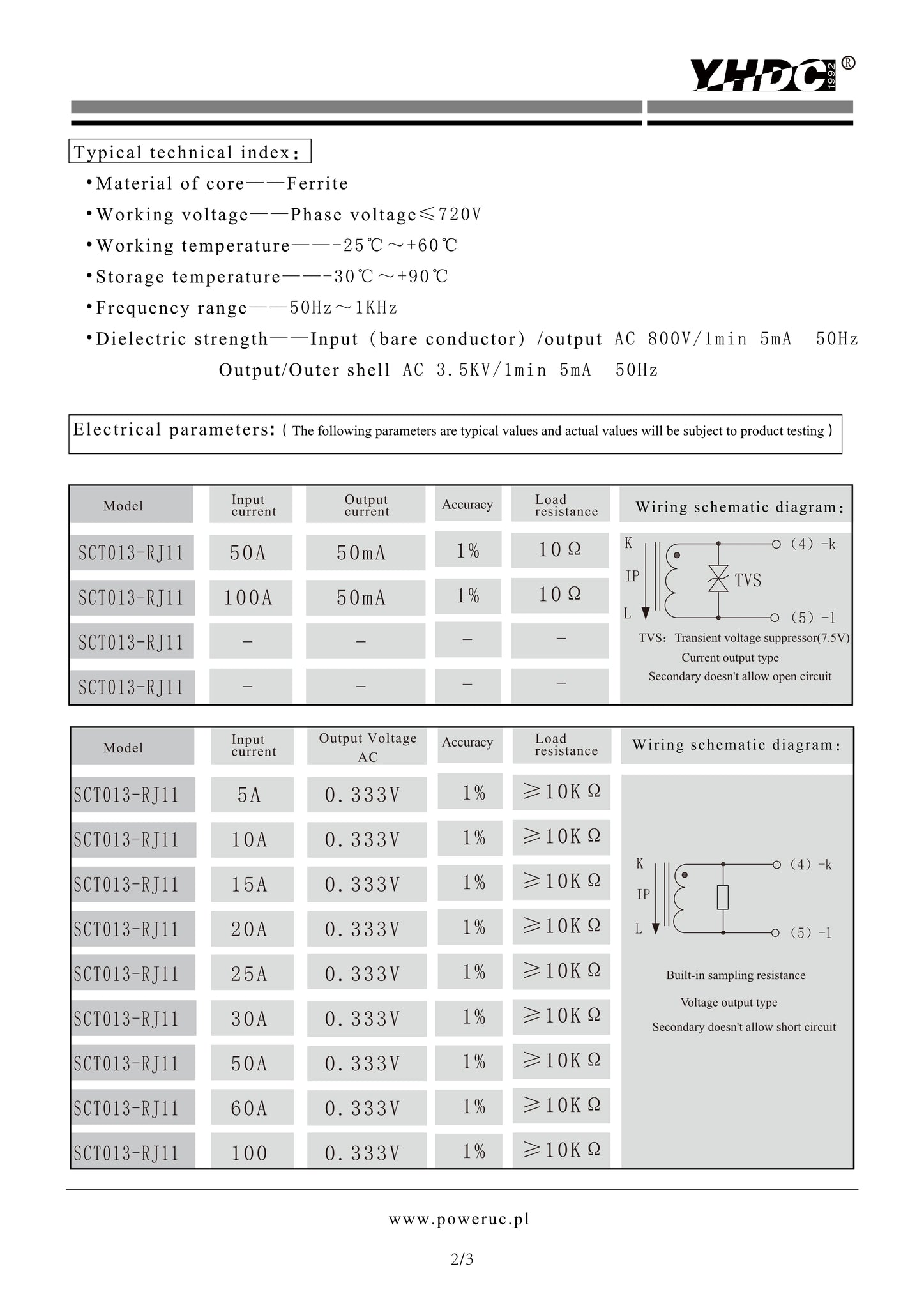

Technical characteristics:

Suspended mounting,leading wire output

Standard: GB1208-2006

Operating temperature: -25℃～+60℃

Storage temperature: -30℃～+90℃

Work voltage: ≤720V

Frequency range: 50Hz-1KHz

Dielectric strength: 3.5KV 50Hz 1min

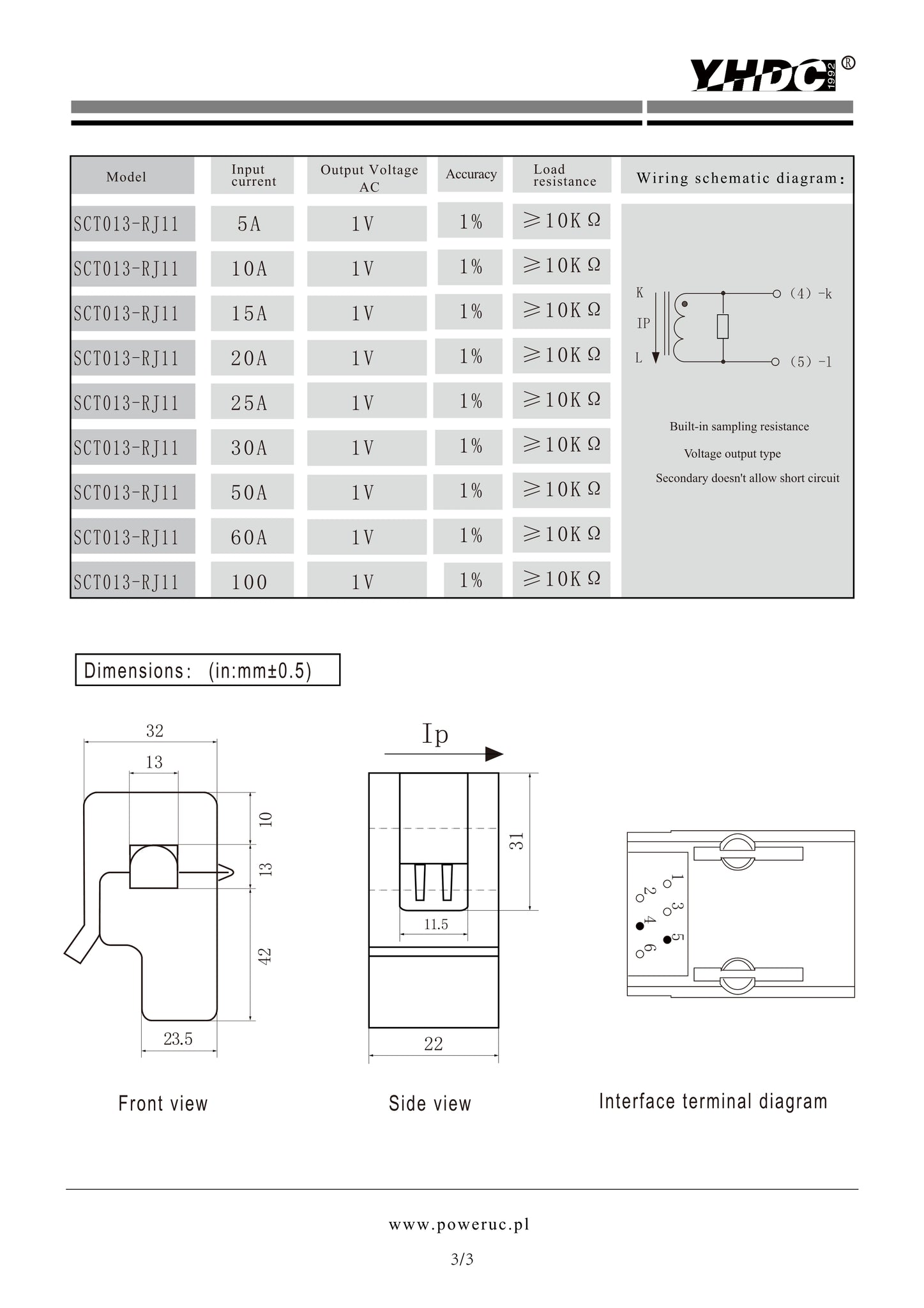

Specification:



DOWNLOAD
