Split Core Current Transformer SCT010T rated input 10A 20A 30A 50A 60A 80A rated output 10mA 16.6mA 20mA 25mA 26.6mA 40mA 50mA 80mA / 0.333V 1V 3V 5V

PowerUC

Shipping calculated at checkout.

Quantity

Only 5 left!

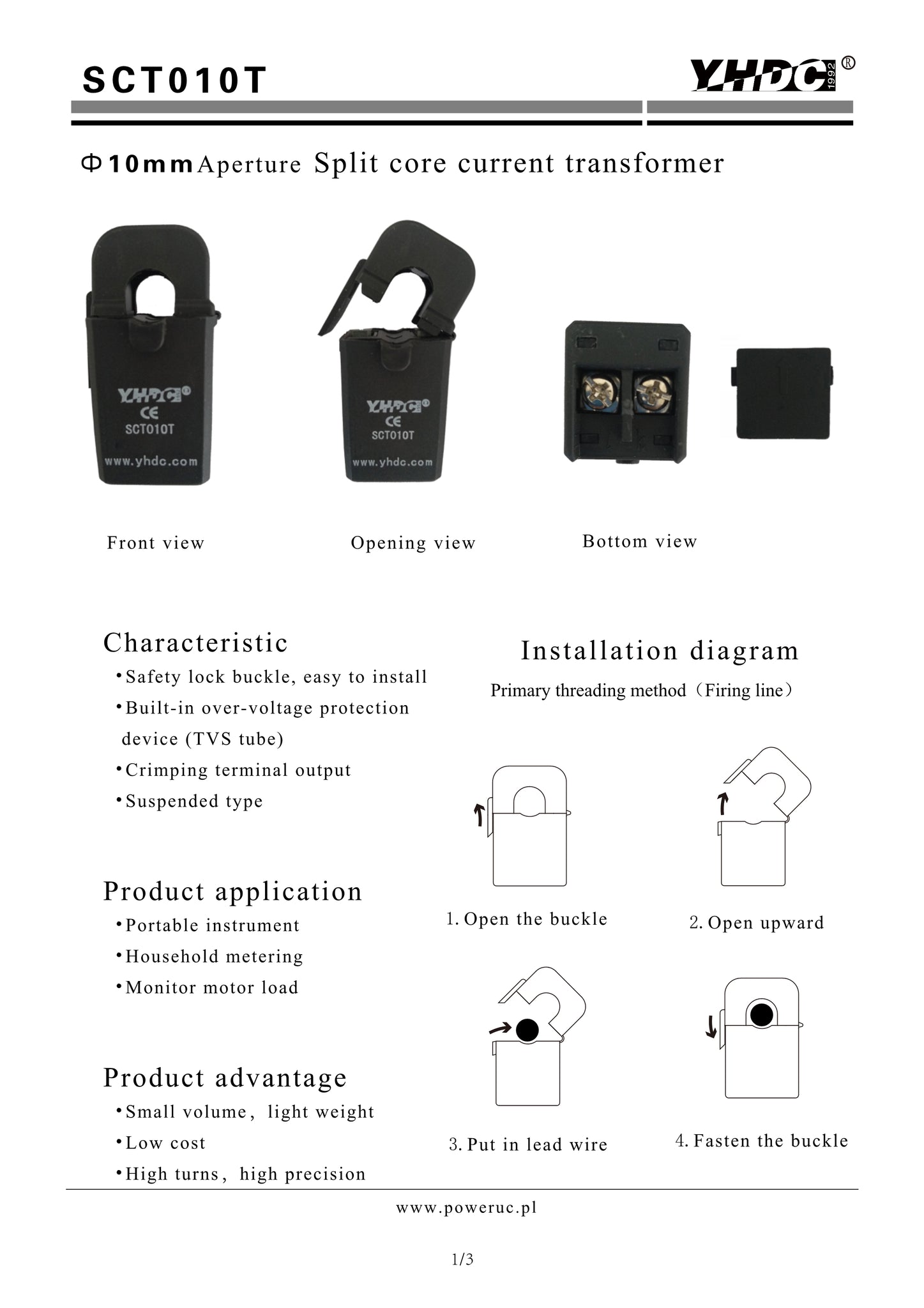

Characteristics：

Safety lock buckle, easy installation,screw terminal output.

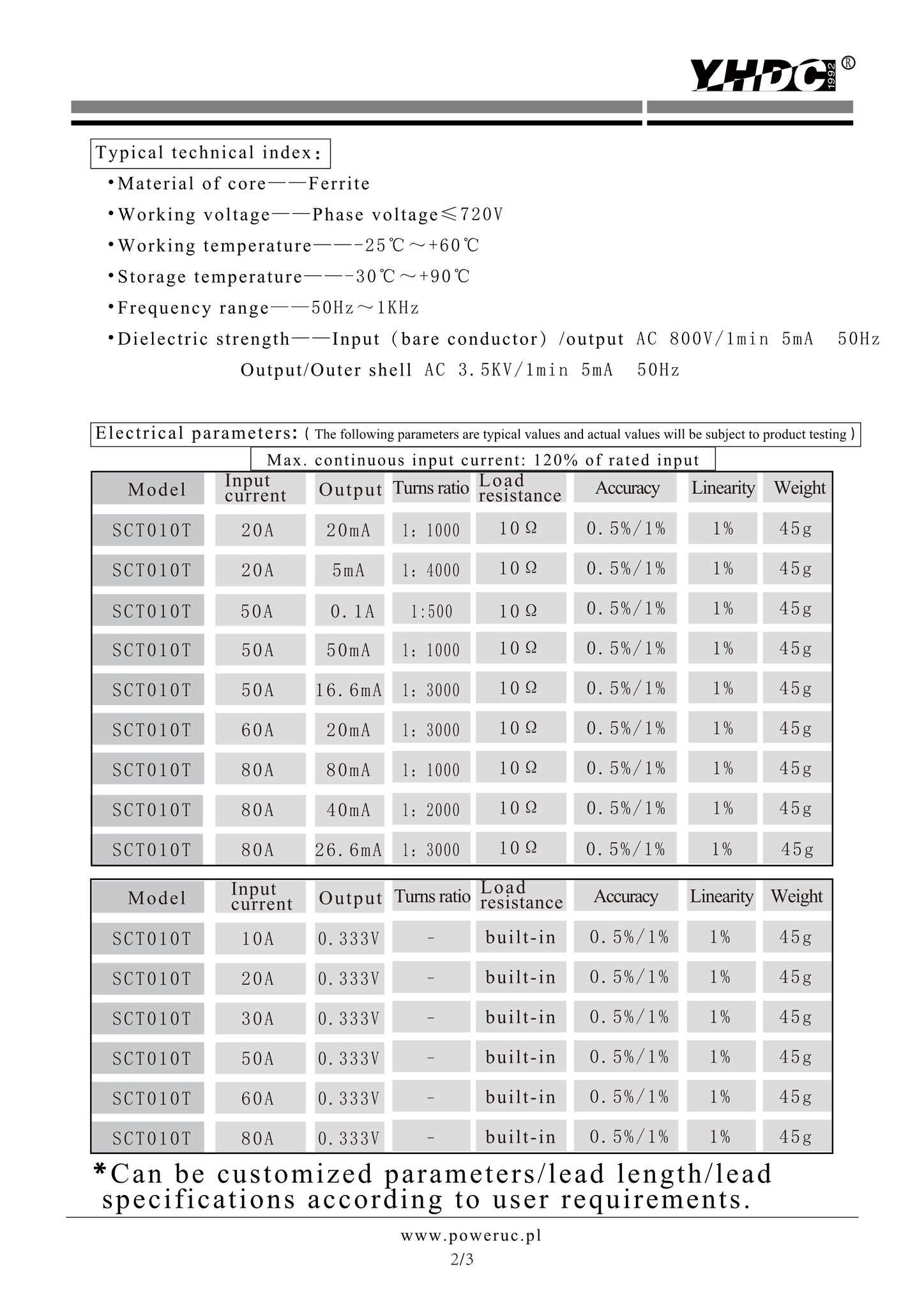

Technical index：

Mounting type: Free hanging (In-Line)

Material of core：Ferrite

Applicable standards：GB20840-2014

Operating temperature：-25℃～+60℃

Storage temperature：-30℃～+90℃

Frequency range：50Hz-1KHz

Waterproof grade: IP00

Dielectric strength：Input (bare conductor)/Output AC 800V/1min 50Hz

Output/housingAC 3.5KV/1min 50Hz

DOWNLOAD-CURRENT TYPE OUTPUT
