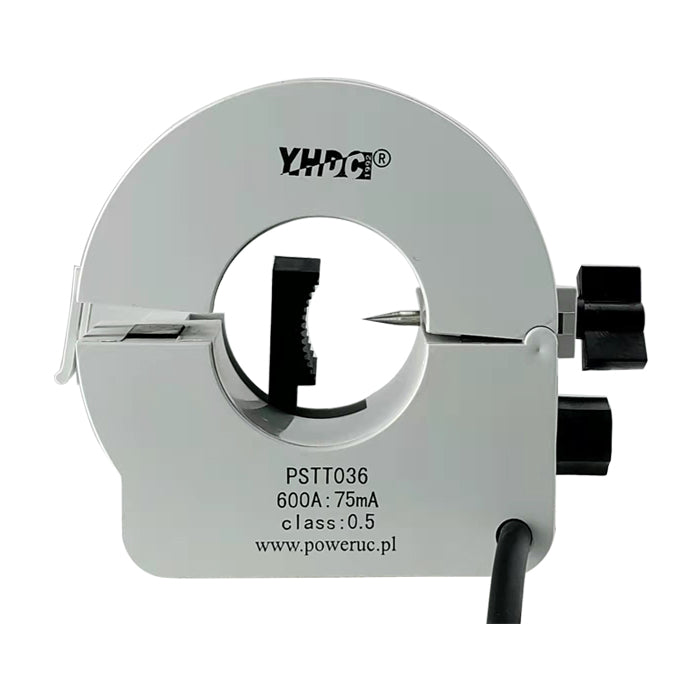

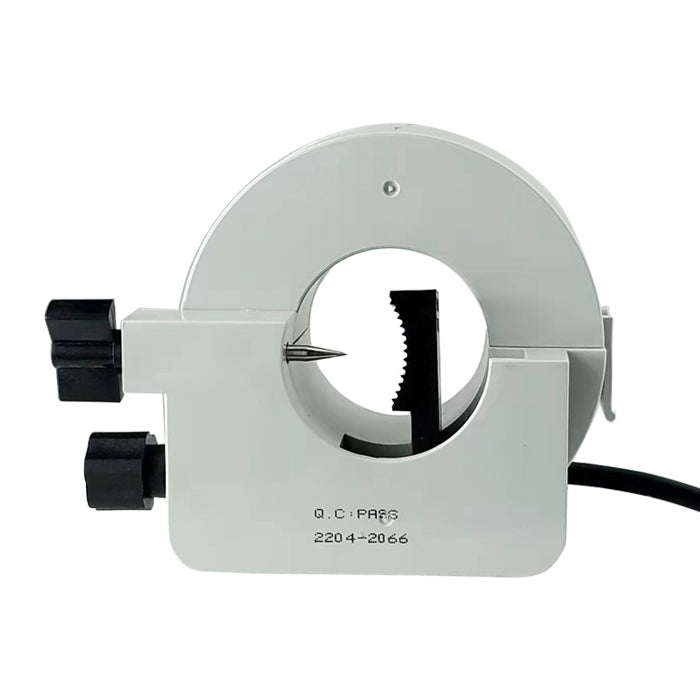

Puncture current transformer PSTT036 Rated input 100A 200A 300A 400A 500A 600A Rated output 0.1A
Puncture current transformer PSTT036 Rated input 100A 200A 300A 400A 500A 600A Rated output 0.1A
Puncture current transformer PSTT036 Rated input 100A 200A 300A 400A 500A 600A Rated output 0.1A

Puncture current transformer PSTT036 Rated input 100A 200A 300A 400A 500A 600A Rated output 0.1A

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model: PSTT036

Characteristics:

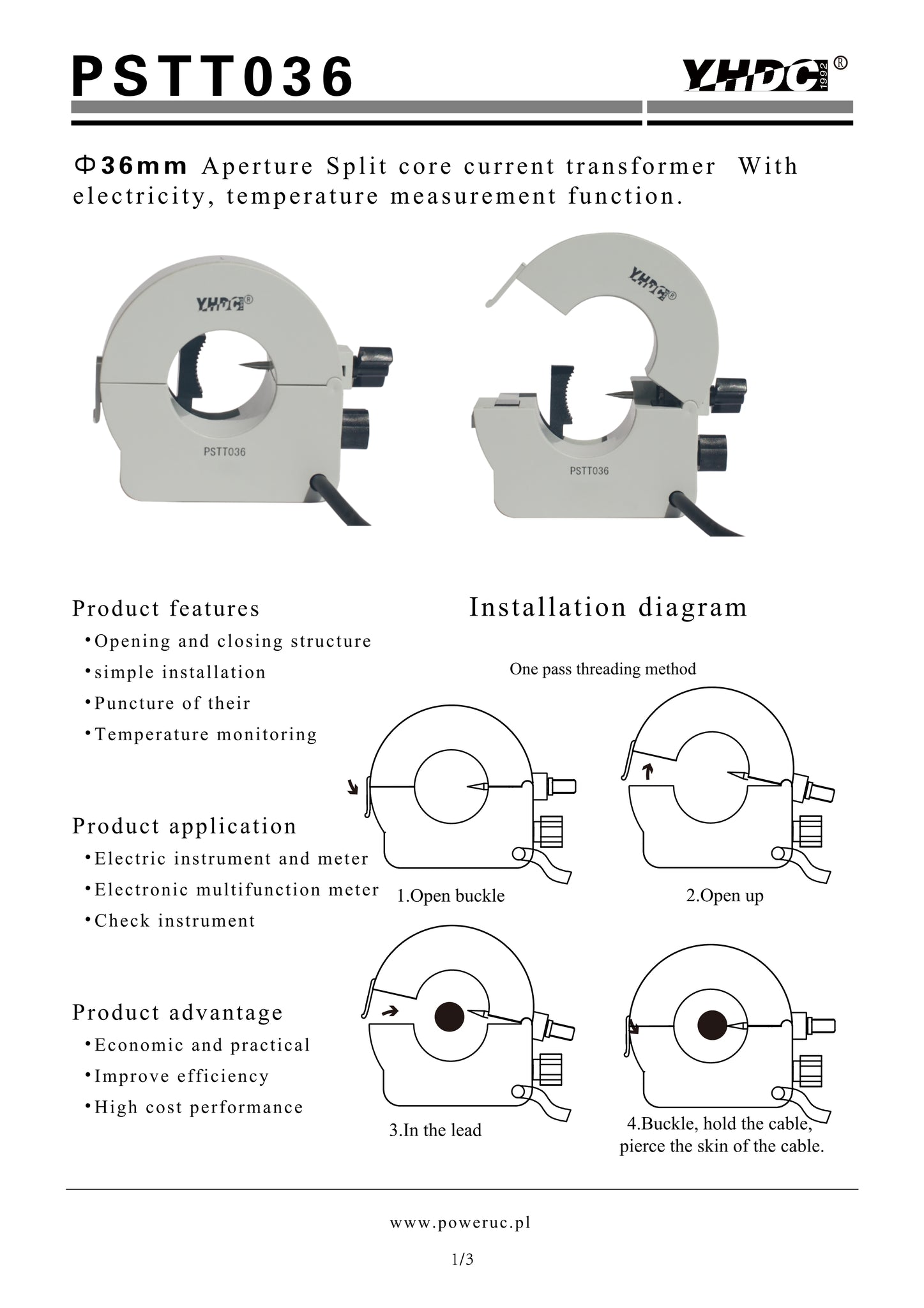

Ф36mm Aperture Split core current transformer With electricity, temperature measurement function.

Technical index:

Material of core: Nanocrystalline

Work voltage:Phase voltage≤720V

Operating temperature: 30℃～+75℃

Storage temperature: -40℃～+85℃

Frequency range: 20Hz-20KHz

Dielectric strength: Output/shell AC 3.5KV/1min 5mA 50Hz

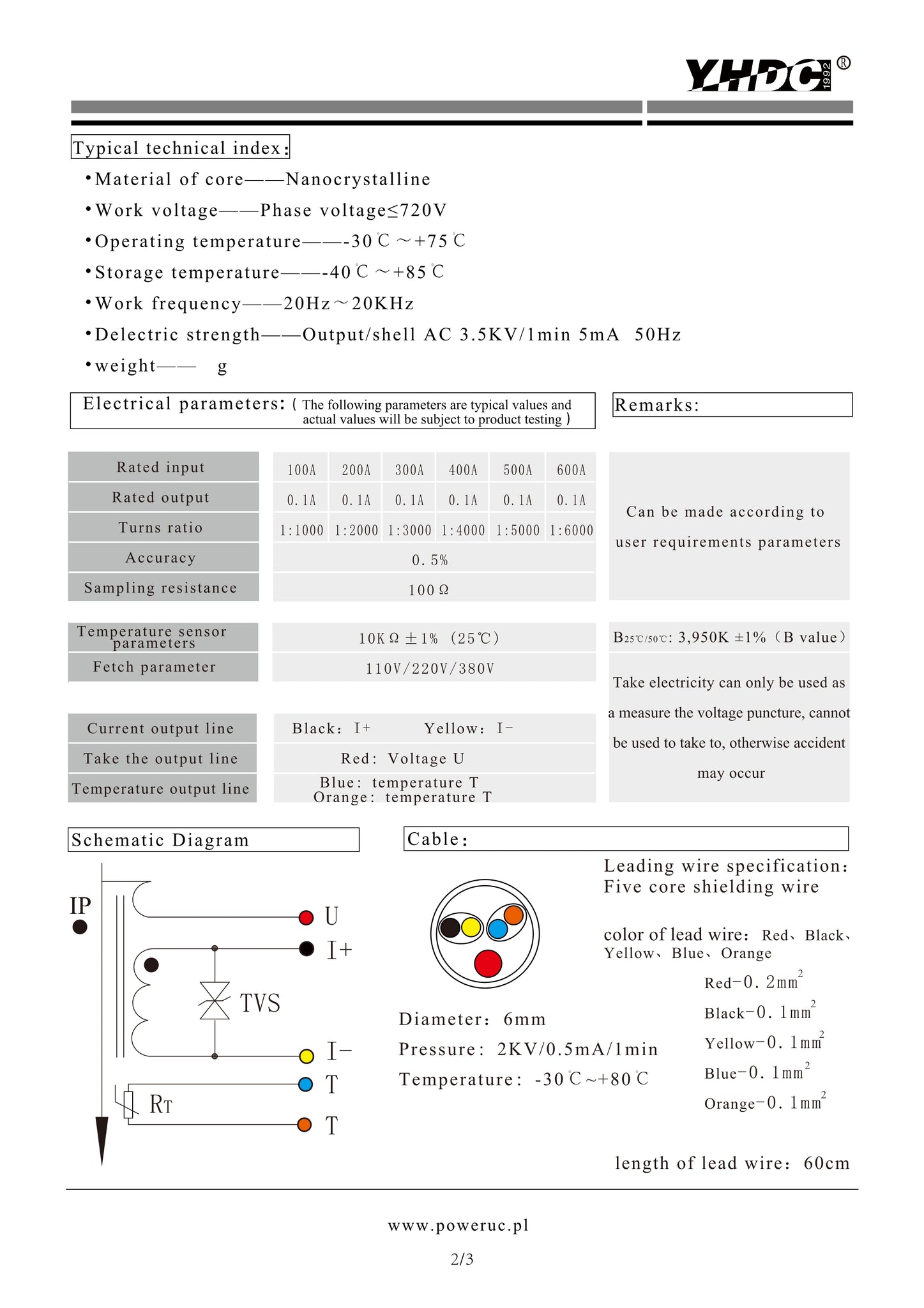

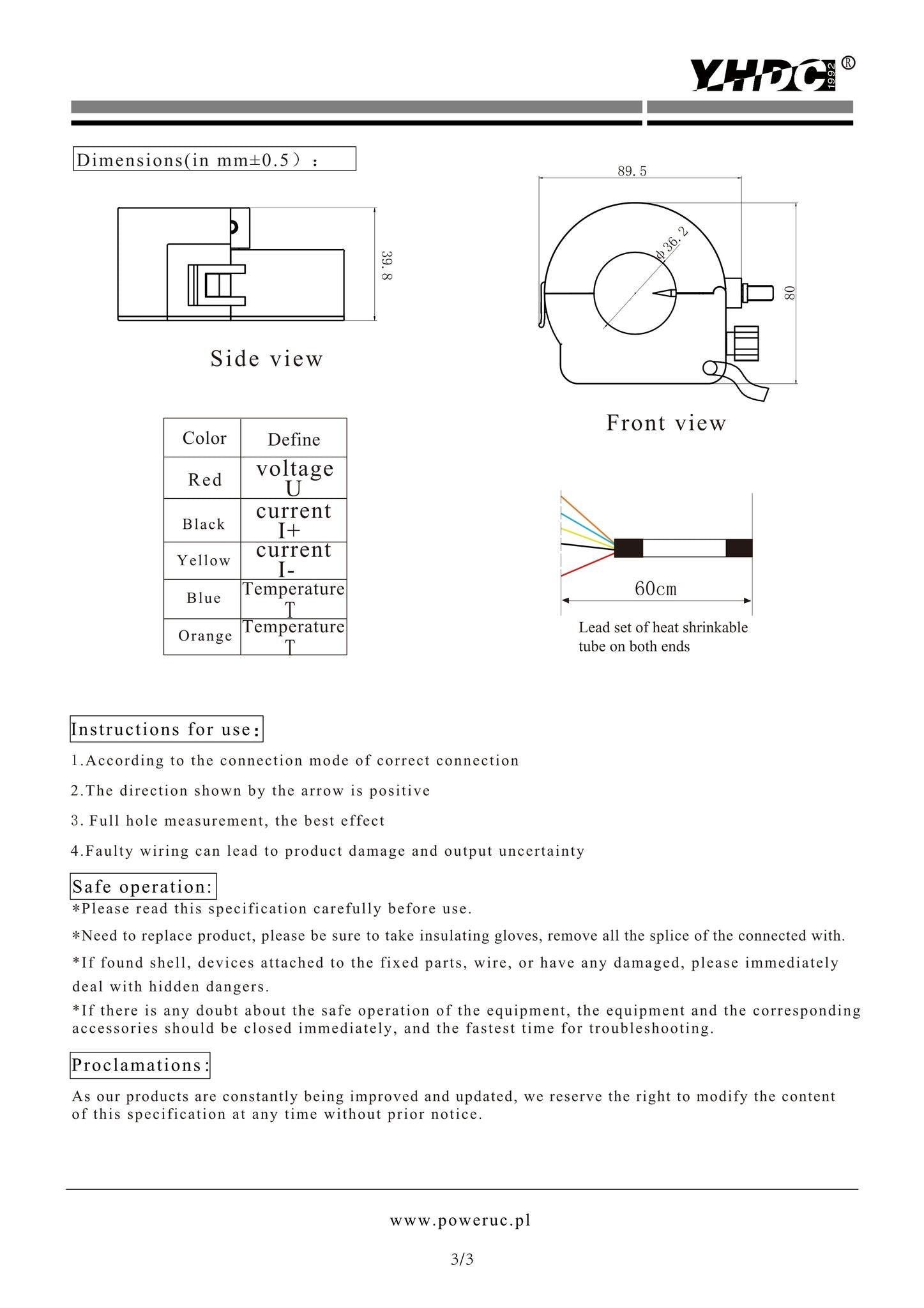

Specifications:





DOWNLOAD
