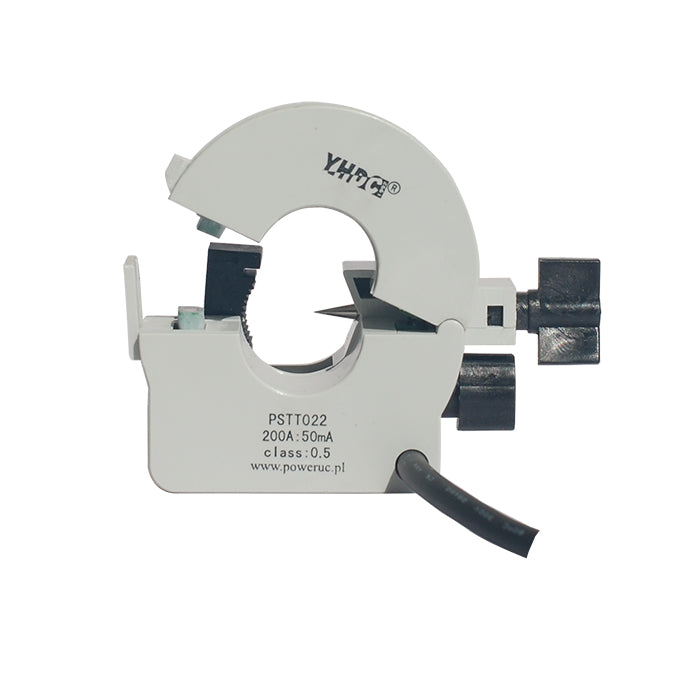

Puncture current transformer PSTT022 Rated input 100A 200A 300A 400A Rated output 0.1A
Puncture current transformer PSTT022 Rated input 100A 200A 300A 400A Rated output 0.1A

Puncture current transformer PSTT022 Rated input 100A 200A 300A 400A Rated output 0.1A

PowerUC

Shipping calculated at checkout.
Only 1 left!

Model: PSTT022

Characteristics:

Ф22mm Aperture Split core current transformer With electricity, temperature measurement function.

Technical index:

Material of core: Nanocrystalline

Work voltage:Phase voltage≤720V

Operating temperature: 30℃～+75℃

Storage temperature: -40℃～+85℃

Frequency range: 20Hz-20KHz

Dielectric strength: Output/shell AC 3.5KV/1min 5mA 50Hz

Weigh:130g

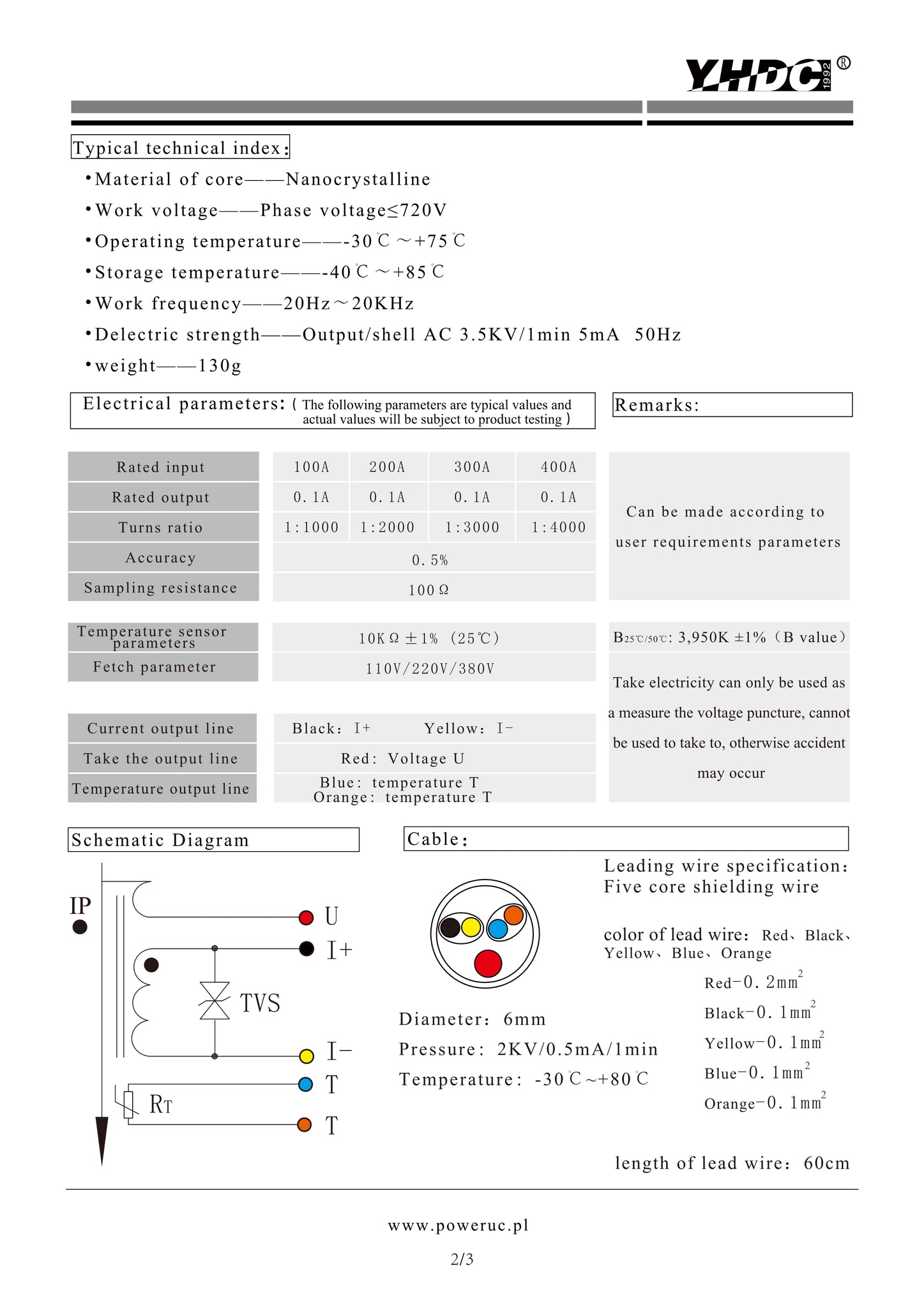

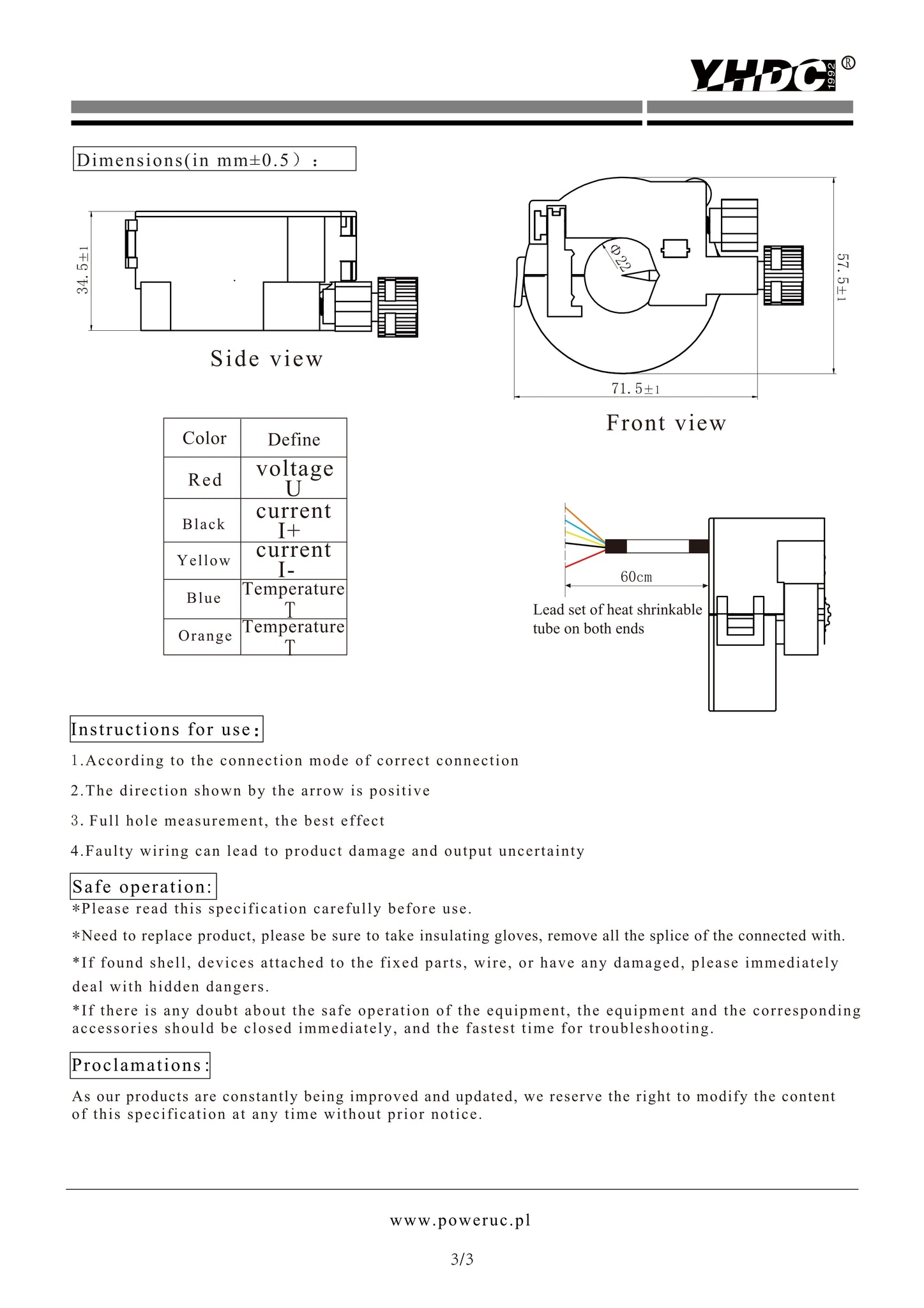

Specifications:
