Split core current transformer SCT018R rated input 50A 75A 100A 150A 200A rated output 5A

Split core current transformer SCT018R rated input 50A 75A 100A 150A 200A rated output 5A

PowerUC

Shipping calculated at checkout.
Only 50 left!

Model: SCT018R

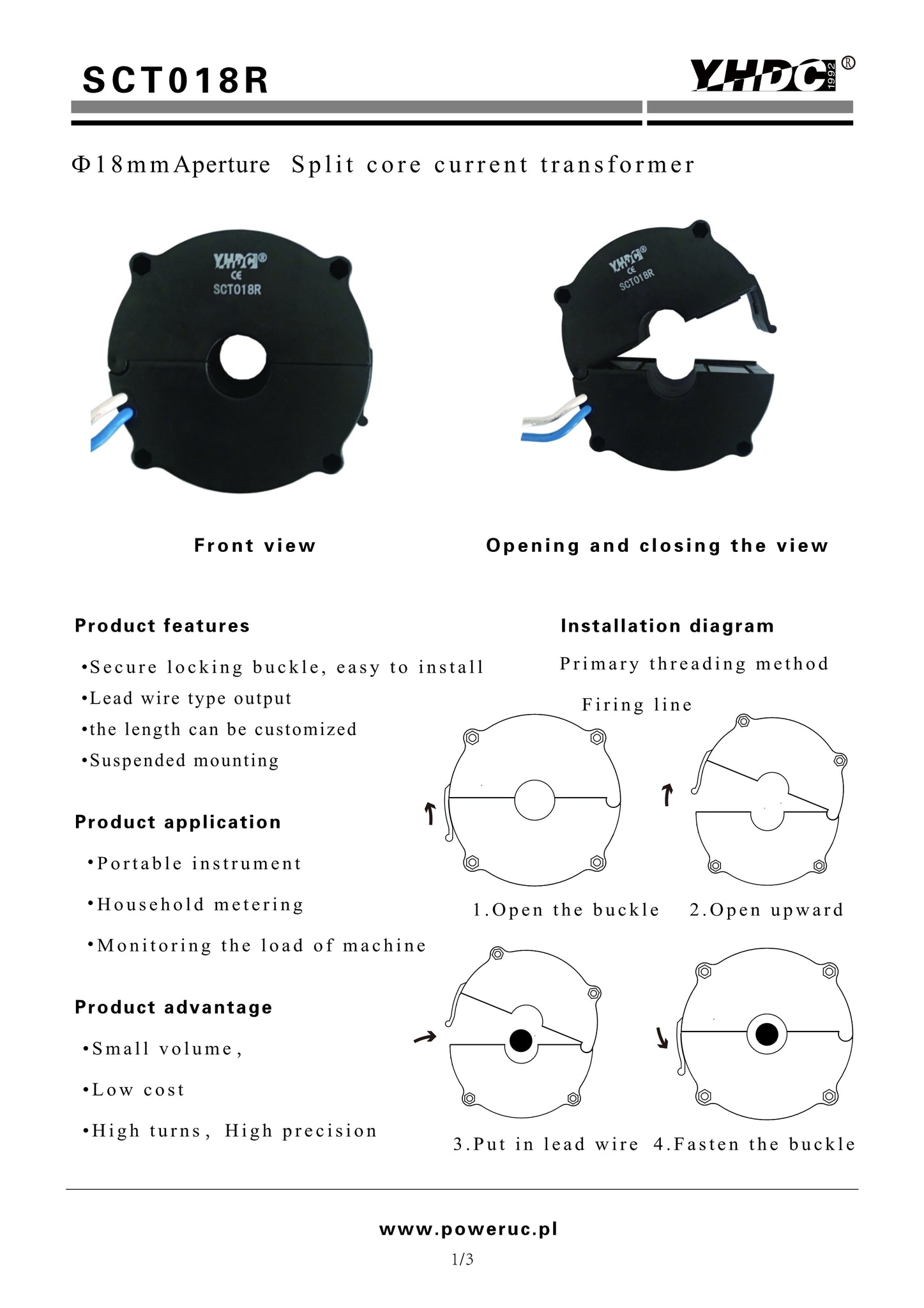

Characteristic:

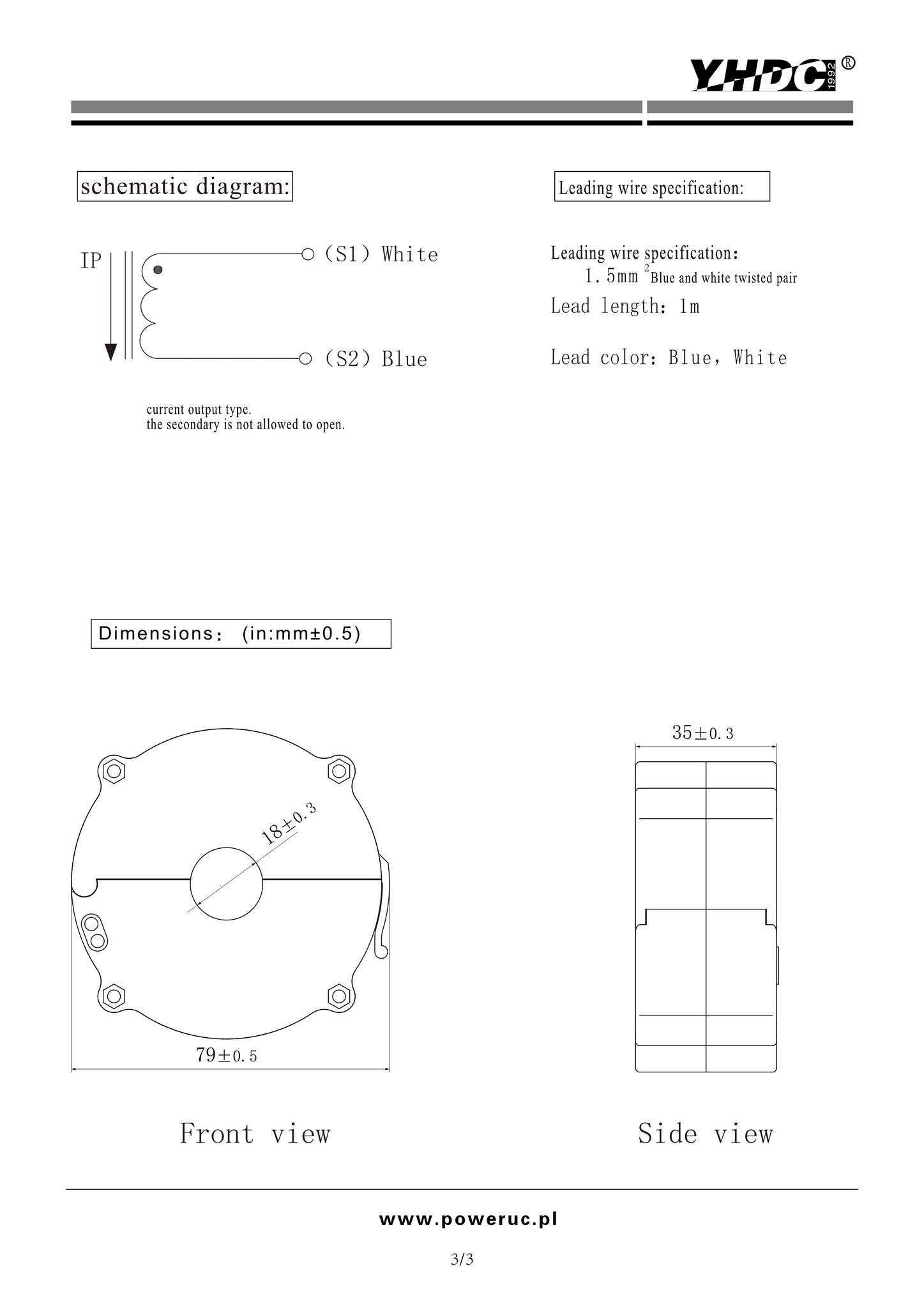

split iron core structure, suspended installation. Round window shape, diameter 18mm. Secondary lead output, length 1.5m.

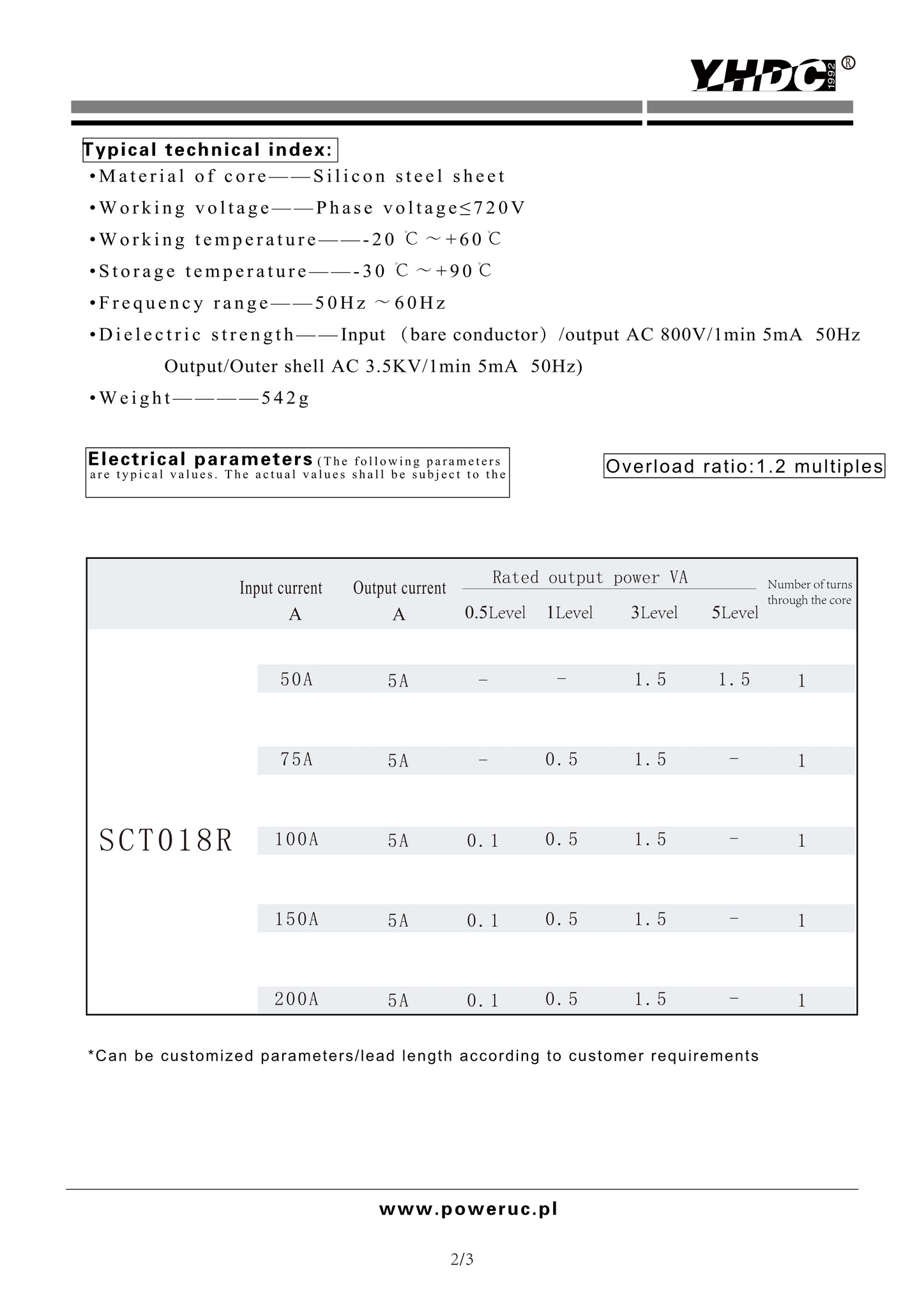

Technical Indicators:
Material of core: Silicon steel sheet
Fire resistance property: UL94-V0
Work voltage: 720V
Work temperature: -20°C ~ +60°C
Storage temperature: -30°C ~ +90°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: AC 3.5KV/1min

Electric Parameter:

DOWNLOAD
