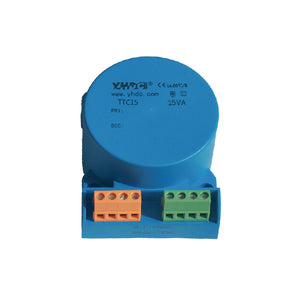

TTC series toroidal transformer TTC15 110V×2/115V×2/120V×2  15VA

TTC series toroidal transformer TTC15 110V×2/115V×2/120V×2 15VA

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Model:TTC15

Characteristics:

Small magnetic flux leakage , low noise , high efficiency, low no-load current , suitable for advanced audio , medical equipment , military engineering , precision compact instrument , using imported high quality ring core .  Basic index : input : double : 110V , 115V , 120V

Technical Index:

Technical Index:Plate installation

Flame resistance: UL94-V0

Insulation Class: B

Work temperature: -30°C ~ +60°C

Frequency range : 50Hz ~ 60Hz

Dielectric strength:  PRI/SEC:4KV 50Hz 1min 5mA

                                SEC/SEC 500V 50Hz 1min 5mA

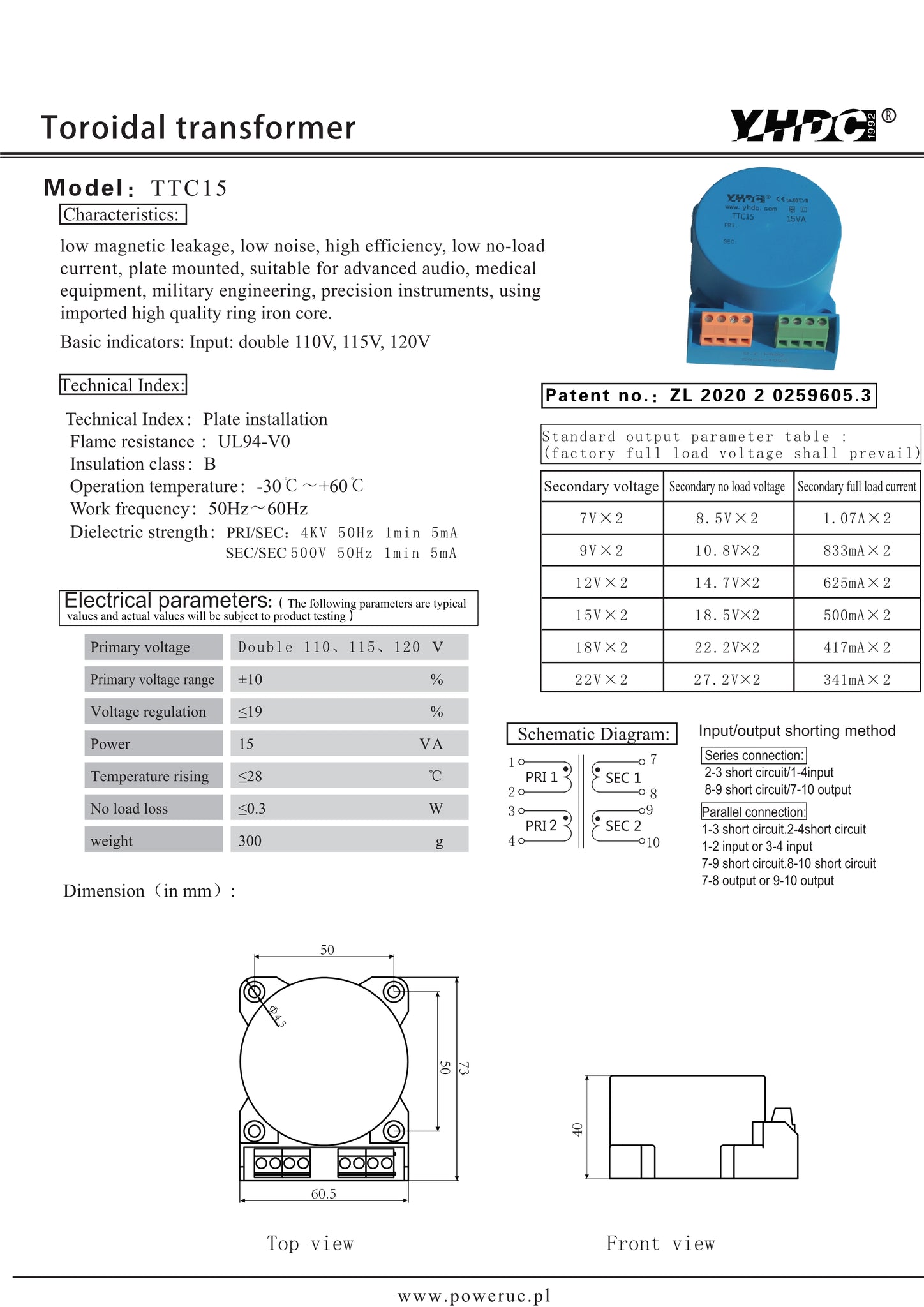

Electrical Parameters:
