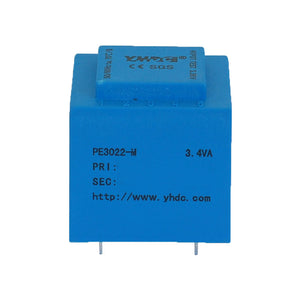

PE series PCB safety isolation transformer PE3022-M     110V/220V/230V     3.4VA - PowerUC

PE series PCB safety isolation transformer PE3022-M 110V/220V/230V/380V 3.4VA

PowerUC

  • €2,61
    Unit price per
Shipping calculated at checkout.

Only 2 left!

Model:PE3022-M

Characteristics:

1.Vacuum epoxy sealing, 100℃/6 hours high temperature aging, life span of 20 years, high electrical strength

2.High quality H18 silicon steel sheet, low temperature rise, high efficiency

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees no deformation

4.Reasonable structure, convenient installation, low noise, strong seismic, sealed waterproof, moisture-proof

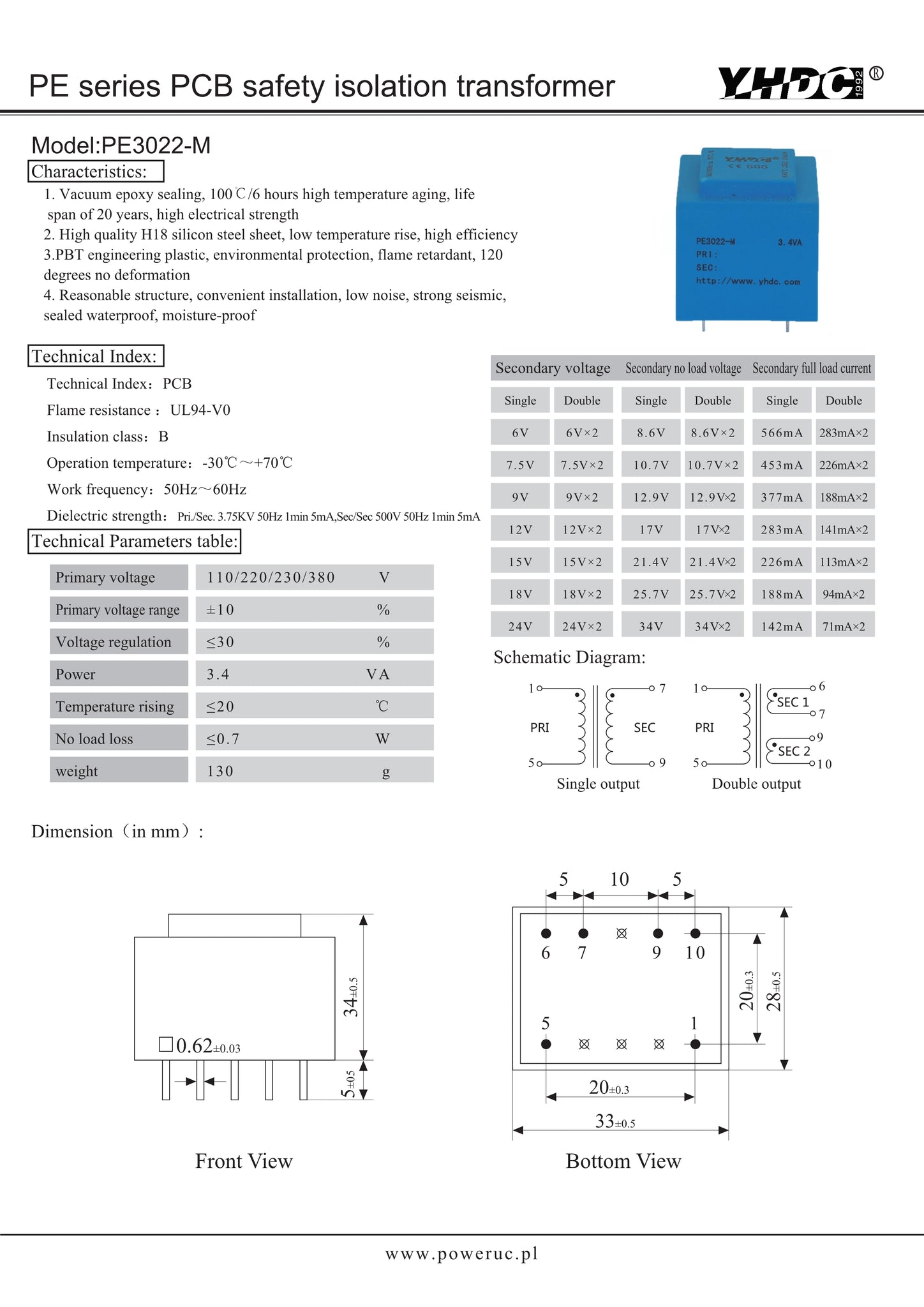

Technical Index:

Technical Index:PCB

Flame resistance :UL94-V0

Insulation class:B

Operation temperature:-30℃~+70℃

Work frequency:50Hz~60Hz

Dielectric strength:Pri./Sec. 3.75KV 50Hz 1min 5mA,Sec/Sec 500V 50Hz 1min 5mA
