PE series PCB safety isolation transformer PE2412-I 110V/220V/230V/380V    0.6VA - PowerUC

PE series PCB safety isolation transformer PE2412-I Primary voltage 110V/220V/230V/380V Power 0.6VA

PowerUC

  • €1,47
    Unit price per
Shipping calculated at checkout.

Only 3 left!

Model:PE2412-I

Characteristics:

1.Vacuum epoxy resin encapsulated,100℃ /6 hours high temperature aging, long woking life 20 years and with high delectric strength.

2.High quality H18 silicon steel sheet, low temperature rise, high efficiency.

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees no deformation.

4.Reasonable structure, convenient installation, low noise, strong seismic, sealed waterproof, moisture-proof.

Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B
Operation temperature: -30°C ~ +70°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength: 3.75KV 50Hz 1min

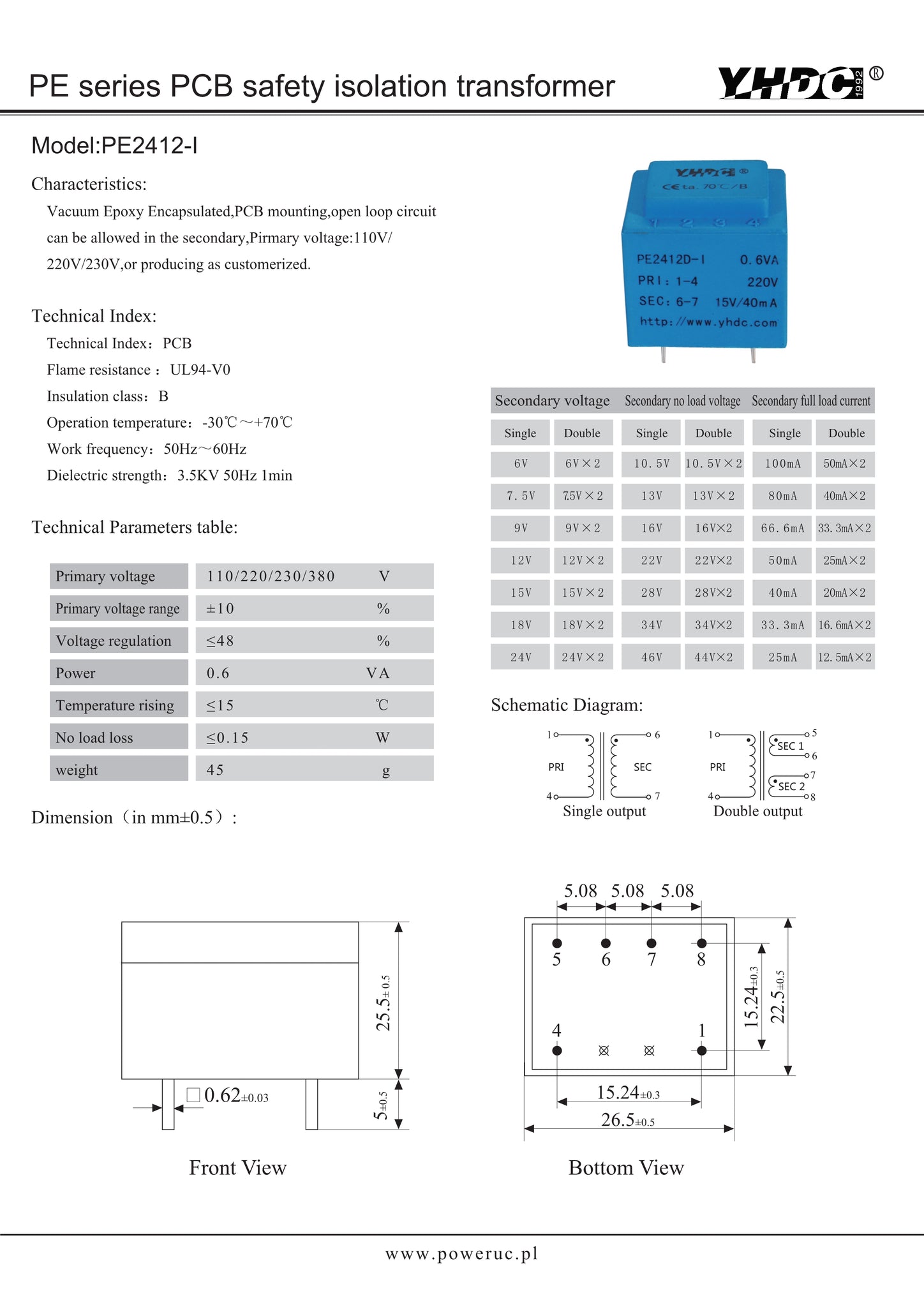

Technical parameters table:

DOWNLOAD
