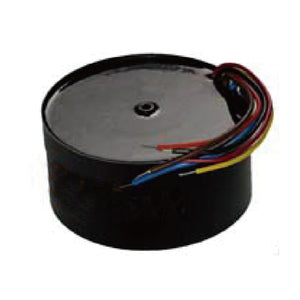

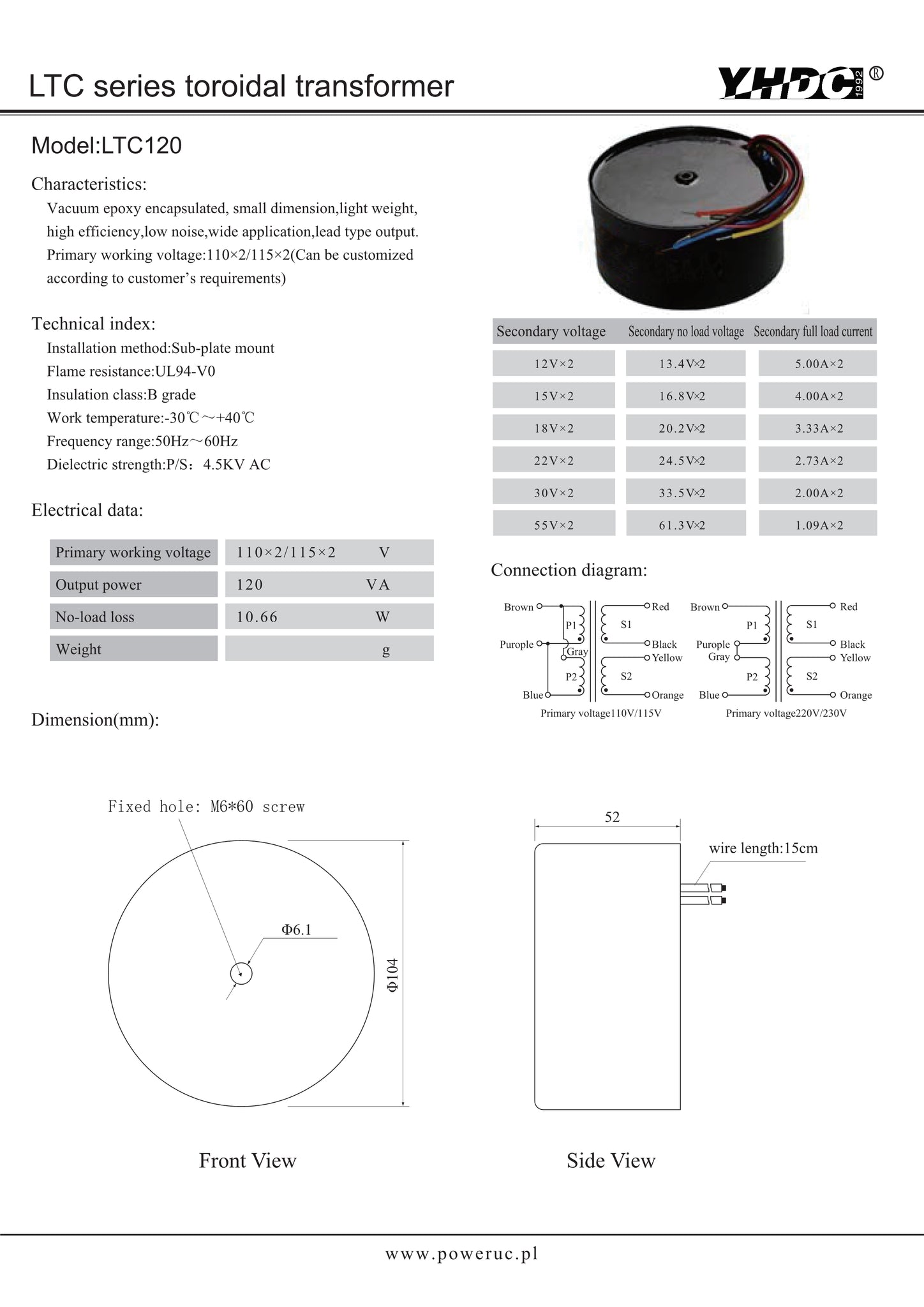

LTC series toroidal transformer LTC120 110V×2/115V×2 120VA
Vacuum epoxy encapsulated, small dimension, light weight, high efficiency, low noise, wide application, lead type output, primary working voltage: 110x2/115x2 (can be customized according to customer's requirements).
Mounting type: sub-plate mount
Flame resistance: UL94-V0
Insulation Class: B grade
Work temperature: -30°C ~ +40°C
Frequency range : 50Hz ~ 60Hz
Dielectric strength:P/S: 4.5KV AC
