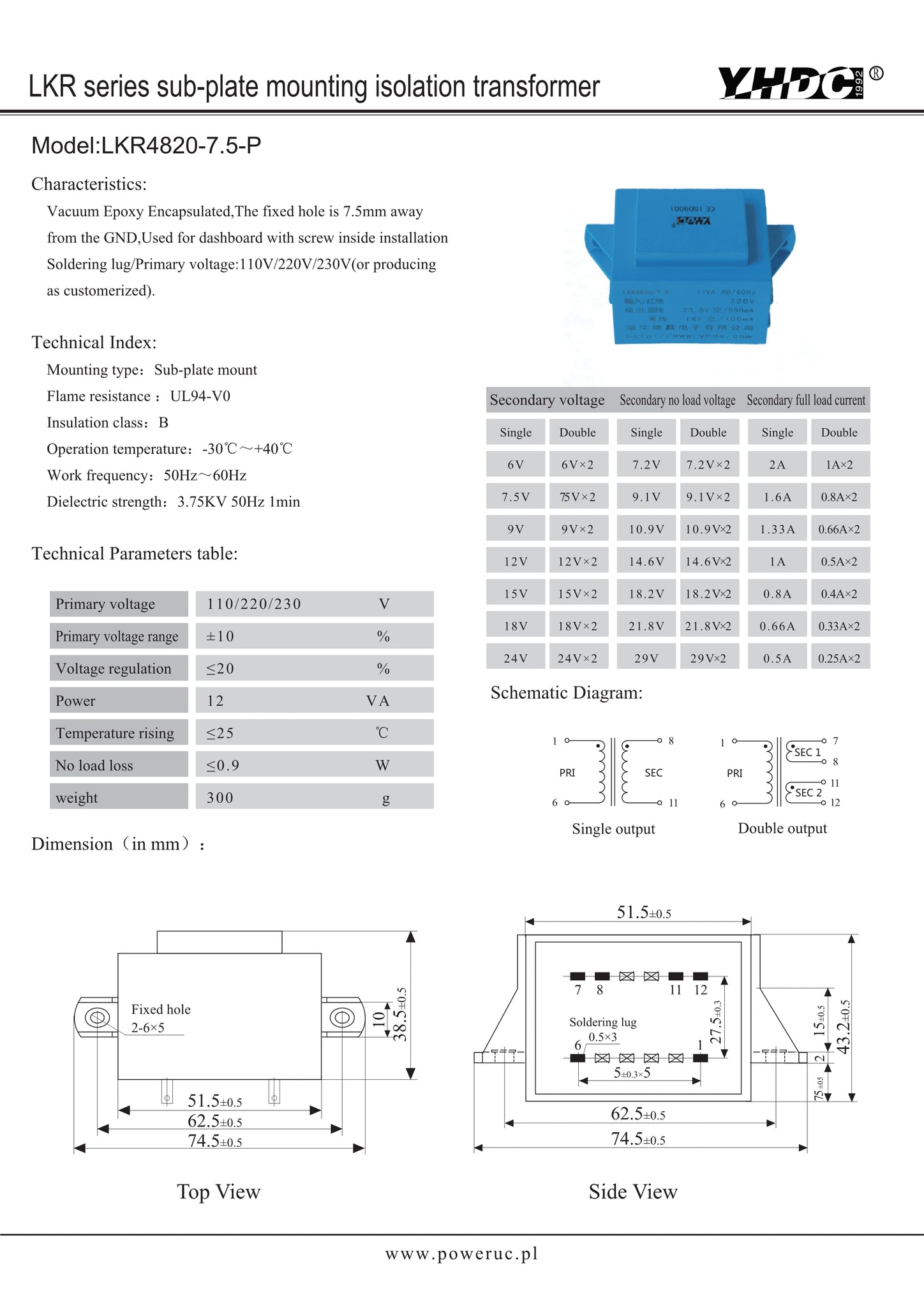

LKR series sub-plate mounting isolation transformer LKR4820-7.5-P 230V 12VA - PowerUC

LKR series sub-plate mounting isolation transformer LKR4820-7.5-P 110V/220V/230V 12VA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
Vacuum epoxy encapsulated, the fixed hole is 7.5mm away from he GND, used for dashboard with screw inside installation.  Soldering lug / primary voltage: 110V/220V/230V (or producing as customized).

Technical Index:
Mounting type: sub-plate mount
Flame resistance: UL94-V0
Insulation class: B
Operating temperature: -30°C ~ +40°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength: 3.75KV 50Hz 1min

Technical Parameters:


DOWNLOAD
