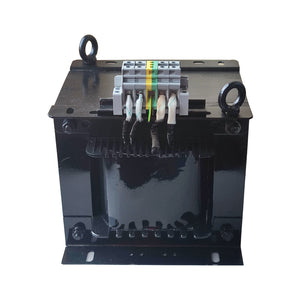

JBK5 machinery control transformer  JBK5-192-110-2500L

JBK5 machinery control transformer JBK5-192-110-2500L

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:

JBK5 series machinery control transformer is produced by high permeability material, between silicon steel sheets, bottom plate and silicon steel sheets are welded in a group by argon arc, structure is simple, anti-corrosion alloy material is used in the bottom plate to improve grounding reliability. Crimp terminal using group structure, increases the electrical clearance and creepage distance, and it improves the density of the connection, protection class IP20, can prevent the risk of occasional access to the circui. The transformer are used for 50-60Hz AC, primary voltage less than 500V, secondary rated voltage less than 400V, it can be used as general electrical control power source of mechanical equipment in various industries, working lighting and signal lamp power source.

Technical Indicators:

Mounting type:Sub-plate mount

Flame resistance :UL94-V0

Insulation class:B

Operation temperature:-30℃~+40℃

Work frequency:50Hz~60Hz

Dielectric strength:Pri/Sec 3.5KV 50Hz 1min 5mA

Technical Parameters:

DOWNLOAD
