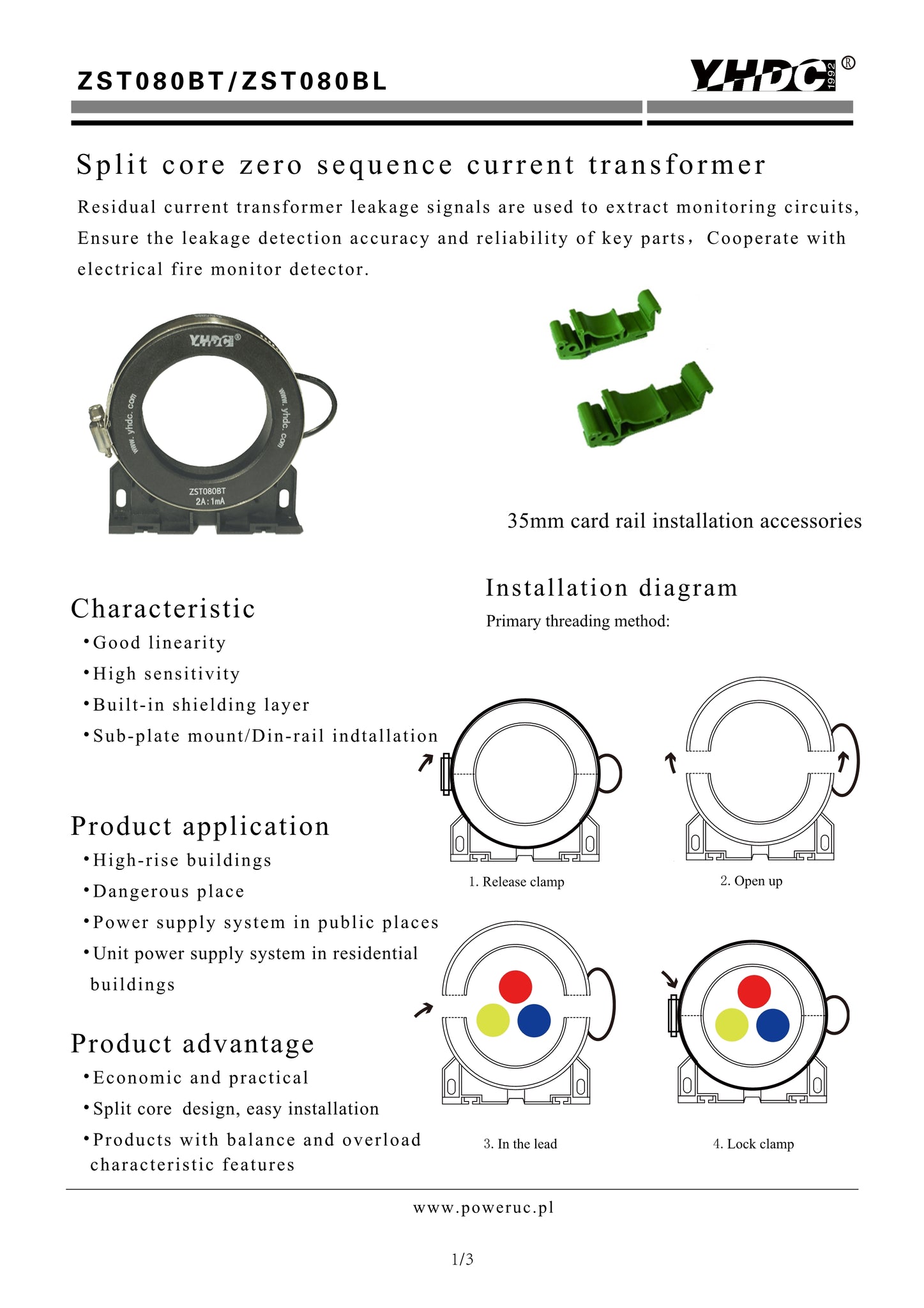

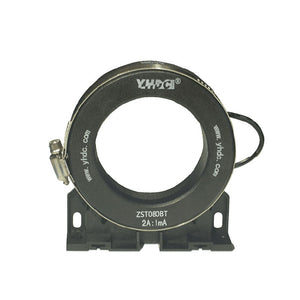

Zero sequence current/leakage current transformer ZST080B(L/T) rated input current 1A
Model:ZST080B(L/T)
Characteristics:
Used for residual current detection , with good linearity and high sensitivity. Widely used in dangerous goods places , high-rise buildings , public places and residential buildings and the unit power supply system of the building , there are lead wire or the compression terminal two output modes optional.

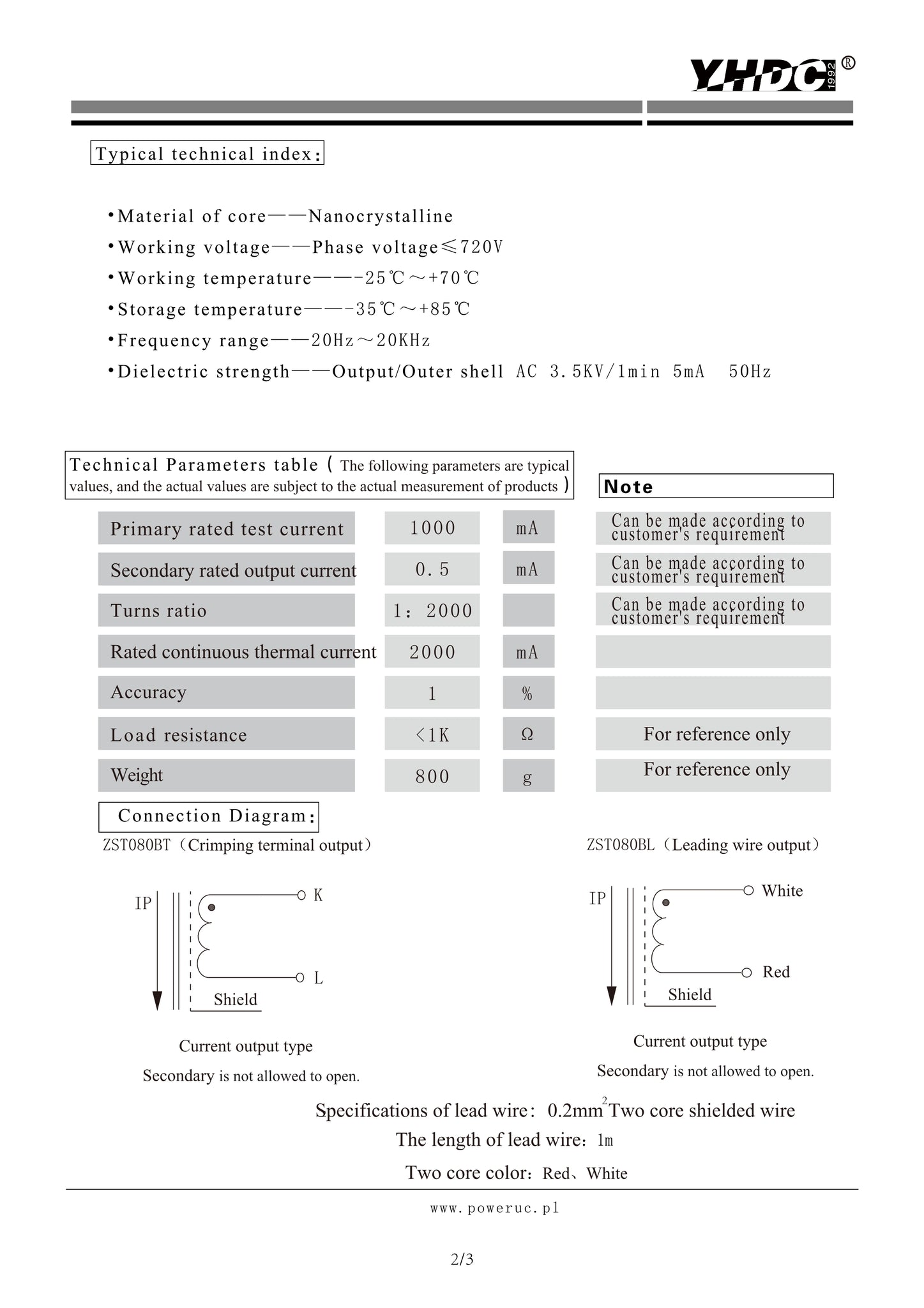

Technical Index:

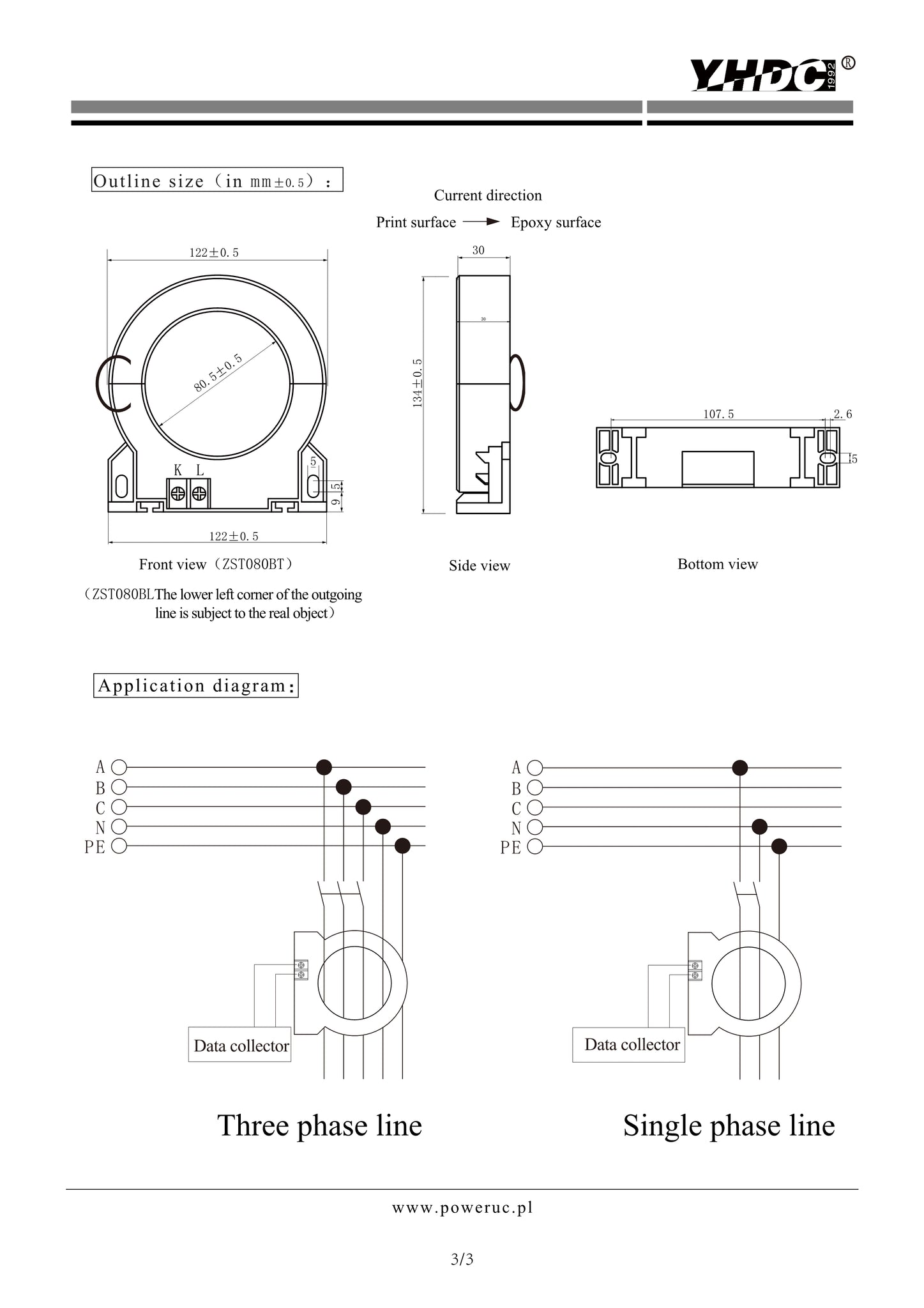

Installation method: Sub-plate
Core material: Nanocrystalline
Flame resistance: UL94-V0
Standard: GB1208-2006
Working temperature: -25°C ~ +70°C
Working temperature: -35°C ~ +85°C
Work frequency: 20Hz ~ 20KHz
Dielectric strength: 3.5KV 50Hz 1min
DOWNLOAD
