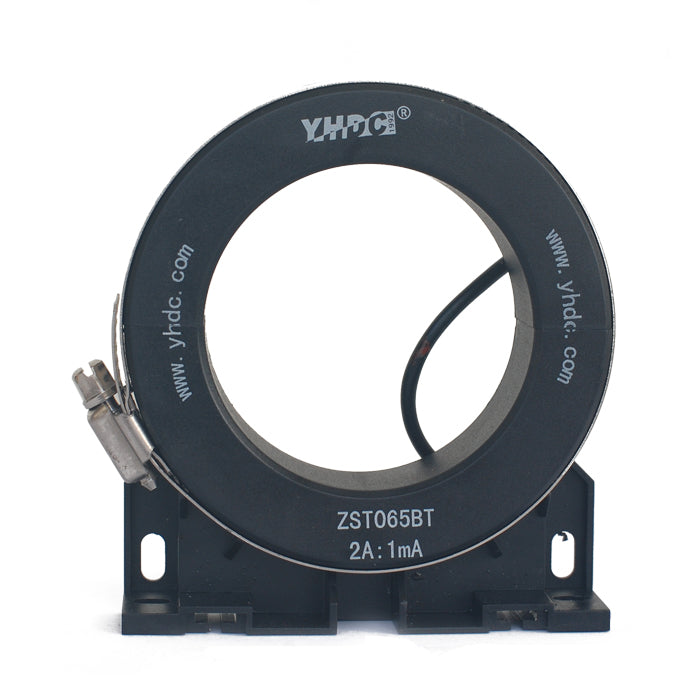

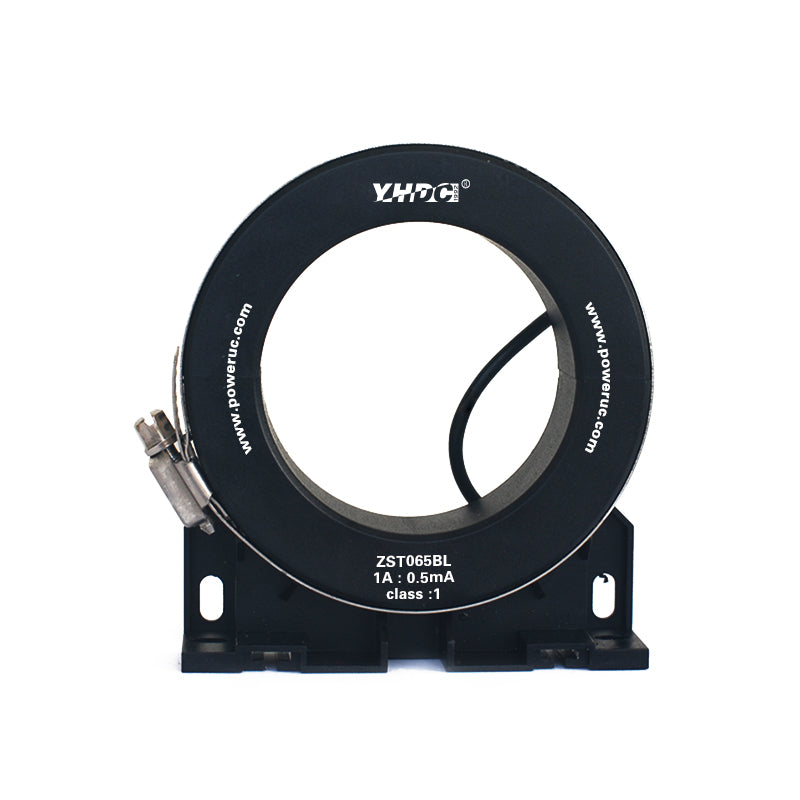

Zero sequence current/leakage current transformer ZST065B(L/T) rated input current 1A
Zero sequence current/leakage current transformer ZST065B(L/T) rated input current 1A

Zero sequence current/leakage current transformer ZST065B(L/T) rated input current 1A

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model:ZST065B(L/T)

Characteristics:

Used for residual current detection , with good linearity and high sensitivity. Widely used in dangerous goods places , high-rise buildings , public places and residential buildings and the unit power supply system of the building , there are lead wire or the compression terminal two output modes optional.

Technical Index:
Installation method: Sub-plate
Core material: Nanocrystalline
Flame resistance: UL94-V0
Standard: GB1208-2006
Working temperature: -25°C ~ +70°C
Working temperature: -35°C ~ +85°C
Work frequency: 20Hz ~ 20KHz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:
