Zero sequence current/leakage current transformer ZCT14032BT rated input 1000mA - PowerUC

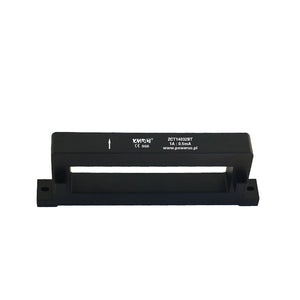

Zero sequence current/leakage current transformer ZCT14032BT rated input 1000mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model:ZCT14032BT

Characteristics:
Sub-plate mount, Crimp terminal output, With test terminal, Used for leakage current protection and  zero sequence current detection.

Technical Index:
Installation method: Sub-plate
Core material: Nanocrytlline
Flame resistance: UL94-V0
Standard: GB1208-2006
Working temperature: -25°C ~ +70°C
Working temperature: -35°C ~ +85°C
Work frequency: 20Hz ~ 20KHz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:
