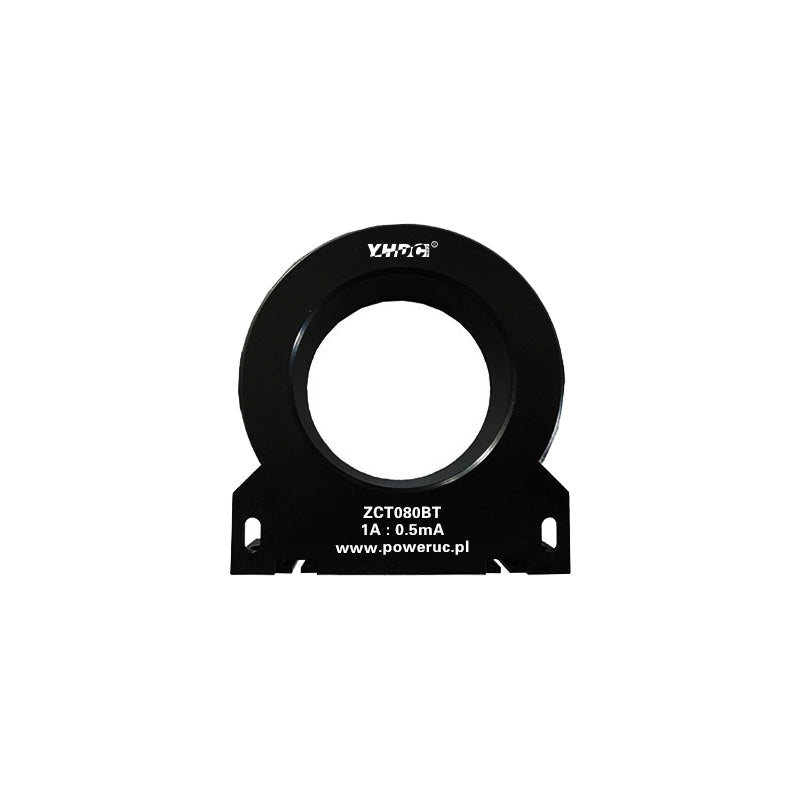

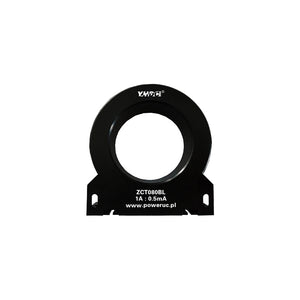

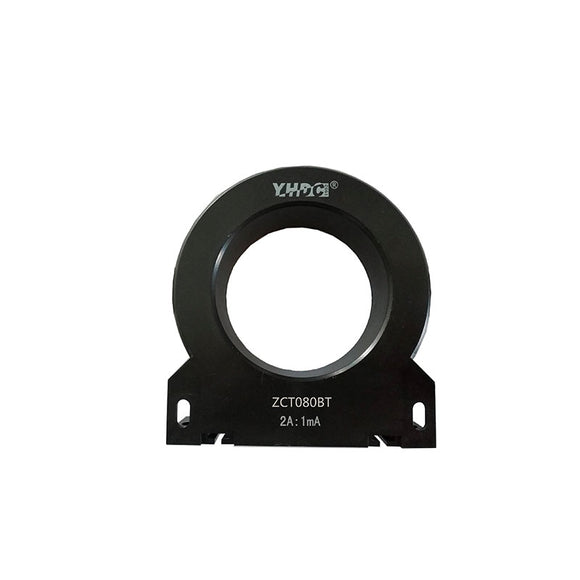

Zero sequence current/leakage current transformer ZCT080B(L/T) rated input 2A - PowerUC

Zero sequence current/leakage current transformer ZCT080B(L/T) rated input 1A

PowerUC

  • €15,41
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Model:ZCT080B(L/T)

Characteristics:
Sub-plate mount, Crimp terminal output, With test terminal, Used for leakage current protection and  zero sequence current detection.

Technical Index:
Installation method: Sub-plate
Core material: Nanocrytlline
Flame resistance: UL94-V0
Standard: GB1208-2006
Working temperature: -20°C ~ +70°C
Working temperature: -35°C ~ +85°C
Work frequency: 20Hz ~ 20KHz
Dielectric strength: 3.5KV 50Hz 1min

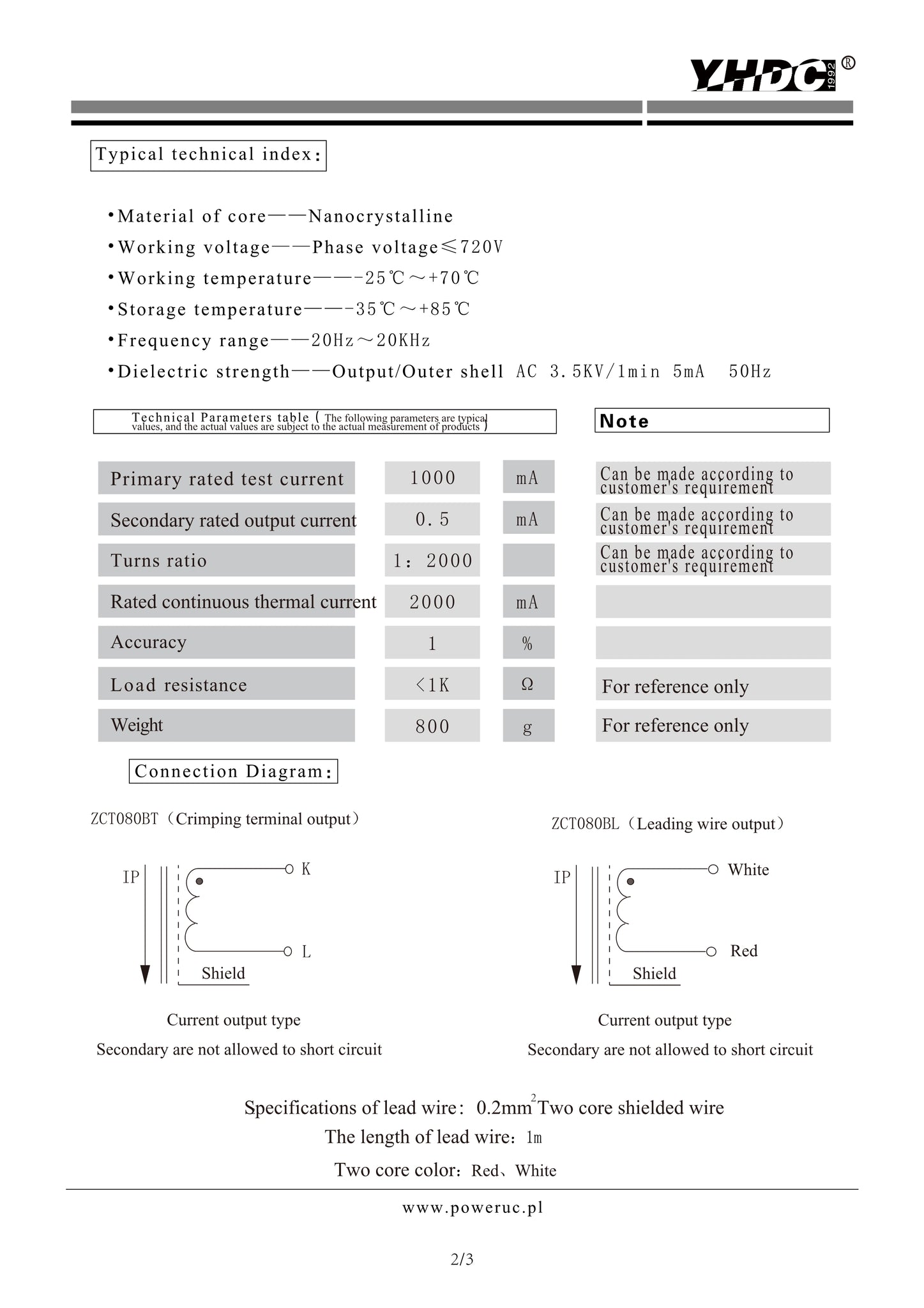

Electrical Parameters:

DOWNLOAD
