Zero sequence current/leakage current transformer ZCT045B(L/T) rated input 1A
Model:ZCT045B(L/T)
Characteristics:
Residual current transformer leakage signals are used to extract monitoring circuits,
Ensure the leakage detection accuracy and reliability of key parts,Cooperate with
electrical fire monitor detector.
Technical Index:
Installation method: Sub-plate
Core material:Nanocrystalline
Flame resistance: UL94-V0
Standard: GB1208-2006
Working temperature: -25°C ~ +70°C
Working temperature: -35°C ~ +85°C
Work frequency: 20Hz ~ 20KHz
Dielectric strength: 3.5KV 50Hz 1min

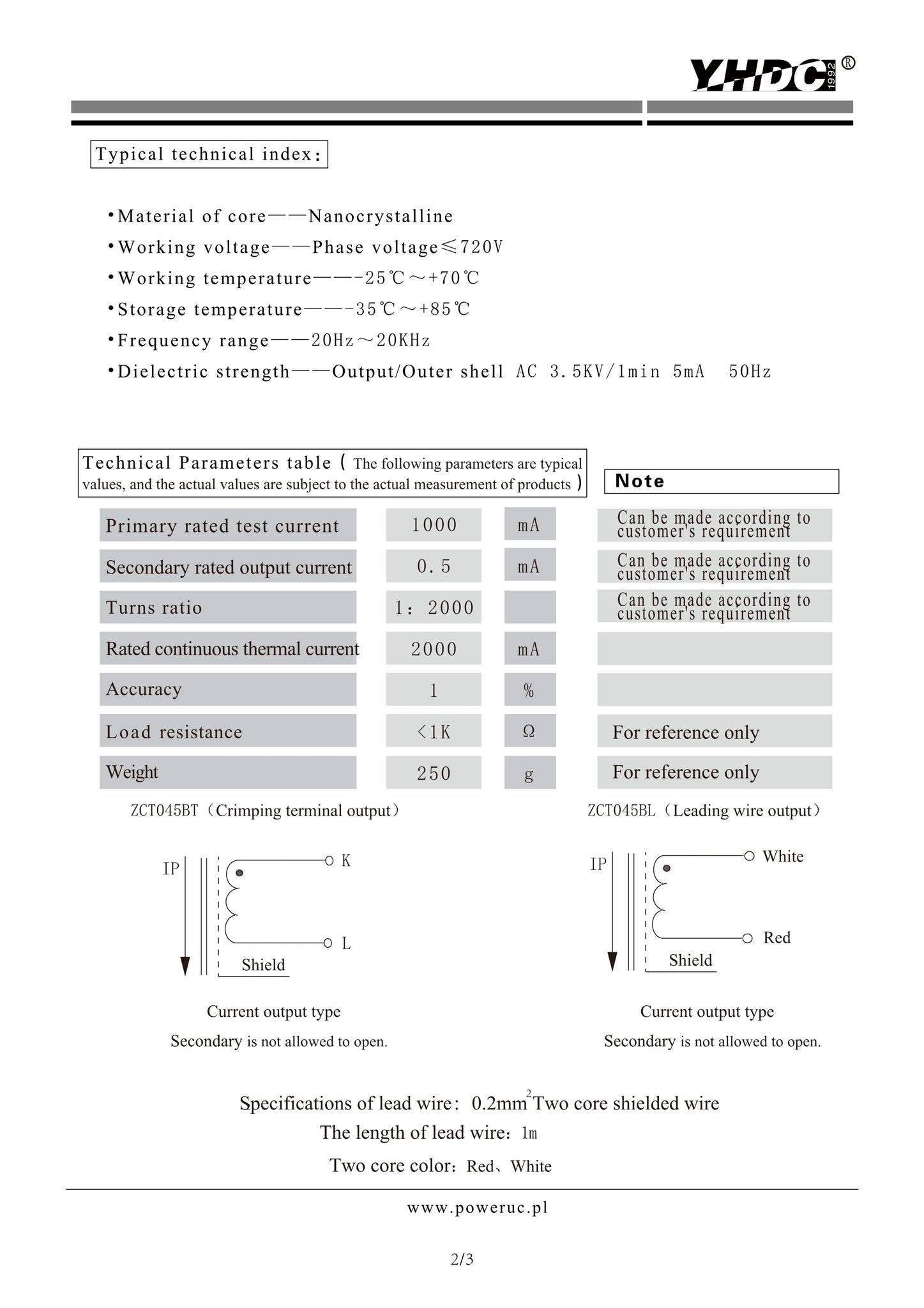

Electric parameter:
DOWNLOAD
