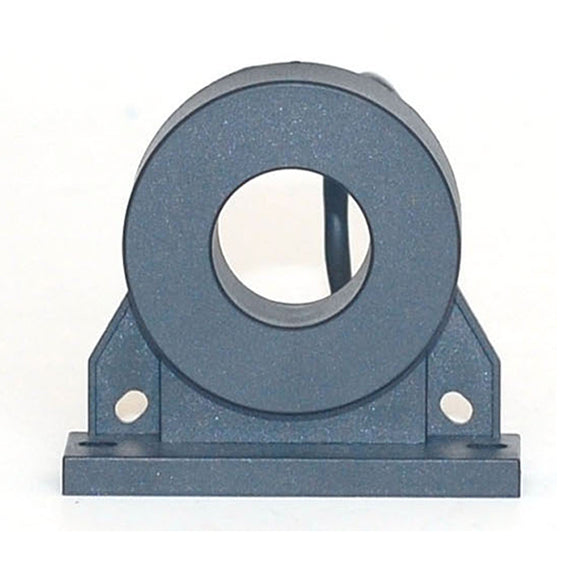

Zero sequence current/leakage current transformer ZCT023B(L/T) rated input 1A

PowerUC

Shipping calculated at checkout.

Model:ZCT023B(L/T)

Characteristics:

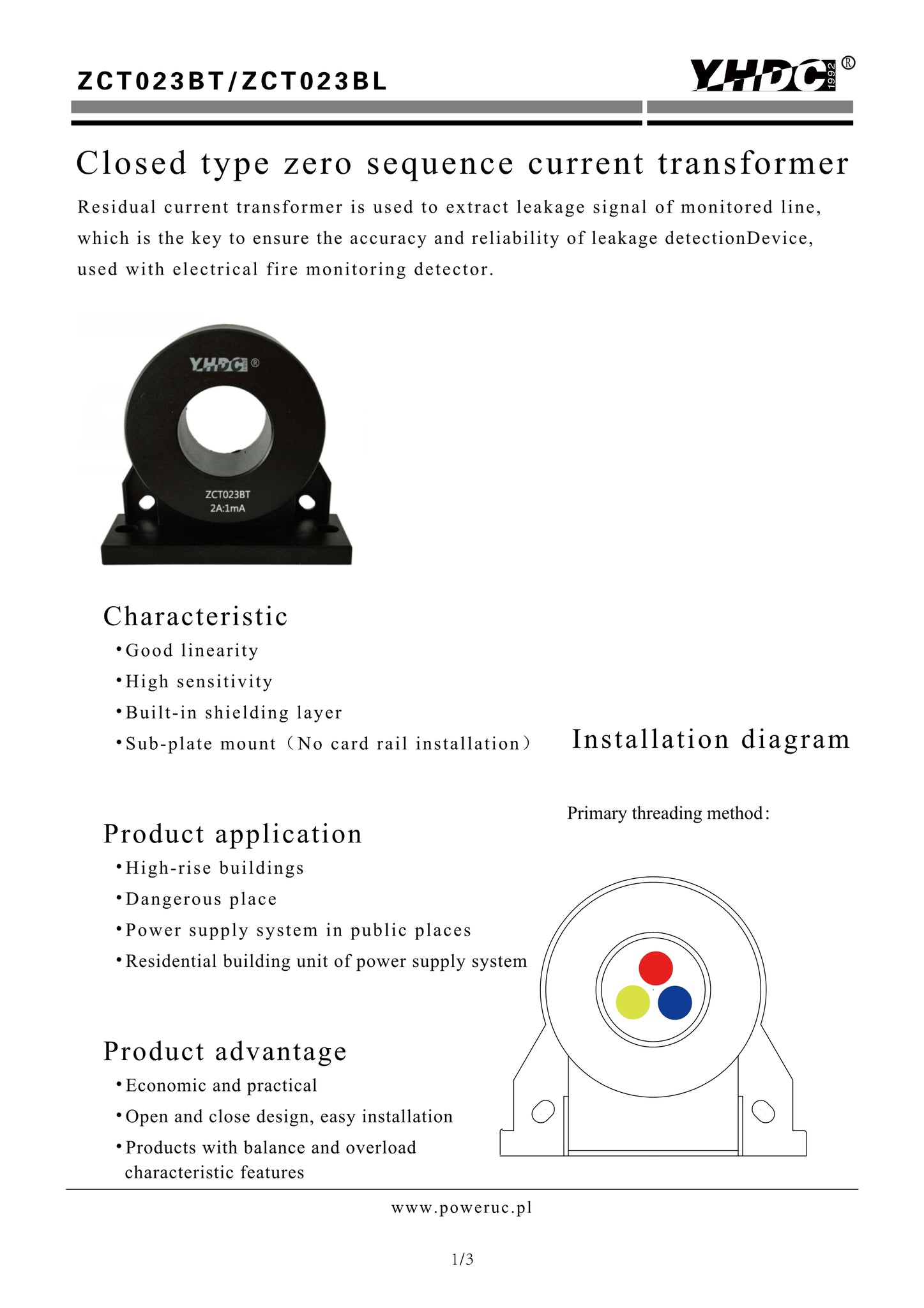

Residual current transformer is used to extract leakage signal of monitored line,

which is the key to ensure the accuracy and reliability of leakage detectionDevice,

used with electrical fire monitoring detector.

Technical indexes:

Core material: Nanocrystalline

Fair resistance： with UL94-V0

Standard: GB1208-2006

Work temperature：-25～+70℃

Storage temperature：-35～+85℃

Work frequency: 20Hz ~ 20KHz

Delectric strength：3.5KV 50Hz 1min

Electric parameter：

50A-200A current transformer BCT5021 - 50A/75A/100A/150A/200A - 5A/1A/0.1A

50A-300A current transformer BCT6130 - 50A 100A 150A 200A 250A 300A - 5A/1A/0.1A

150A-600A current transformer BCT8041 - 150A 200A 250A 300A 400A 500A 600A - 5A/1A/0.1A

200A-1200A current transformer BCT10260 - 200A 400A 500A 600A 750A 800A 1000A 1200A - 5A/1A/0.1A

600A-2500A current transformer BCT145100 - 600A 750A 800A 1000A 1200A 1500A 1600A 2000A 2500A - 5A/1A/0.1A
