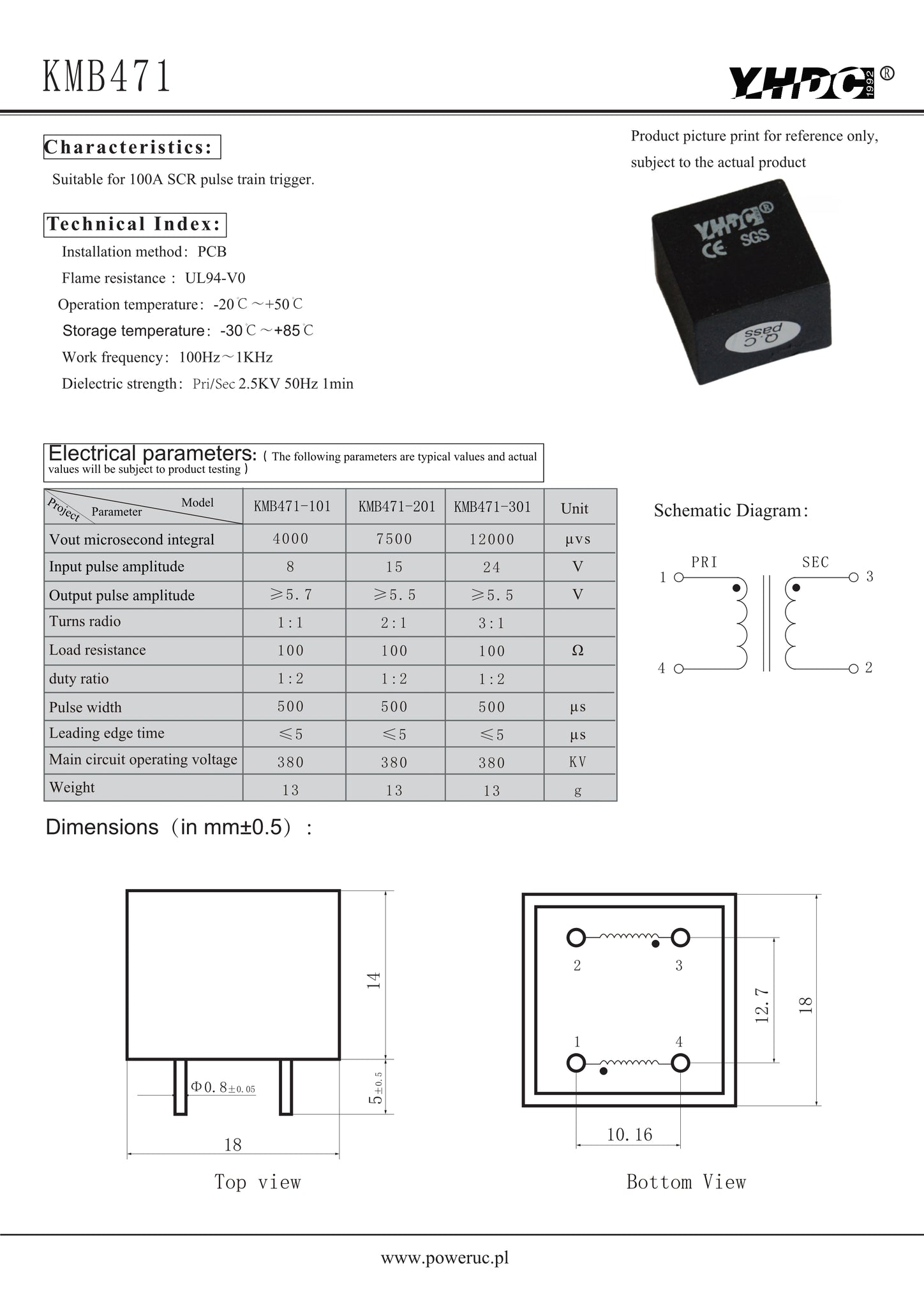

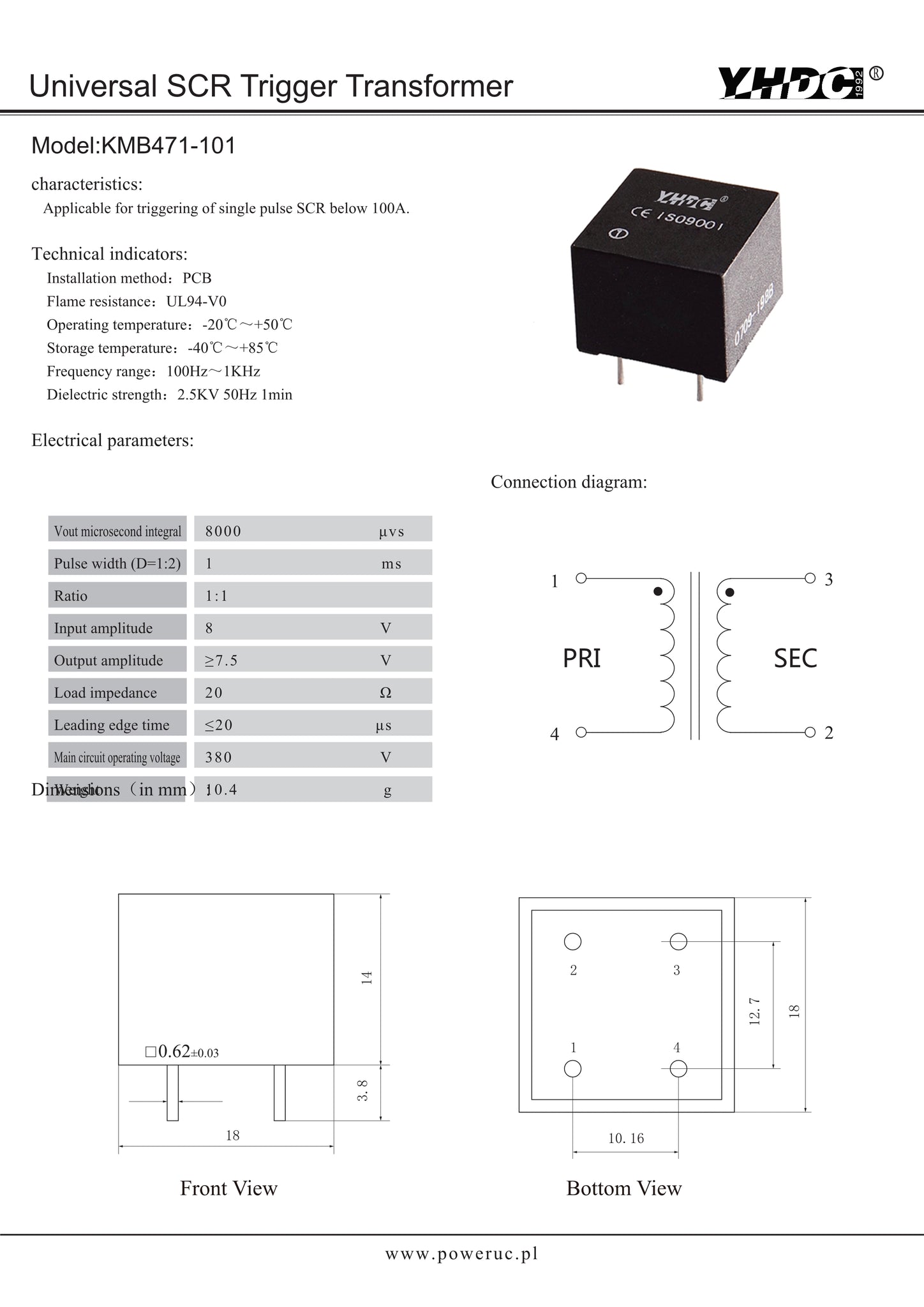

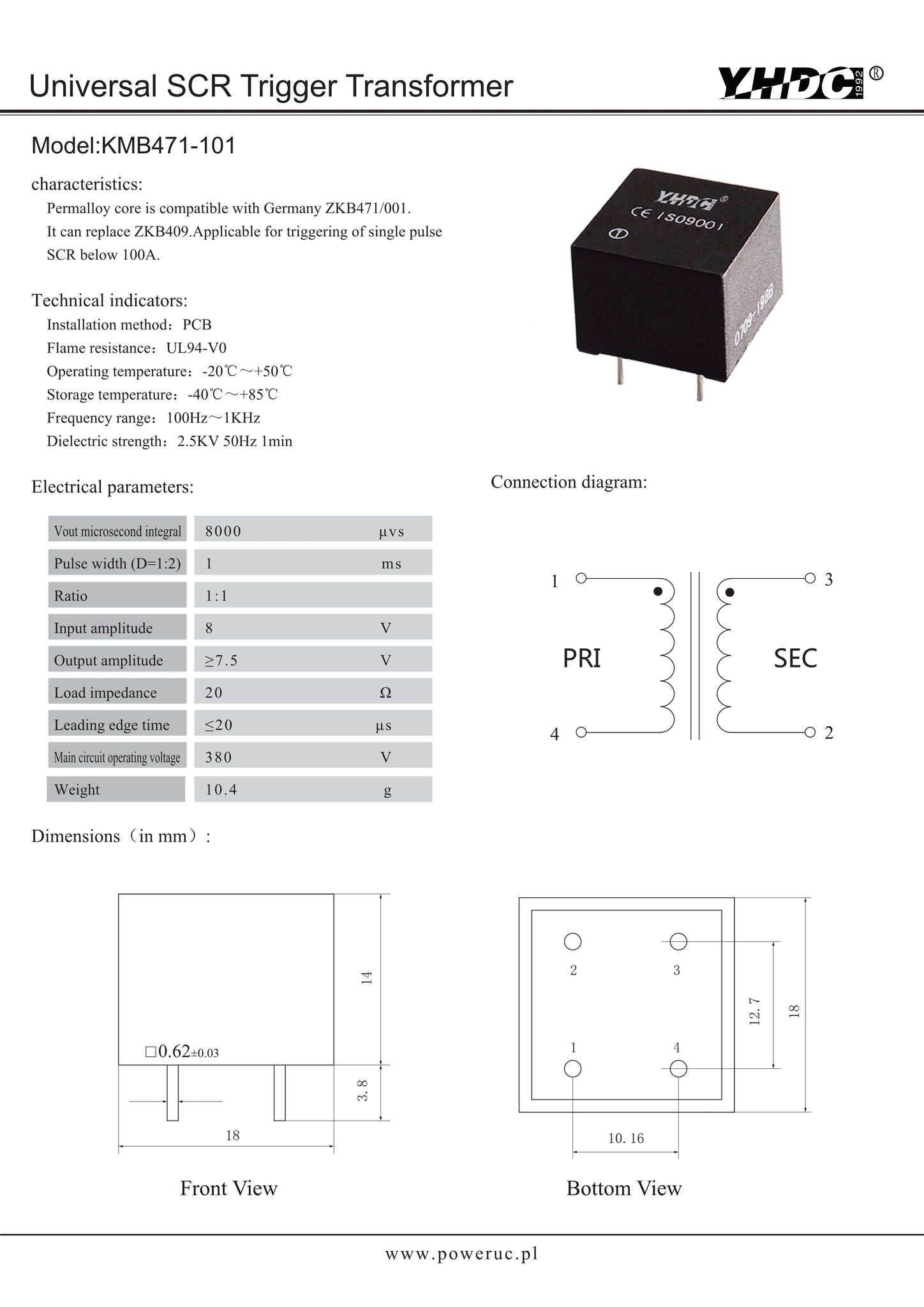

Universal SCR Trigger Transformer KMB471 Vout microsecond integral 4000μvs 7500μvs 12000μvs - PowerUC
Universal SCR Trigger Transformer KMB471 Vout microsecond integral 4000μvs 7500μvs 12000μvs - PowerUC

Universal SCR Trigger Transformer KMB471 Vout microsecond integral 4000μvs 7500μvs 12000μvs

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:

Suitable for 100A SCR pulse train trigger.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -30°C ~ +85°C
Frequency range: 100Hz ~ 1KHz
Dielectric strength: 2.5KV 50Hz 1min

Electrical Parameters:

DOWNLOAD
