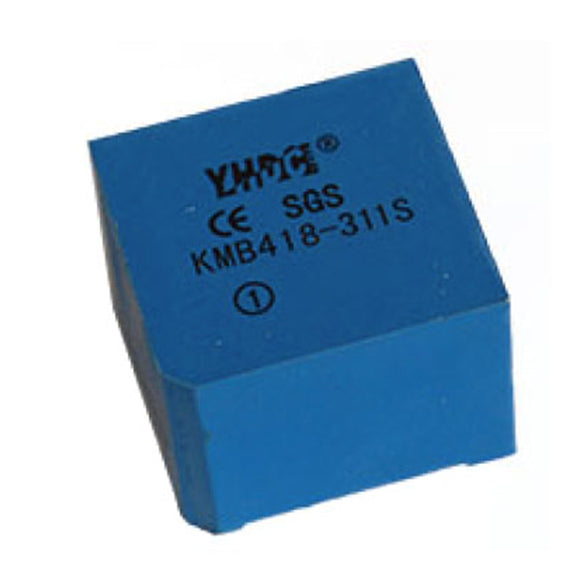

Universal SCR Trigger Transformer KMB418S Vout microsecond integral 1200/2250/3600μvs - PowerUC

Universal SCR Trigger Transformer KMB418S Vout microsecond integral 1200/2250/3120/3600μvs

PowerUC

Shipping calculated at checkout.
Only 30 left!

Characteristics:
Applicable for trigger of pulse train SCR below 2000A.

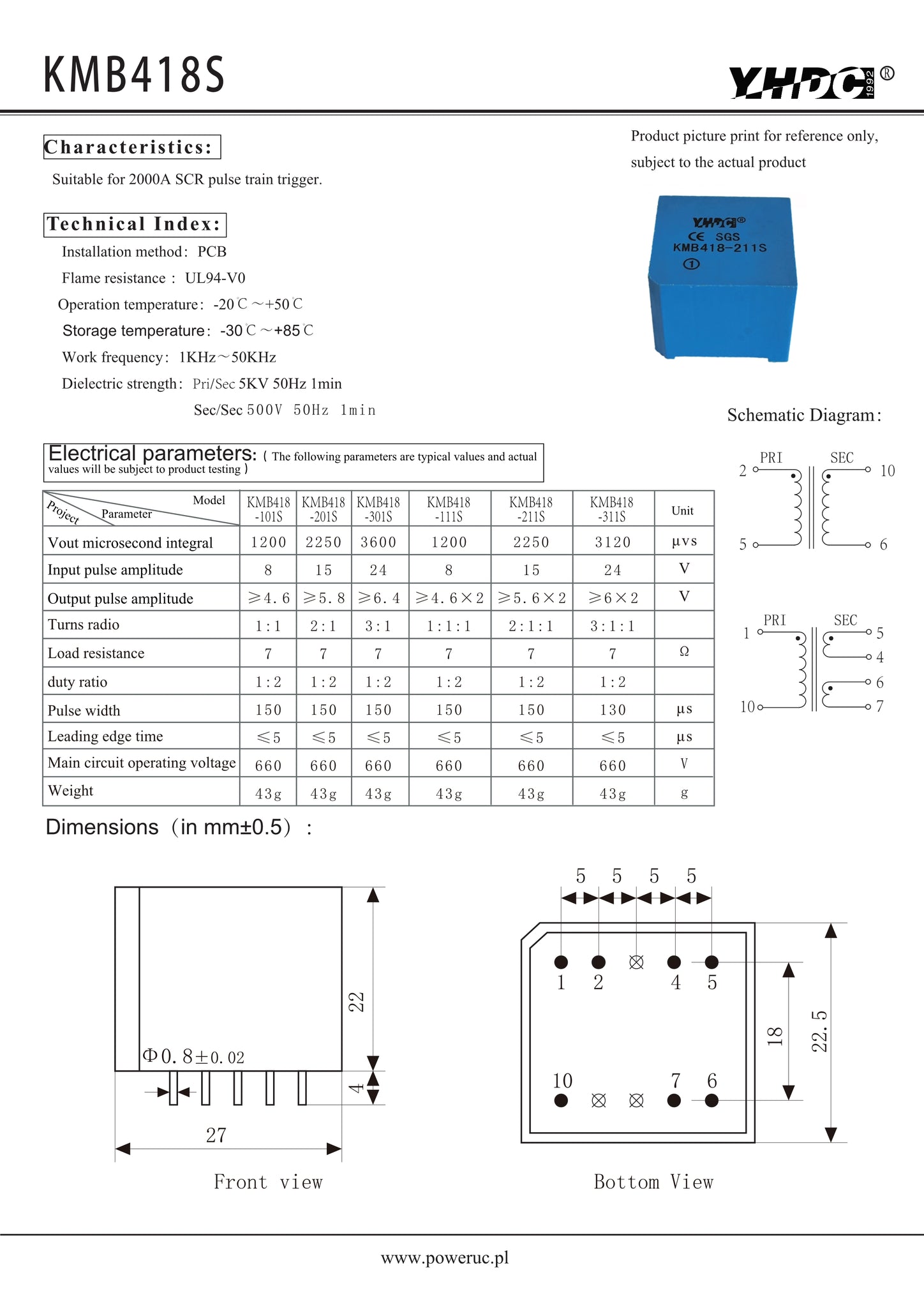

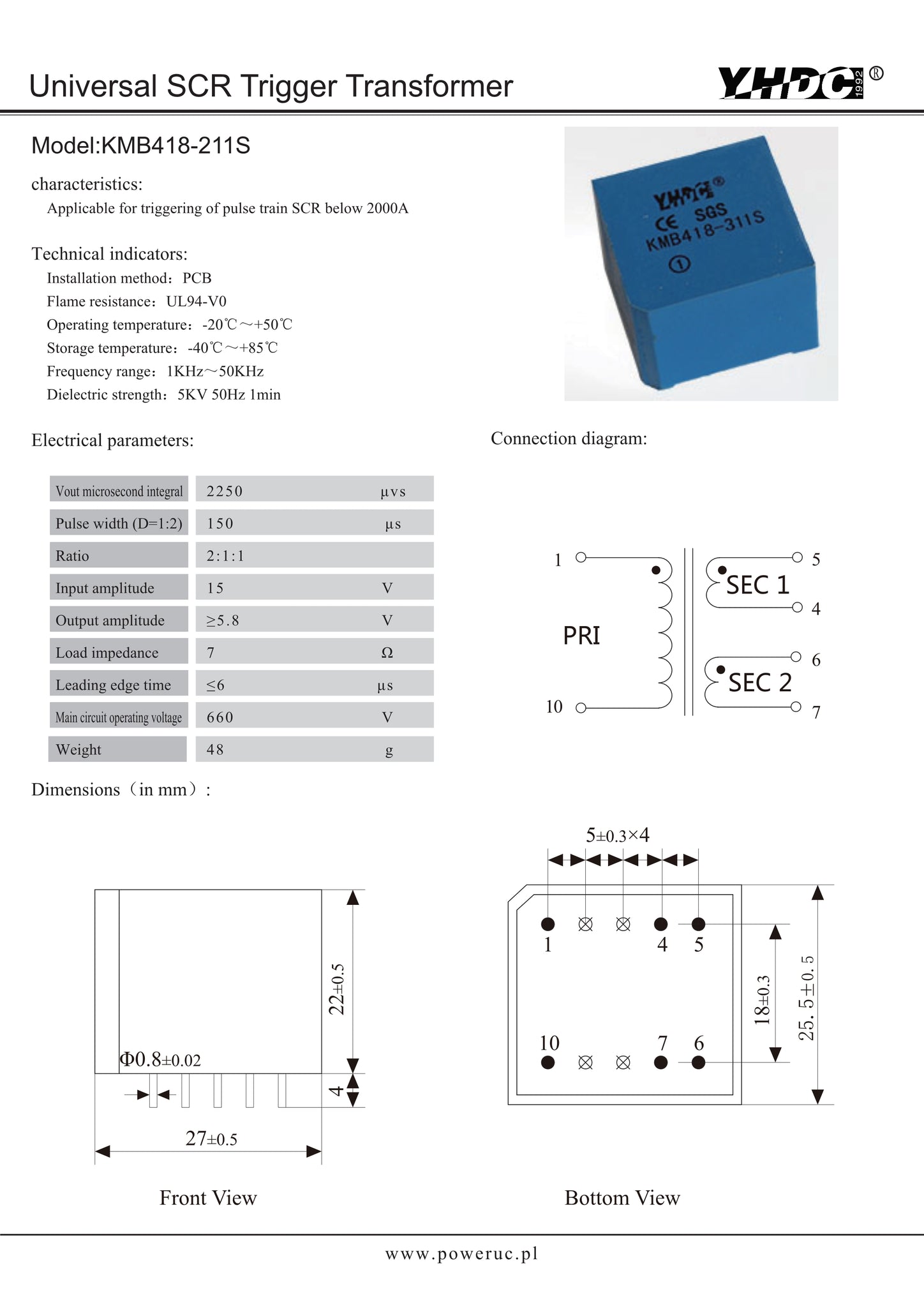

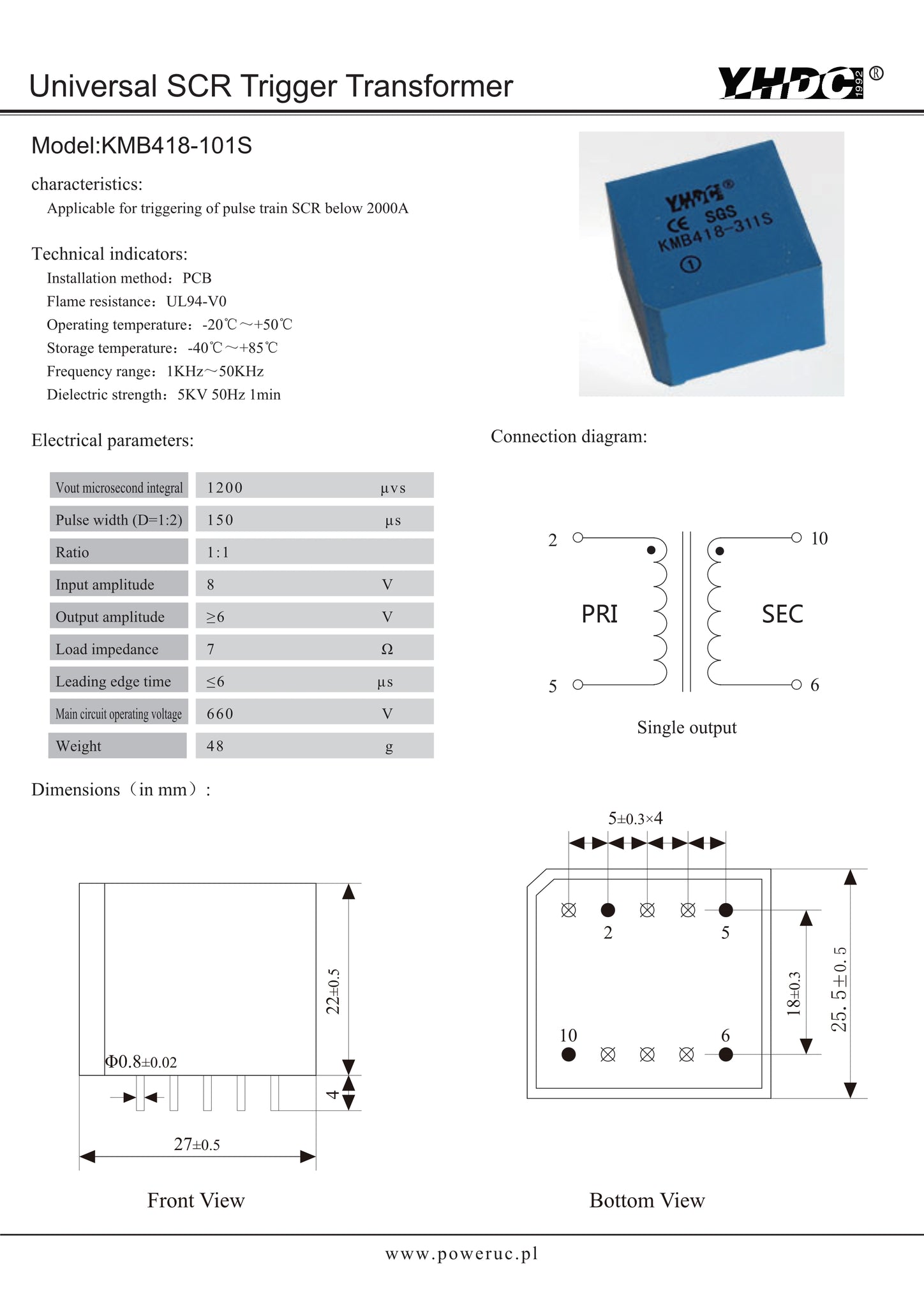

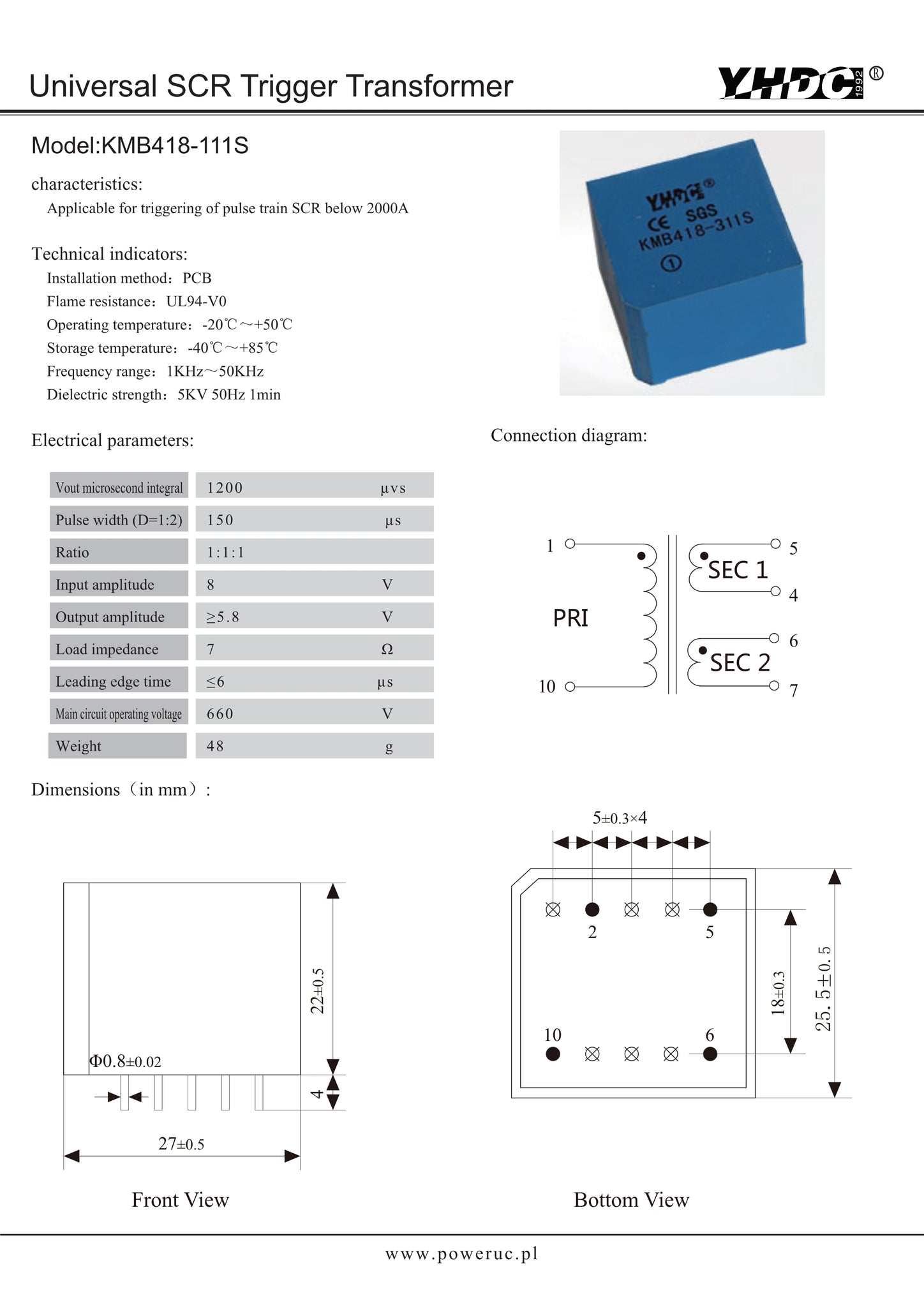

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -30°C ~ +85°C
Frequency range: 1KHz ~ 50KHz
Dielectric strength: 5KV 50Hz 1min

Electrical Parameters:

DOWNLOAD
