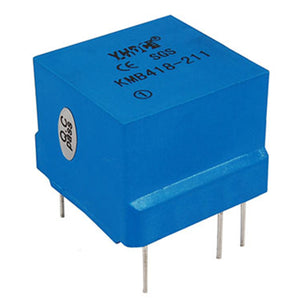

Universal SCR Trigger Transformer KMB418 Vout microsecond integral 1200/2250/3120/3600μvs

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
Applicable for trigger of pulse train SCR below 2000A.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -30°C ~ +85°C
Frequency range: 1KHz ~ 50KHz
Dielectric strength: 5KV 50Hz 1min

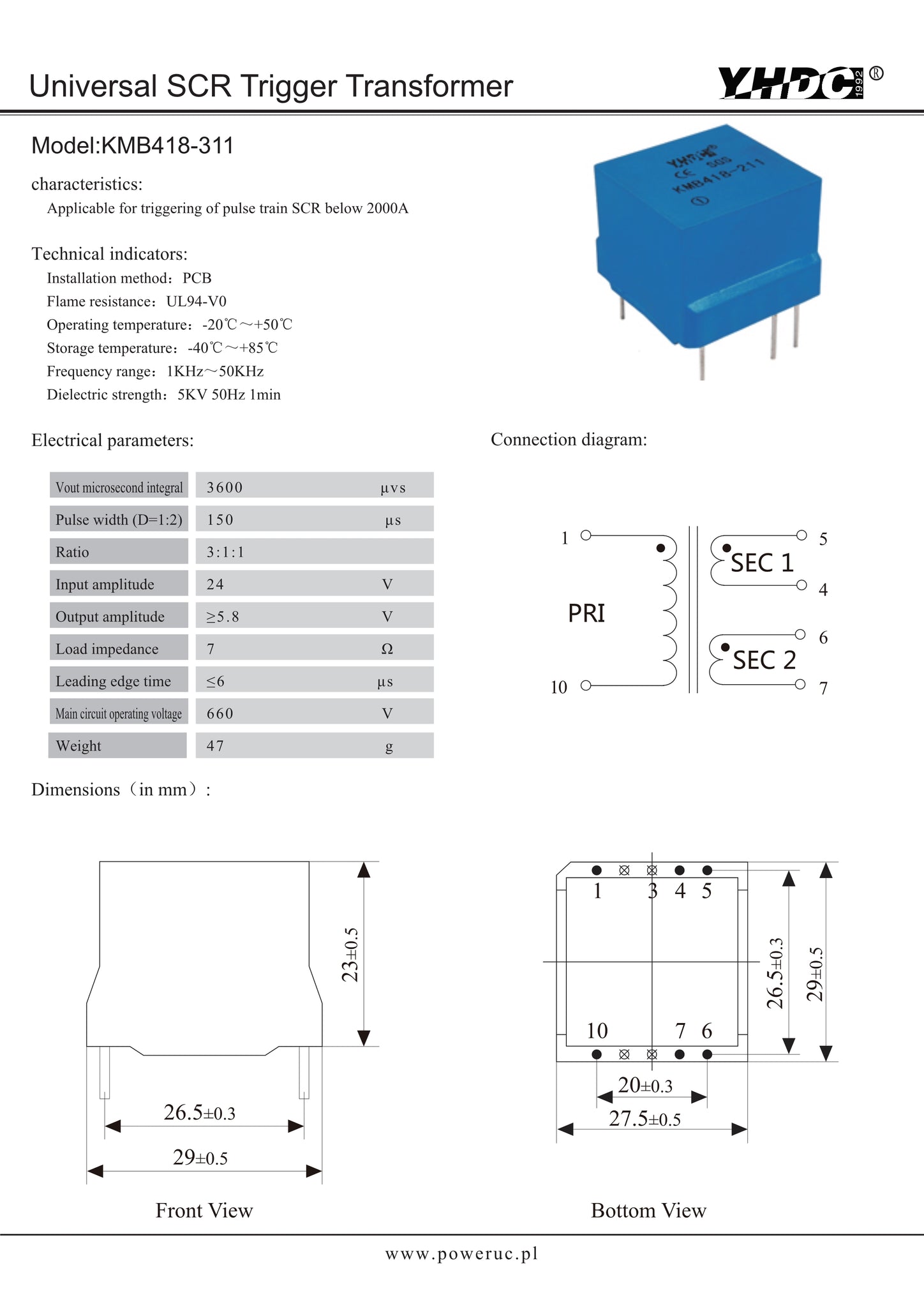

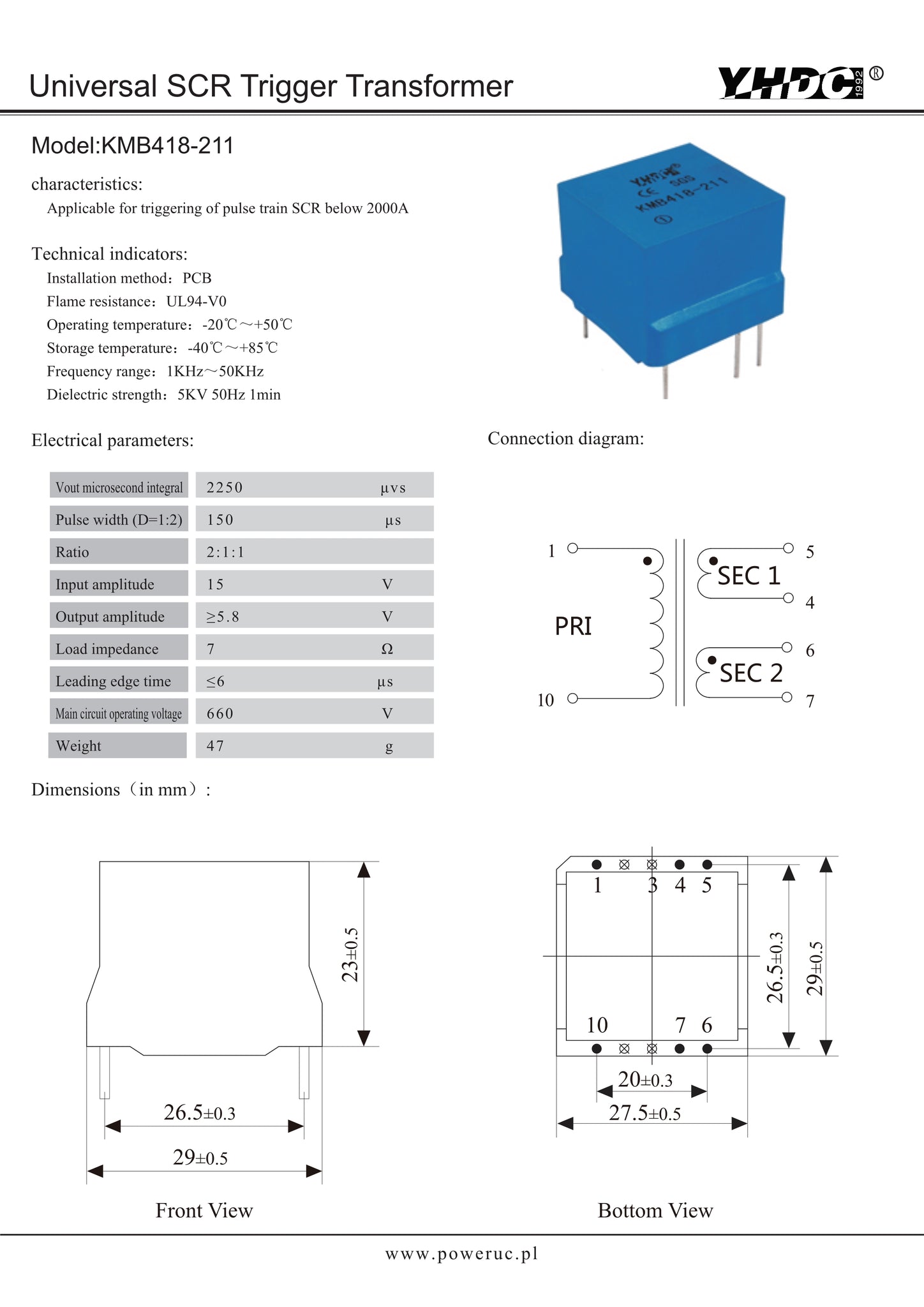

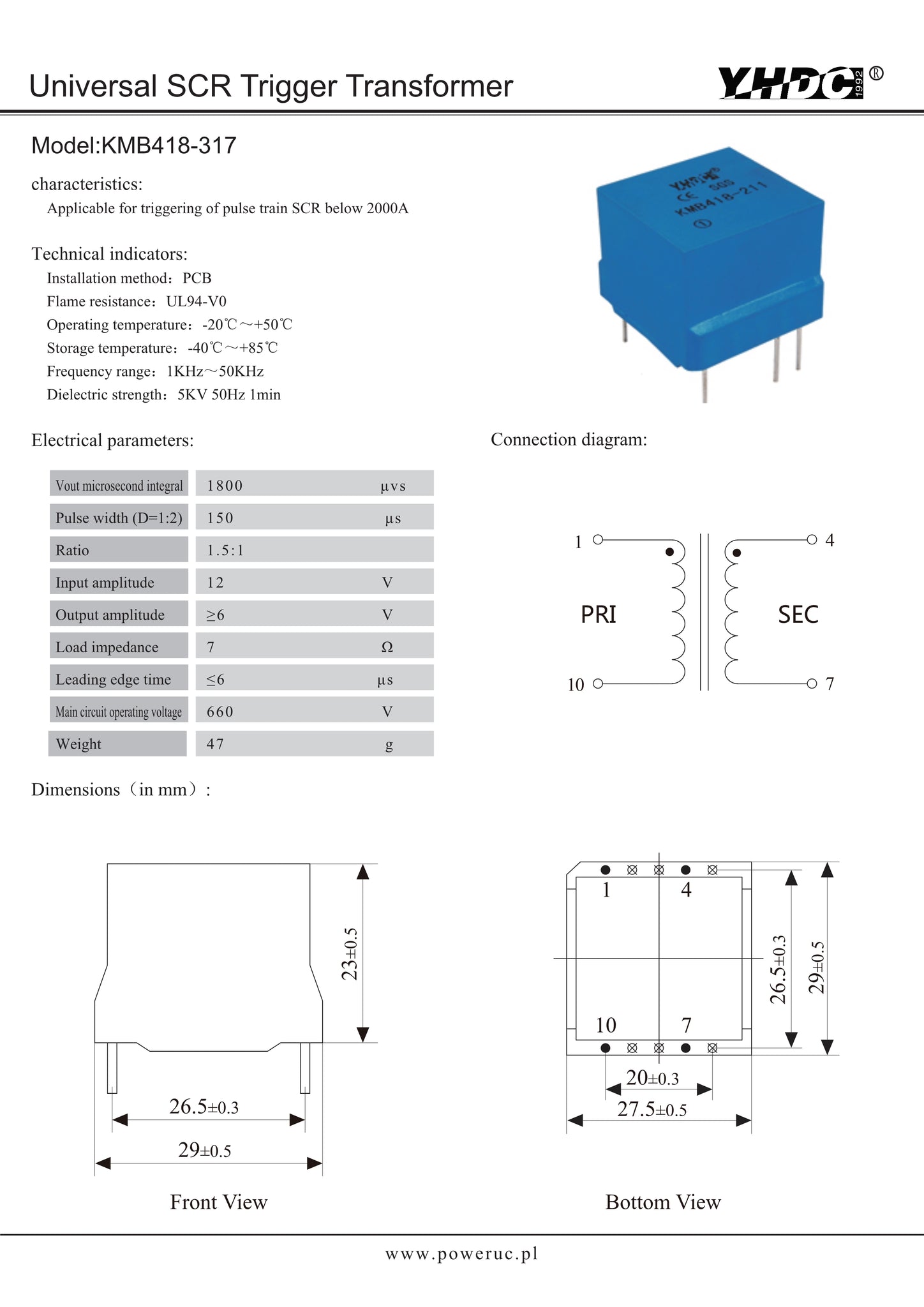

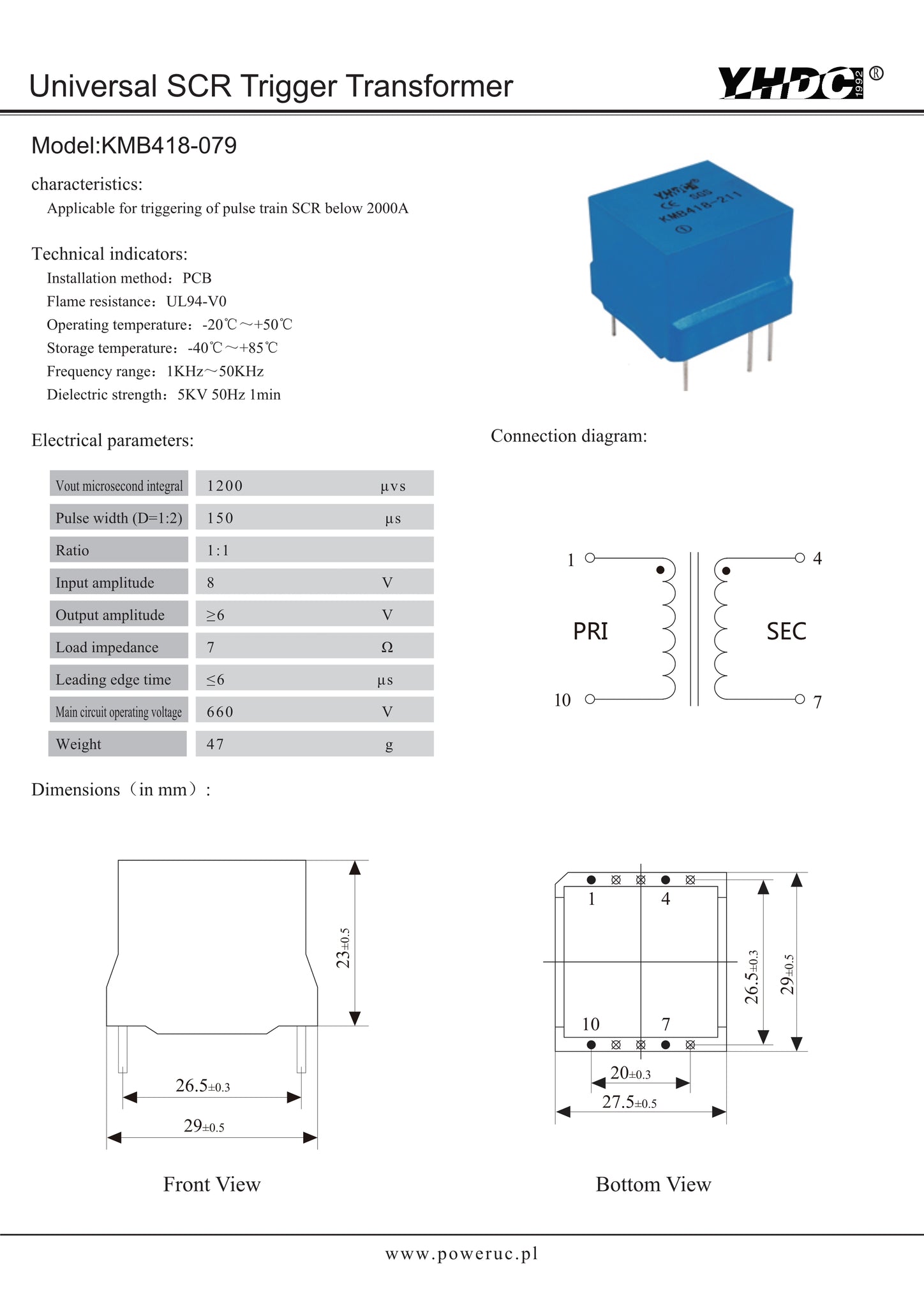

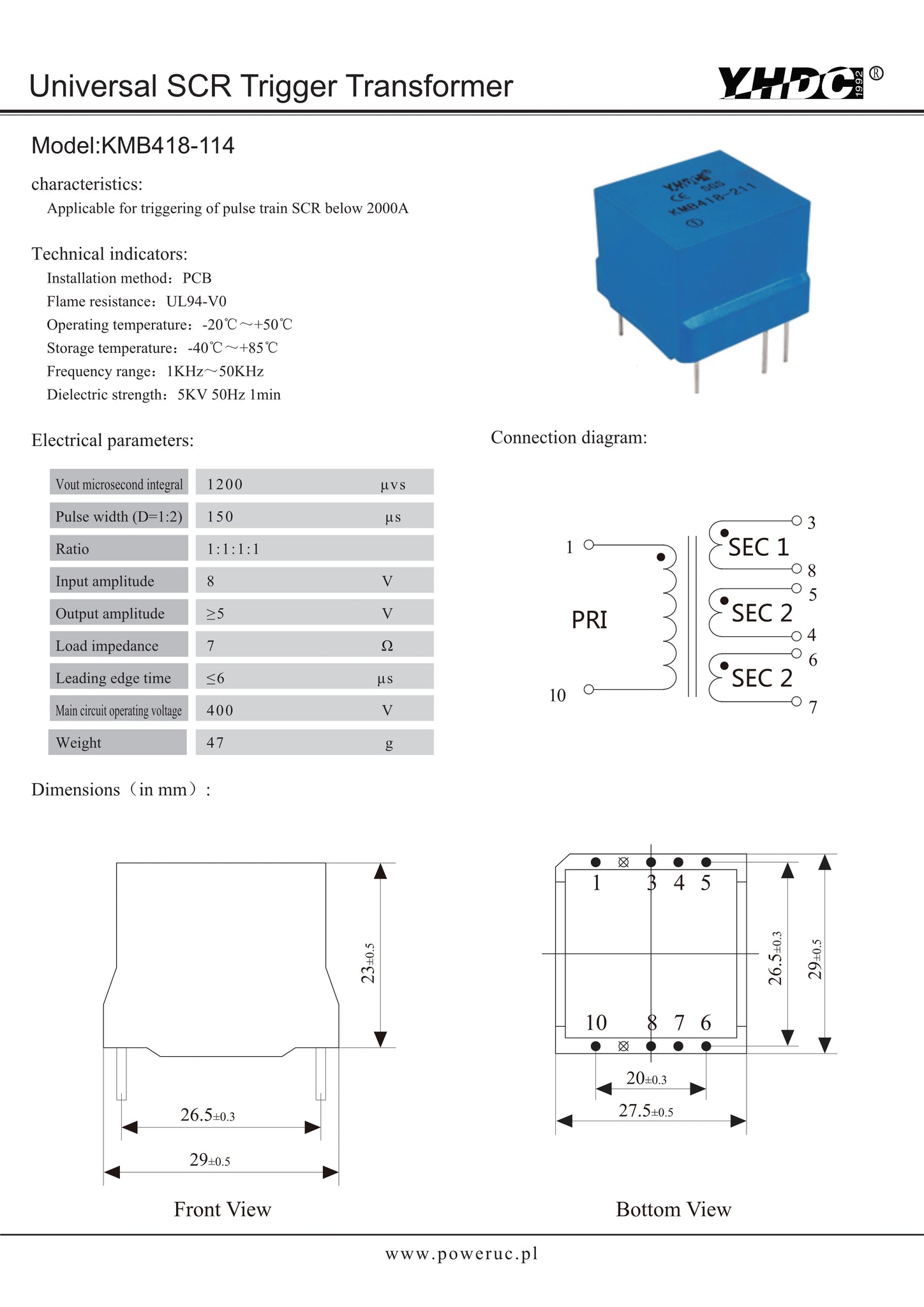

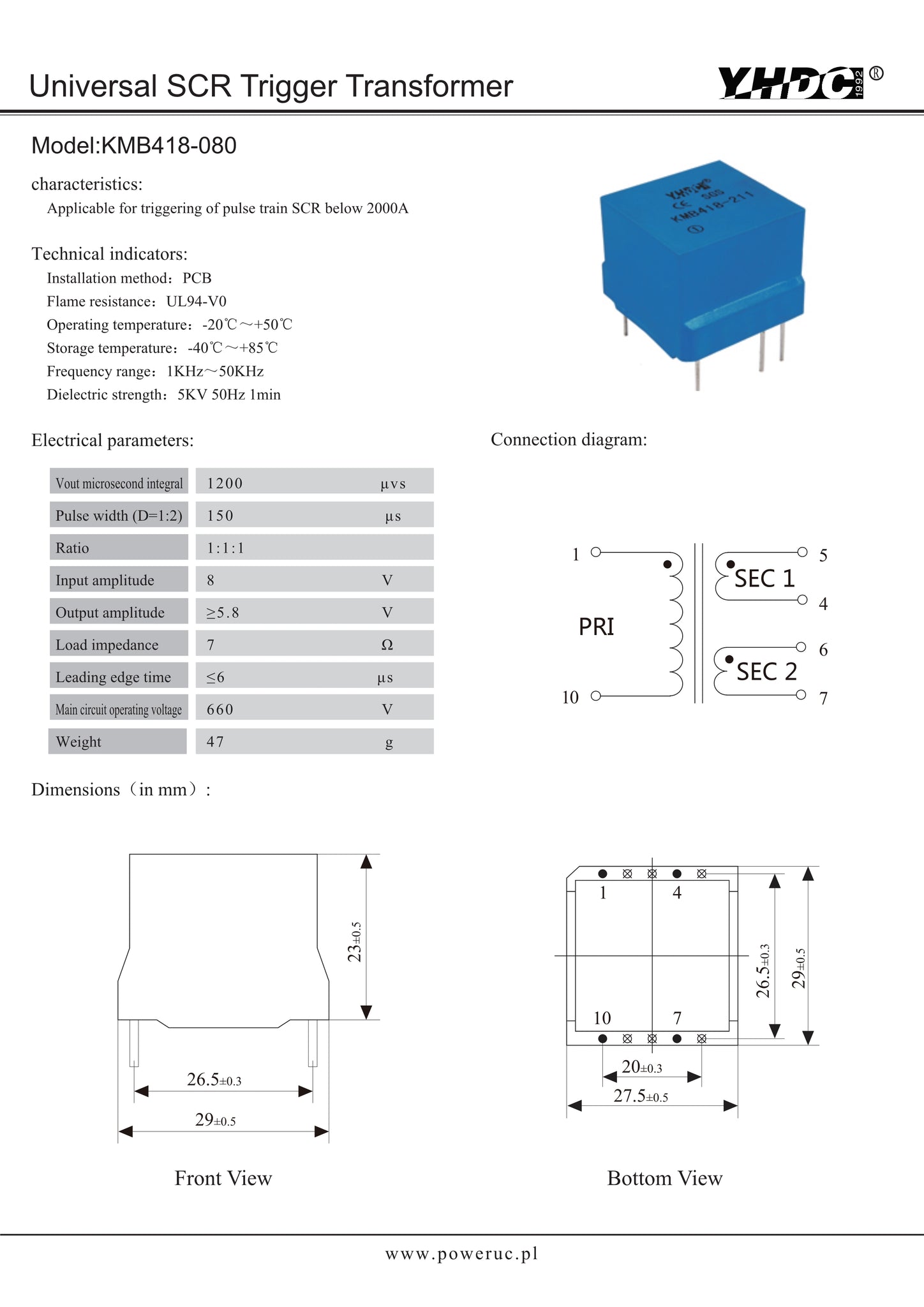

Electrical Parameters:

DOWNLOAD
