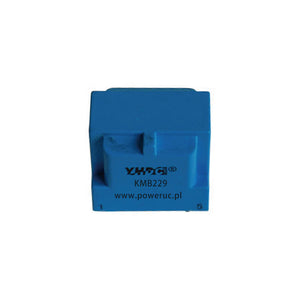

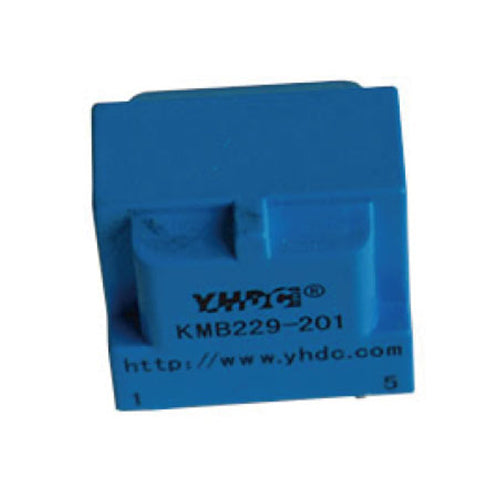

Universal SCR Trigger Transformer KMB229 Vout microsecond integral 800/1600/2400μvs - PowerUC

Universal SCR Trigger Transformer KMB229 Vout microsecond integral 960/1800/2880μvs Input pulse amplitude 8V/15V/24V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
It uses EI high quality magnetic core, overcoming shortcoming of toroidal core.  The first pulse current amplitude is greater than 1A.  Applicable for SCR below 500A.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -30°C ~ +85°C
Frequency range: 1KHz ~ 10KHz
Dielectric strength: 5KV 50Hz 1min

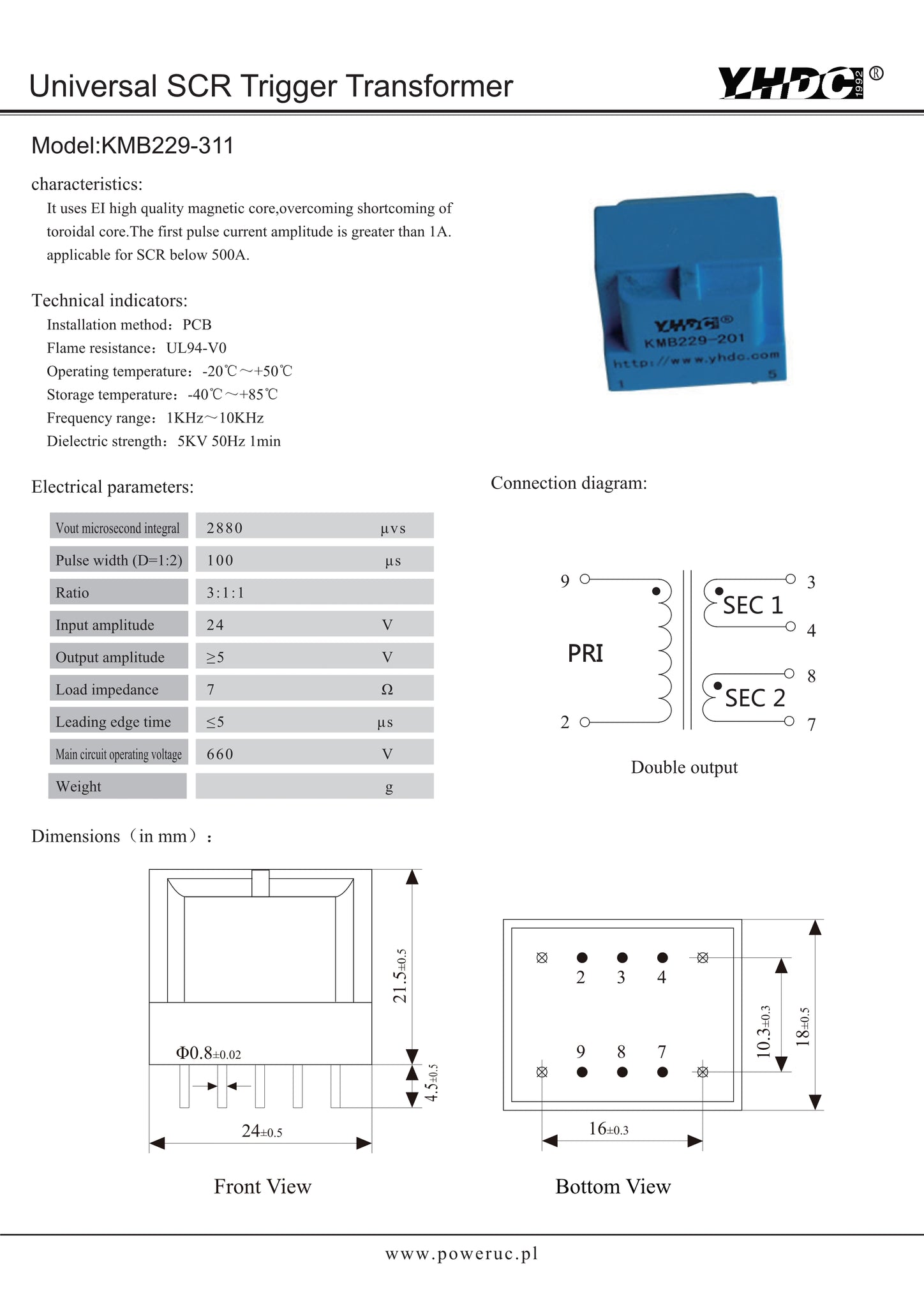

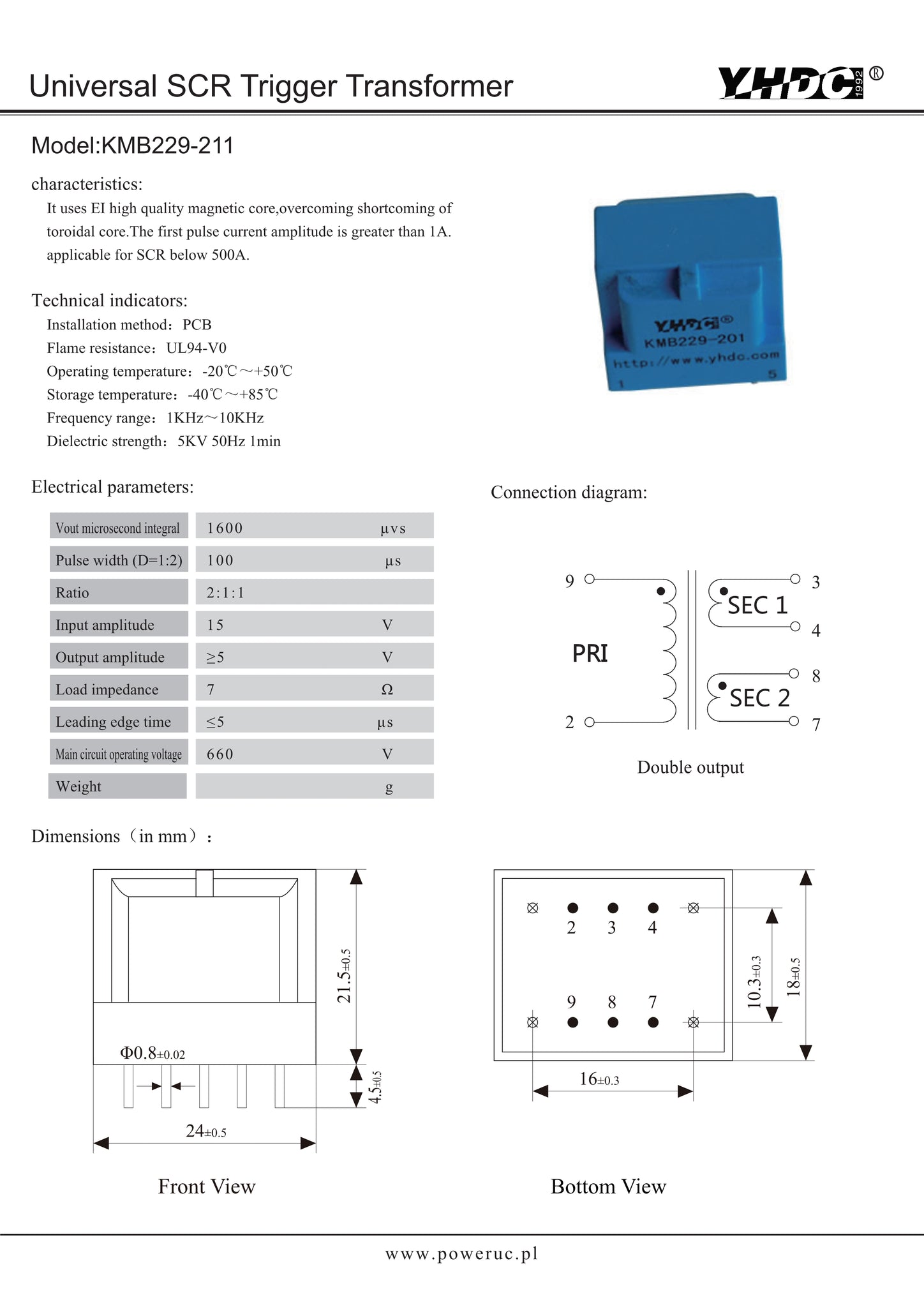

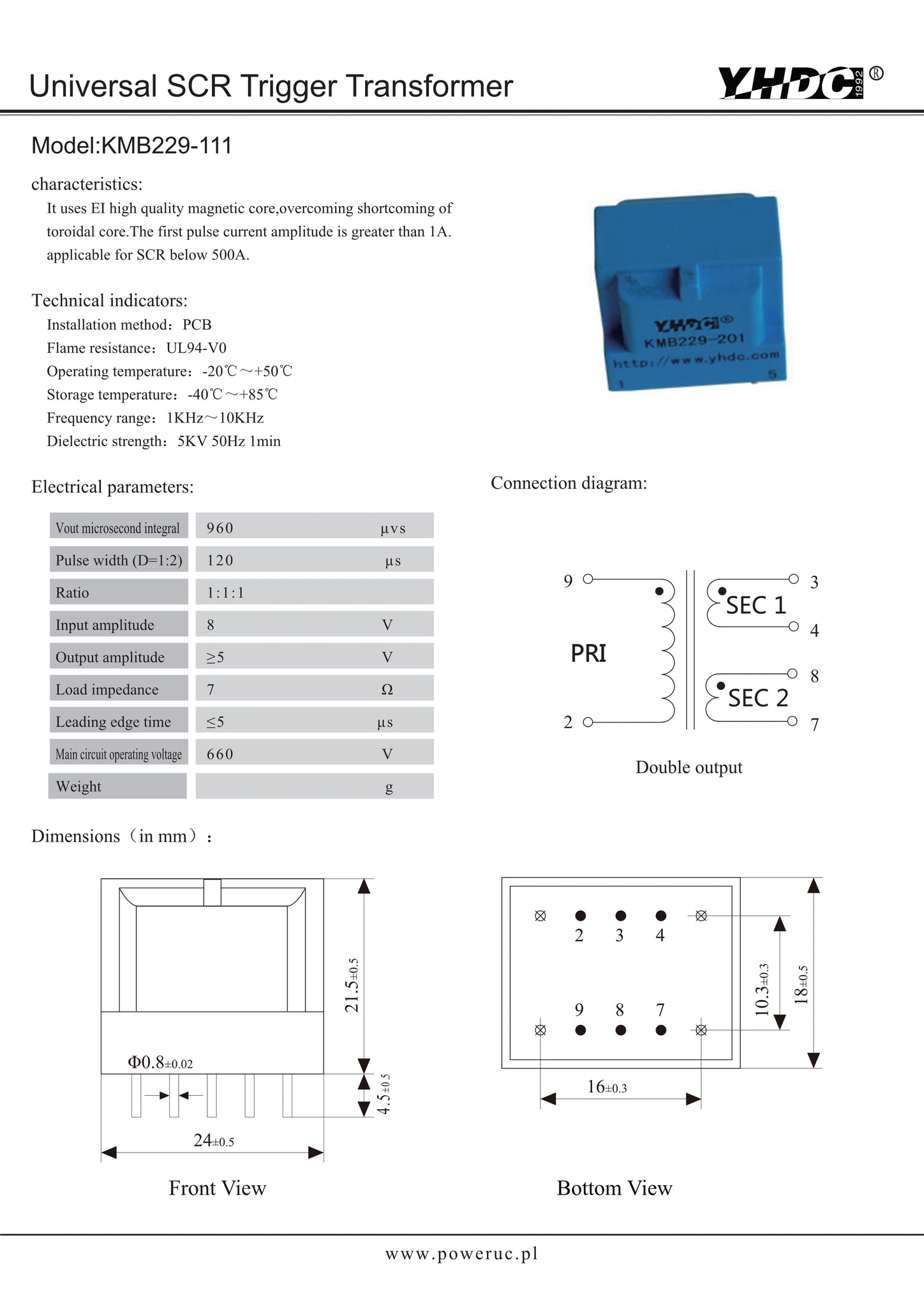

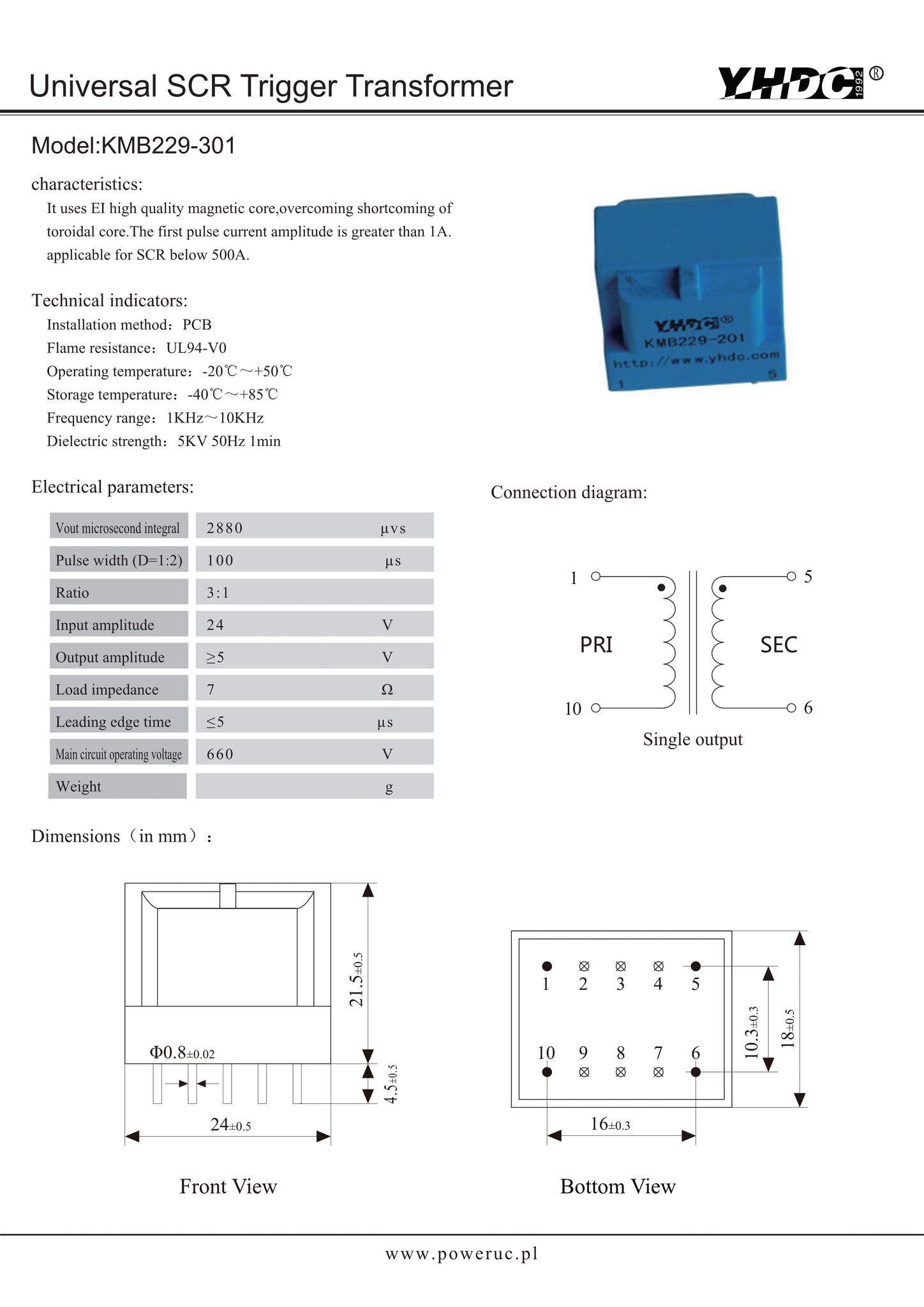

Electrical Parameters:

DOWNLOAD
