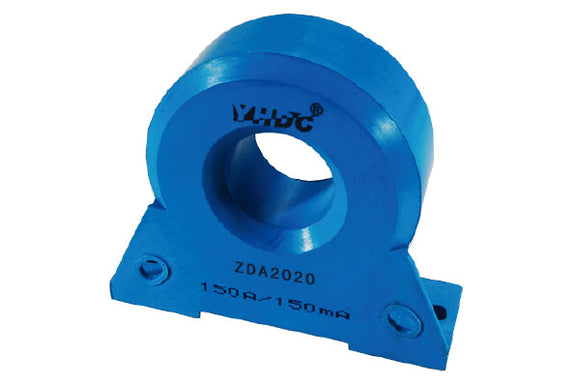

DC leakage current transducer ZDA2020 Rated input 10mA 20mA 50mA 100mA 500mA 1A 1.5A 2A Rated output ±4V
DC leakage current transducer uses Flux gate theory to change the measured DC current to DC current proportional to the output of the current or voltage signal measuring module.Primary and secondary is high insulation.It usually output standard DC 4-20mA, DC0-5V, DC0-10V signal The standard signal can be gathered by many collection device, such as PLC,RTU,DAS card and so on.It is used in many current monitoring occasions.
Technical index:
Flame resistance: UL94-V0
Operating temperature: -10℃~+70℃
Storage temperature: -25℃~+70℃
Dielectric strength: 2.5KV 50Hz 1min
Overload capacity:8 times
Waterproof level: IP00(Terminal needs to be sealing treatment of IP44)

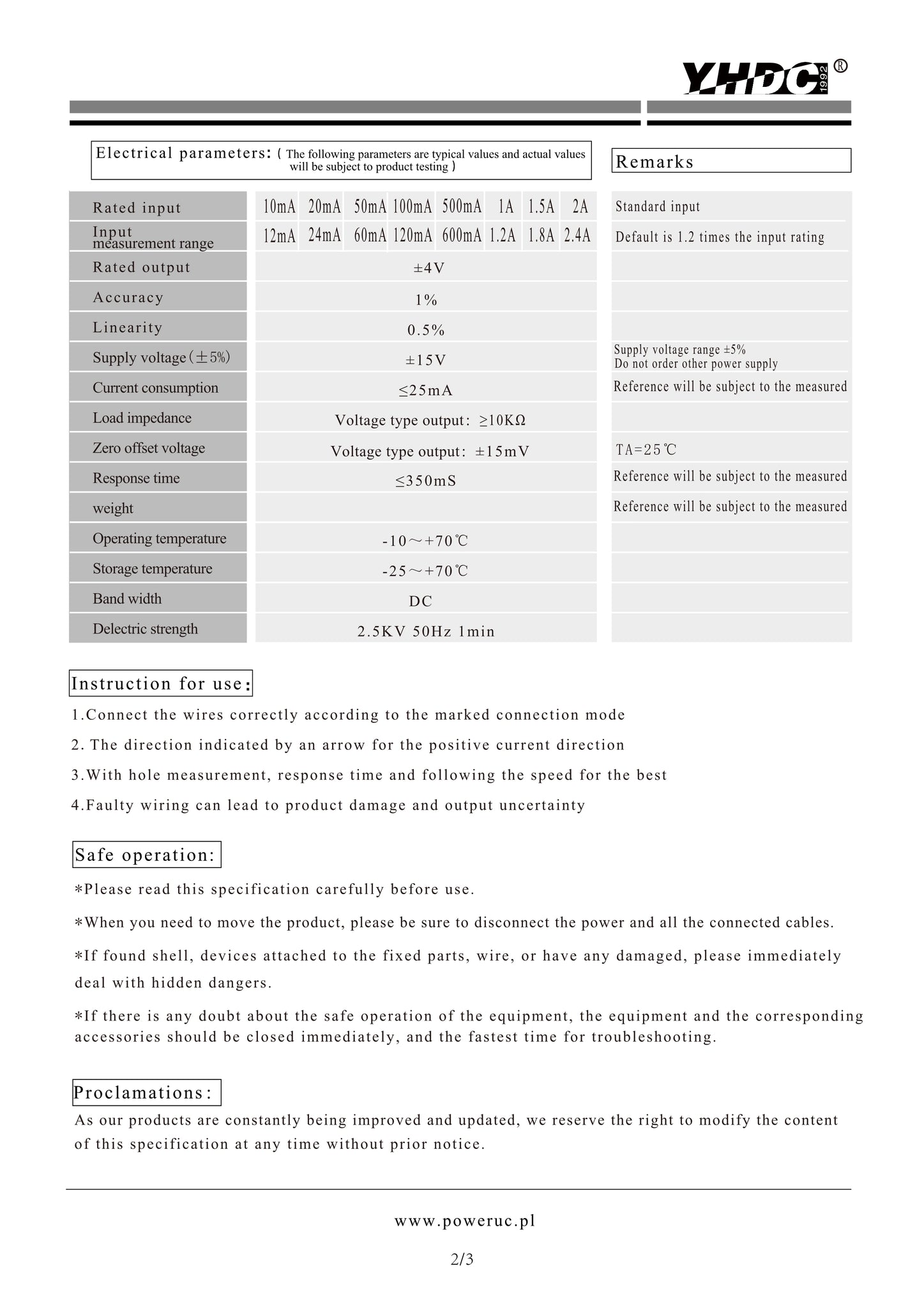

Electric parameters:
DOWNLOAD
We Also Recommend
Through core type precision current transformer TA17L Rated input 0-10A;0-20A;0-30A Rated output 0-10mA

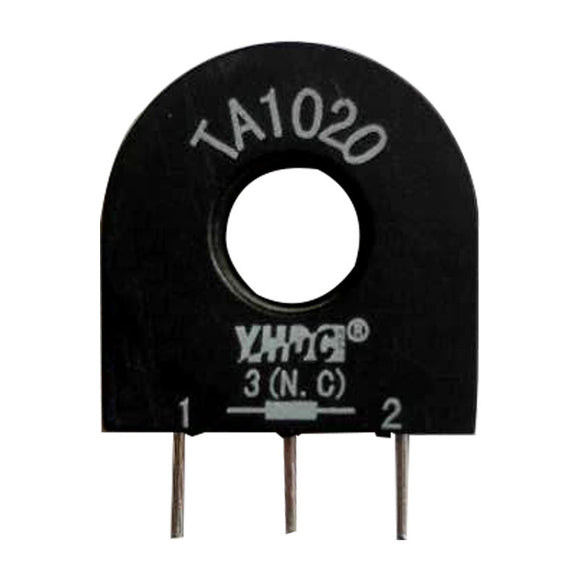

Through core type precision current transformer TA1020 Rated input 5A/10A/15A/20A Rated output 5mA/10mA/15mA/20mA
