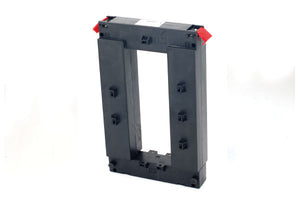

AC current transducer TST22080QT Rated input 1000A 1500A 2000A 2500A 3000A 3500A 4000A 5000A Rated output 4-20mA - PowerUC

AC current transducer TST22080QT Rated input 1000A 1500A 2000A 2500A 3000A 3500A 4000A 5000A Rated output 4-20mA

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

with built-in converter

External supply 924V dc
Primary current:
 55000A ac
Secondary current
 420mA dc
Busbar dimensions:
 20×3081×221

Application

4 to 20mA output that is linear to the primary input current. Direct interface with automatic control equipment or PLC. The current transmitter can be directly installed on the primary busbar.

Technical index:
Operating temperature -10℃~+50
Overloads (at room temperature) 1.5 In permanent
Accuracy
 ±1.5% reading (between 5... 110 % In)
Frequency
 50~60 Hz (line)
Highest voltage in the material
 0.72KV ac

DOWNLOAD
