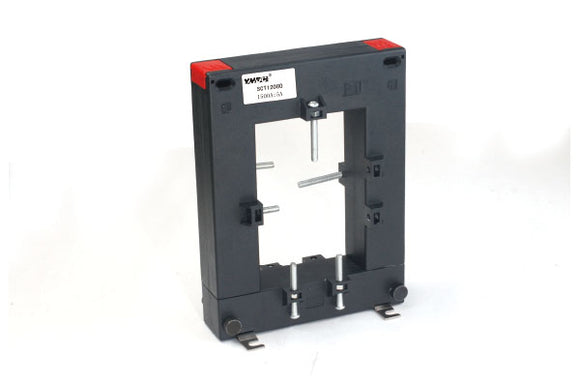

AC current transducer TST12080QT Rated input 500A 600A 800A 1000A 1500A 2000A 2500A Rated output 4-20mA - PowerUC

AC current transducer TST12080QT Rated input 500A 600A 800A 1000A 1500A 2000A 2500A Rated output 4-20mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

with built-in converter

External supply： 9～24V dc
Primary current:： 5～5000A ac
Secondary current： 4～20mA dc
Busbar dimensions:： 20×30～81×221

Application：
Used in power lines to obtain a current proportional to the primary current rated at
4～20 mA in the secondary.
Recommended in scenarios where the process signal must be proportional to the current of an automated system or PLC and the
installation's power supply can not be interrupted to install a closed entrance bar transformer.

Technical index:
Operating temperature： -10℃～+70℃
Overloads (at room temperature)： 1.5 In permanent
Accuracy： ±1.5% reading (between 5... 110 % In)
Frequency： 50~400 Hz (line)
Highest voltage in the material ： 0.72KV ac
