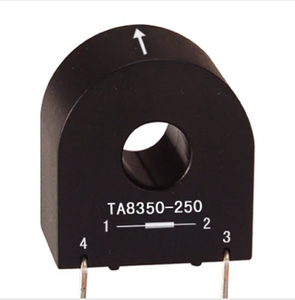

Through core type precision current transformer TA8350-250 Rated input 0-60A Rated output 0-24mA - PowerUC

Through core type precision current transformer TA8350-250 Rated input 0-60A Rated output 0-24mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
Epoxy resin encapsulated, mini outline size, fully enclosed.

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: ≥3.5KV 50Hz 1min

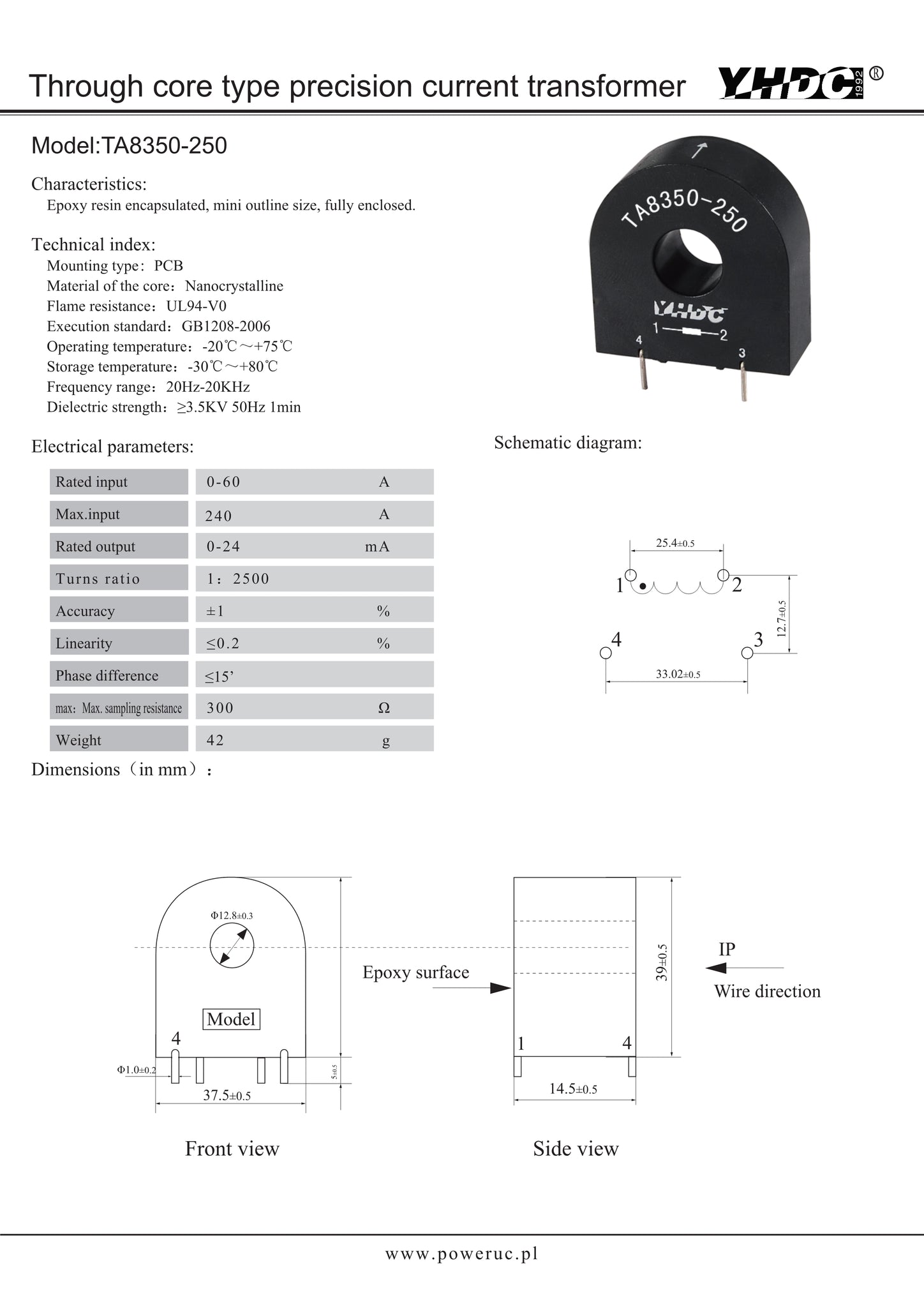

Electrical Parameter:
