Through core type precision current transformer TA8348S-250 Rated input 0-20A Rated output 0-8mA - PowerUC

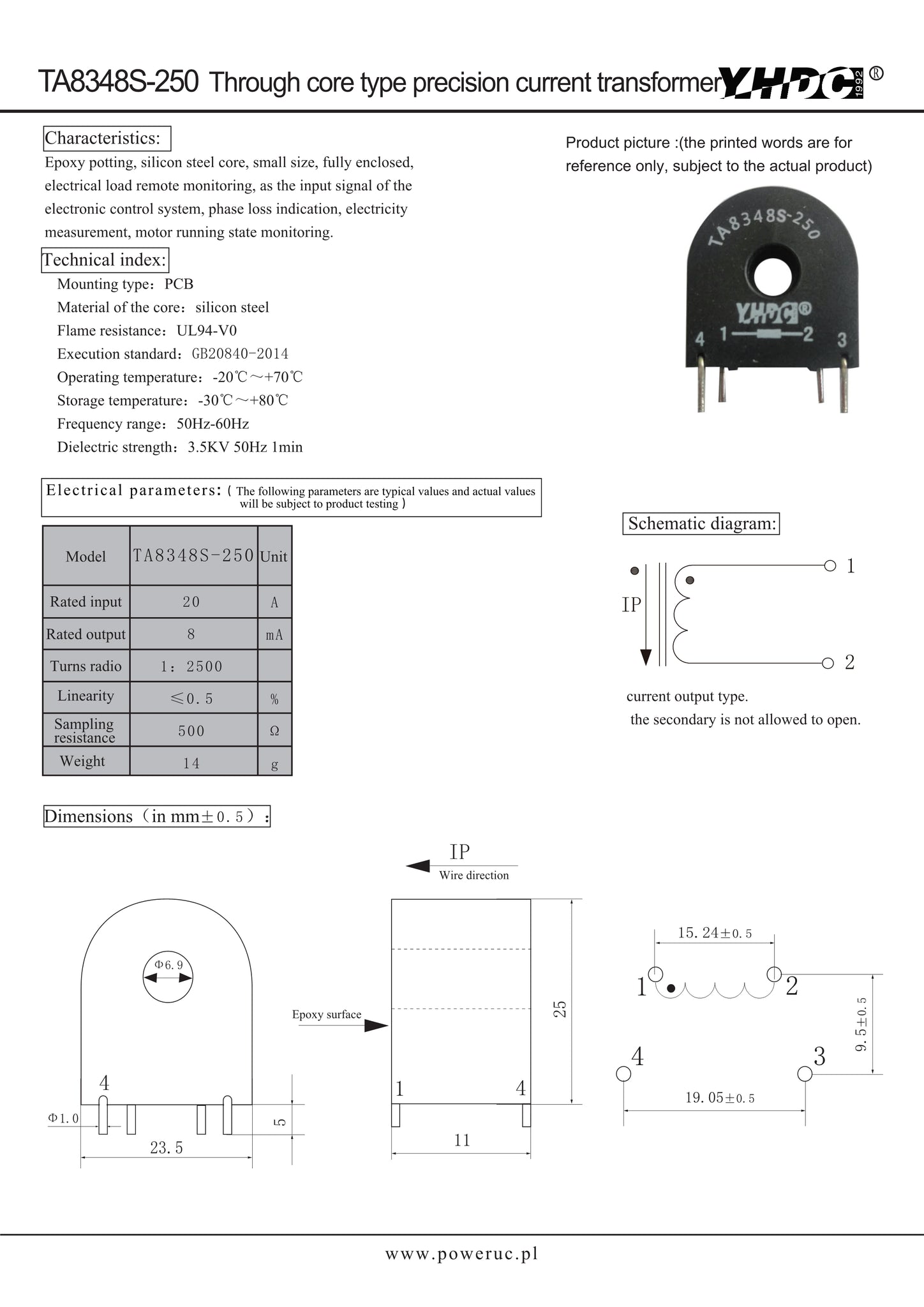

Through core type precision current transformer TA8348S-250 Rated input 0-20A Rated output 0-8mA

PowerUC

Shipping calculated at checkout.
Only 2 left!

Characteristics:

Epoxy potting, silicon steel core, small size, fully enclosed, electrical load remote monitoring, as the input signal of the electronic control system, phase loss indication, electricity measurement, motor running state monitoring.

Technical Index:
Mounting type: PCB
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameter:

DOWNLOAD
